45° Magic bend 60 FT

45° Magic bend 60 FT

Type RBM 45 615 FT | Item no. 6041062 | EAN 4012195881612

Show all variants
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

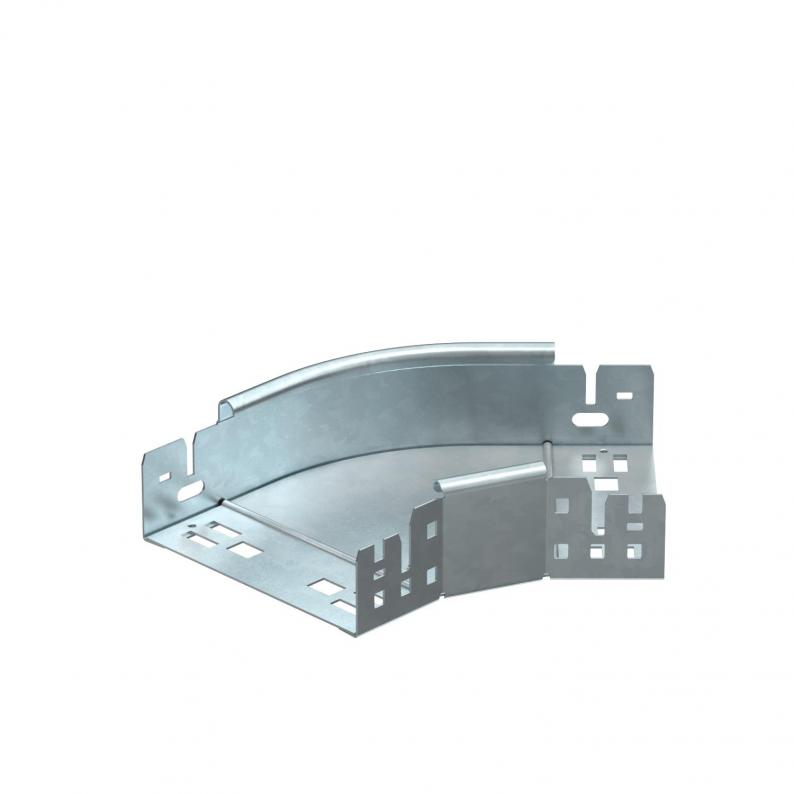

45° bend with quick connector system. For all cable tray types of 60 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 60 mm
  • BET-tested to DIN EN 61537

Technical data

Dimensions

Width150 mm
Height60 mm
Dimension B150 mm

Technical data

Maintain electrical functionsyes
Side perforationno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,25 mm
Mounting perforation in baseno
NATO hole patternno
Bend (angle)45°
Change of directionHorizontal
Dimension60x150
SurfaceHot-dip galvanised
MaterialSteel
Type of connector, cable support systemClick fastening

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

Width
RBM 45 615 FT
Item no.
6041062
Width
150
Surface
Hot-dip galvanised
Material
Steel
RBM 45 630 FT
Item no.
6041066
Width
300
Surface
Hot-dip galvanised
Material
Steel
RBM 45 640 FT
Item no.
6041068
Width
400
Surface
Hot-dip galvanised
Material
Steel
RBM 45 650 FT
Item no.
6041070
Width
500
Surface
Hot-dip galvanised
Material
Steel
RBM 45 660 FT
Item no.
6041072
Width
600
Surface
Hot-dip galvanised
Material
Steel
