45° Magic bend 60 FS

45° Magic bend 60 FS

Type RBM 45 610 FS | Item no. 6041040 | EAN 4012195881537

Show all variants
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

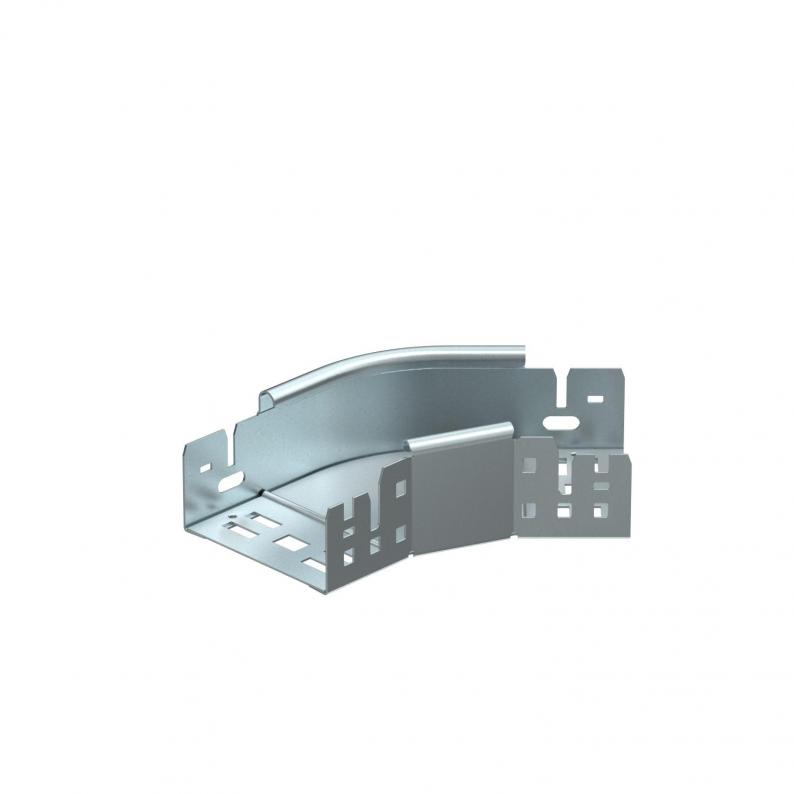

45° bend with quick connector system. For all cable tray types of 60 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm

Technical data

Maintain electrical functionsyes
Side perforationno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,25 mm
Mounting perforation in baseno
NATO hole patternno
Bend (angle)45°
Change of directionHorizontal
Dimension60x100
SurfaceStrip galvanized
MaterialSteel
Fire protectionUse of fire protection ceilings
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate1,6783 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

Width
RBM 45 610 FS
Item no.
6041040
Width
100
Surface
Strip galvanized
Material
Steel
RBM 45 615 FS
Item no.
6041042
Width
150
Surface
Strip galvanized
Material
Steel
RBM 45 620 FS
Item no.
6041044
Width
200
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBM 45 630 FS
Item no.
6041046
Width
300
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBM 45 640 FS
Item no.
6041048
Width
400
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBM 45 650 FS
Item no.
6041050
Width
500
Surface
Strip galvanized
Material
Steel
RBM 45 660 FS
Item no.
6041052
Width
600
Surface
Strip galvanized
Material
Steel
Colour
zinc
