45° Magic bend 35 FS

45° Magic bend 35 FS

Type RBM 45 310 FS | Item no. 6041000 | EAN 4012195877615

Show all variants
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

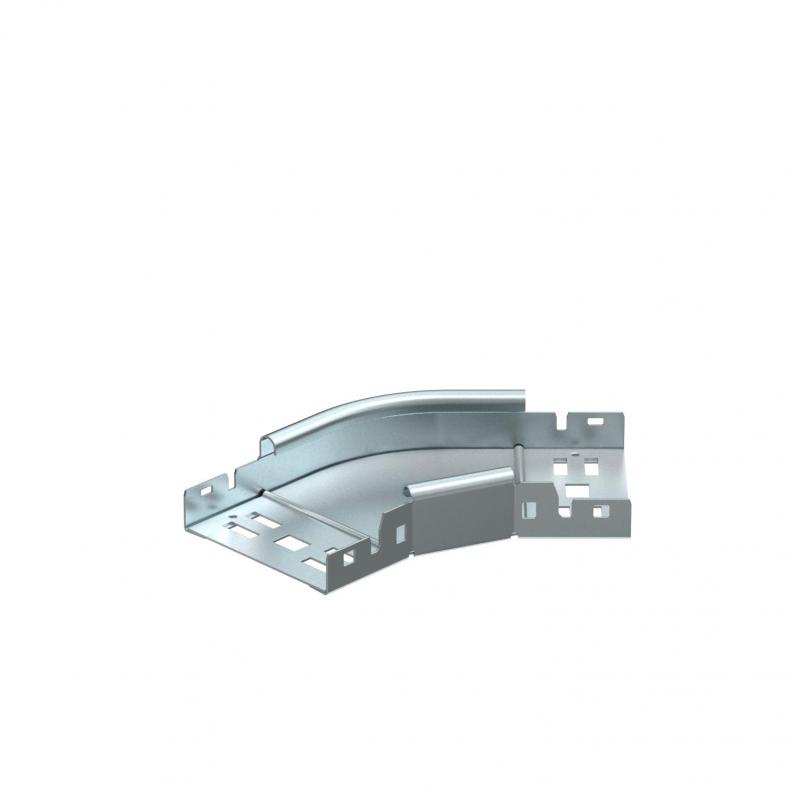

45° bend with quick connector system. For all cable tray types of 35 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

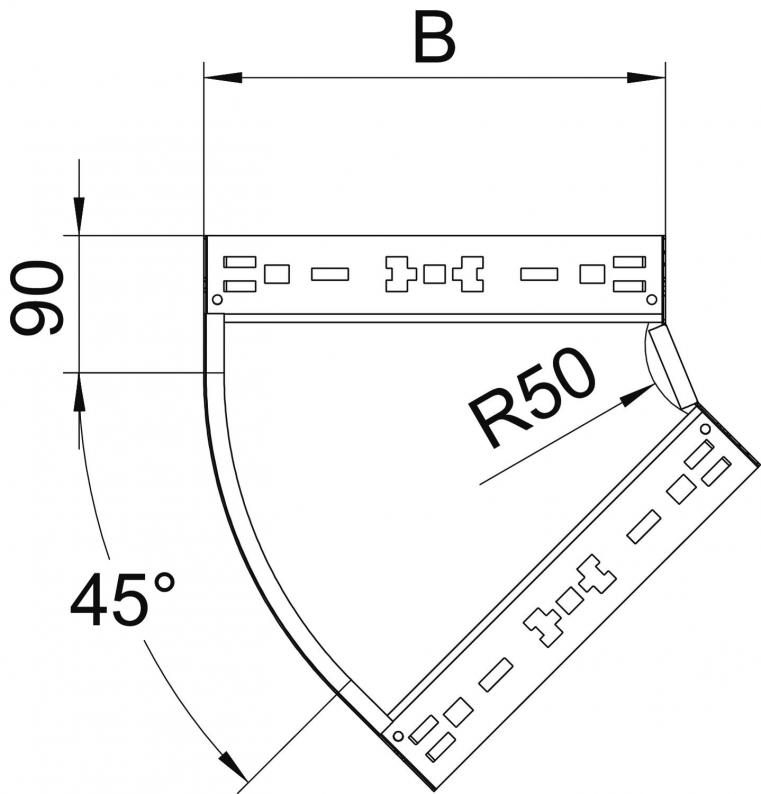

Dimensions

Width100 mm
Height35 mm
Dimension B100 mm
Dimension R50 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,25 mm
Mounting perforation in baseno
NATO hole patternno
Bend (angle)45°
Change of directionHorizontal
Dimension35x100
SurfaceStrip galvanized
MaterialSteel
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate1,4536 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

Width
RBM 45 310 FS
Item no.
6041000
Width
100
Surface
Strip galvanized
Material
Steel
RBM 45 320 FS
Item no.
6041002
Width
200
Surface
Strip galvanized
Material
Steel
RBM 45 330 FS
Item no.
6041004
Width
300
Surface
Strip galvanized
Material
Steel
