45° bend 85 FS
Type RB 45 830 FS | Item no. 7000510 | EAN 4012196818532
Item no. / Type
7000510 / RB 45 830 FS
Surface
Strip galvanized
Material
Steel
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
Description

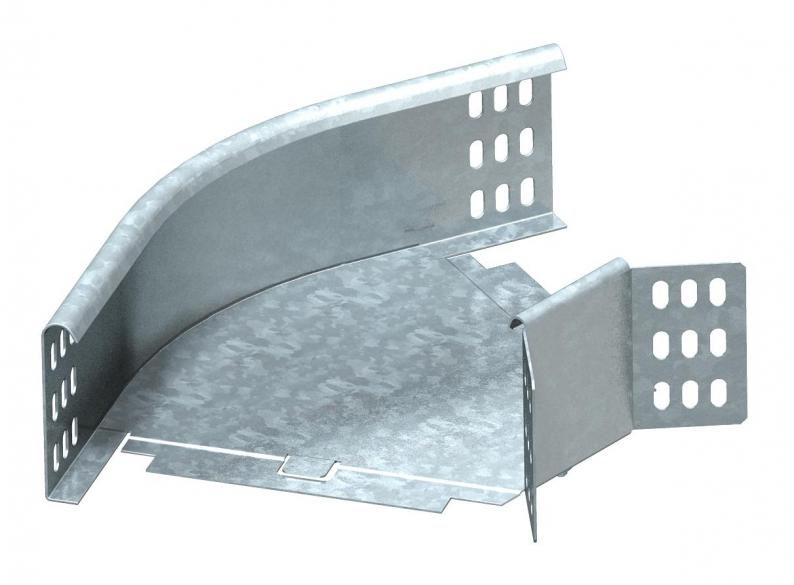

45° bend, horizontal, for all cable tray types of 85 mm side height.
The fitting is shipped in an unmounted state. The WKV 85 angle connector is designed for 90° bends and can be adjusted to 45° on site.
Including appropriate fastening material.
Technical data

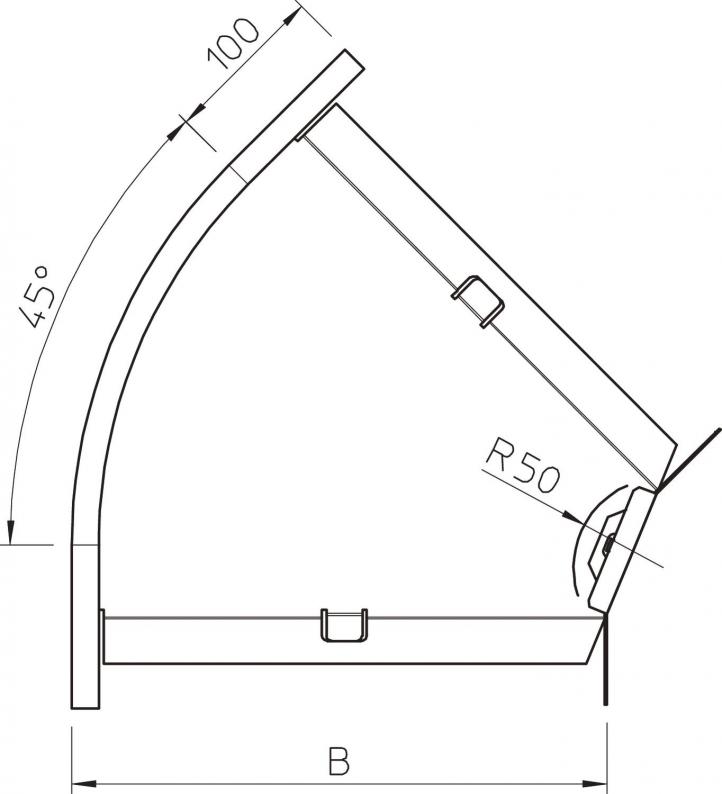

Dimensions
| Width | 300 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 300 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 45° |
| Change of direction | Horizontal |
| Dimension | 85x300 |
| Surface | Strip galvanized |
| Material | Steel |
| Type of connector, cable support system | Screwed |
