VARIO earthing terminal for reinforced steels
Type 1814 FT D14 | Item no. 5014471 | EAN 4012196656134
Item no. / Type
5014471 / 1814 FT D14
Smallest selling unit: 25 piece
25piece
Description
• For reinforced steel with 6–14 mm diameter and round and flat conductors
• Rapid installation using elongated open slot and only one M10 bolt
• Rapid installation using elongated open slot and only one M10 bolt
Technical data
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Multipurpose connection clamp |
| Suitable for connection | Miscellaneous |
| Earthing connection diameter | Other |
| Lightning current carrying capacity | N/50 kA |
| Round conductor diameter, conductor 1, max. | 10 mm |
| Round conductor diameter, conductor 1, min. | 8 mm |
| Flat conductor width, conductor 1, max. | 30 mm |
| Flat conductor width, conductor 1, min. | 20 mm |
| Round conductor diameter, conductor 2, max. | 14 mm |
| Round conductor diameter, conductor 2, min. | 8 mm |
| Fit | FL30x3-4mm /Rd 8-10 x Rd 6-14 mm |

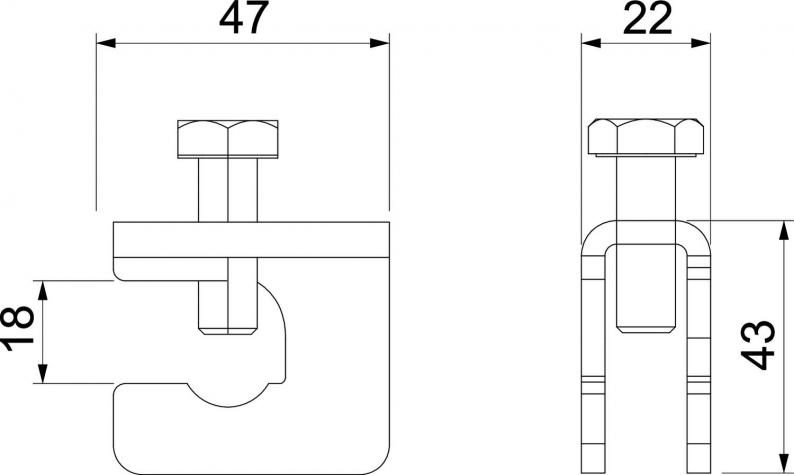

| Dimension | 47x22x55 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,521 kg CO2e / 1 Piece |
