Fastening clip 822, heavy-duty, A4
Item no. 1013861 | EAN 4012195911746
- Product description
-

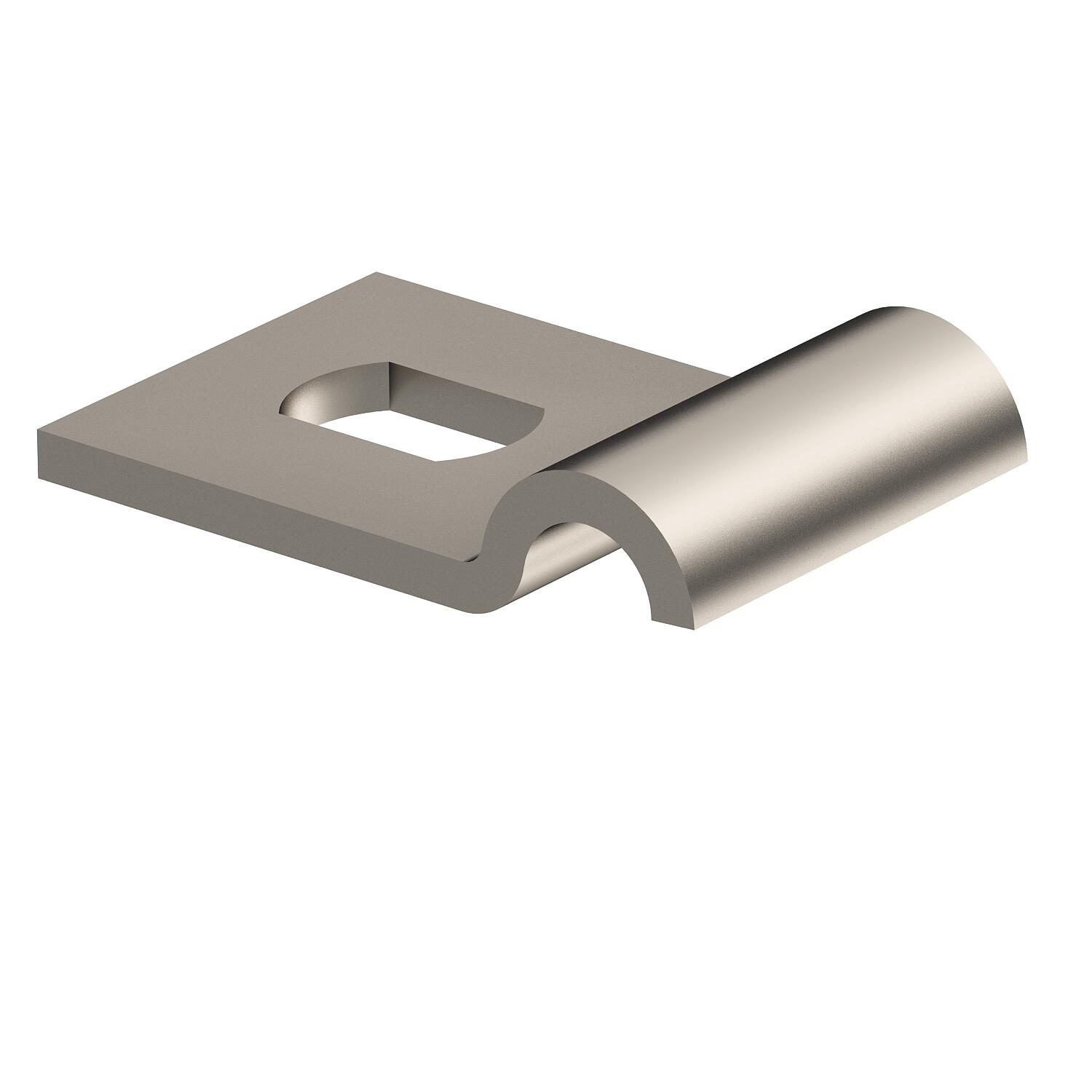

Product descriptionFastening clip, single-lobe, 6 mm
-
- Technical data
-
Technical data

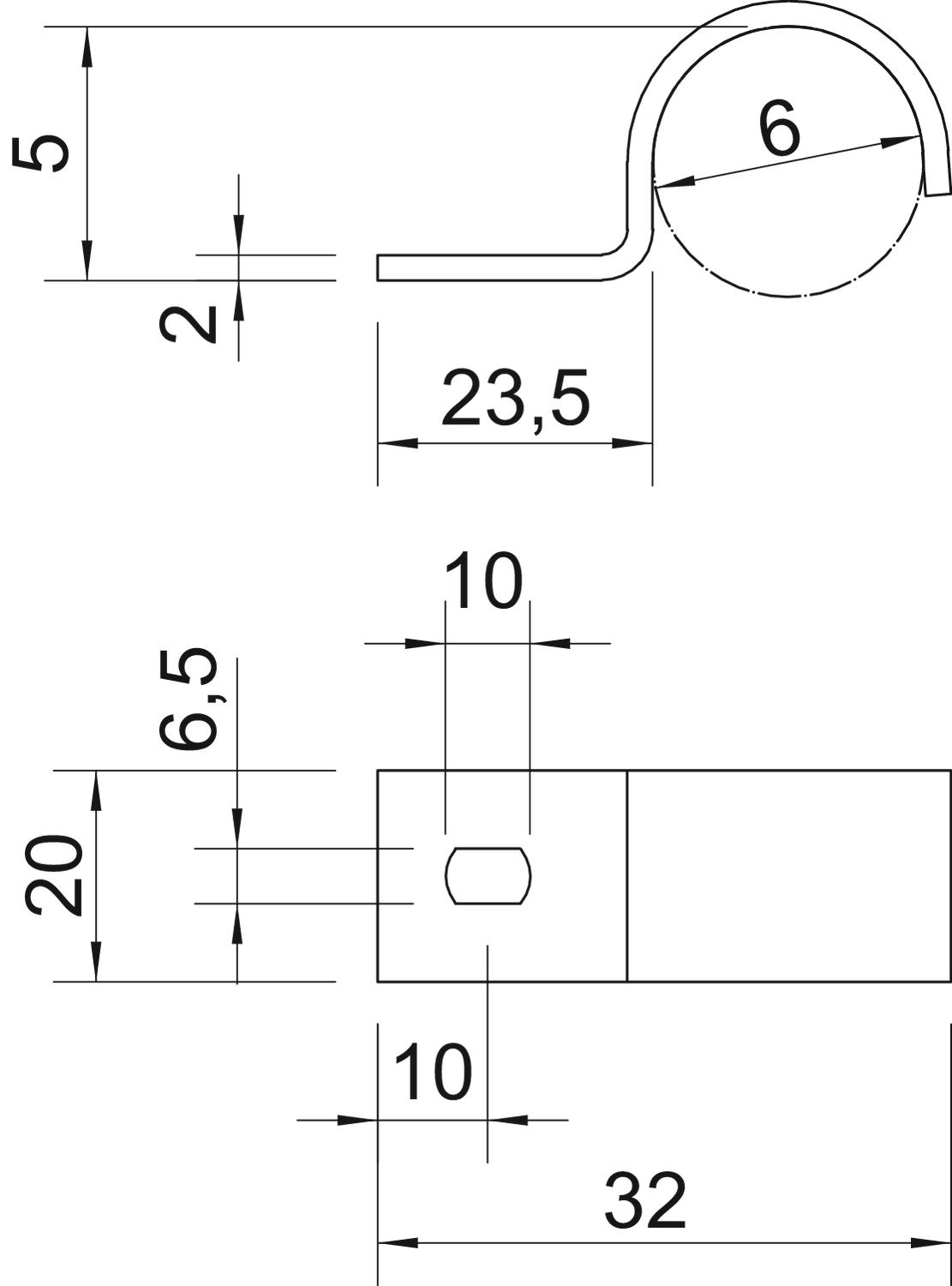

CO2 Footprint (GWP) Cradle-to-Gate 0,0527 kg CO₂e / 1 Piece Dimension 6mm Dimension A 10 mm Dimension b 20 mm Dimension D 6 mm Dimension H 5 mm Dimension L 23,5 mm Dimension L1 32 mm Dimension t 2 mm Distance to the wall no Fastening type Screw hole For diameter 6 Halogen-free yes Height 5 mm Hole size 6,5 x 10 mm Length 32 mm Material Stainless steel Material thickness 2 mm Nominal diameter 6 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Bright, treated UV-resistant yes Version for Single-lobe Width 20 mm - All types
- Downloads
-
Data sheet 822 6 A4 / 1013861 , 0.18MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 822 6 A4 / 1013861 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 822 6 A4 / 1013861 , 0.09MB , pdfREACH Declaration of conformity 822 6 A4 / 1013861 , 0.12MB , pdfRoHS Declaration of conformity 822 6 A4 / 1013861 , 0.13MB , pdf
