- Product description
-
Product description

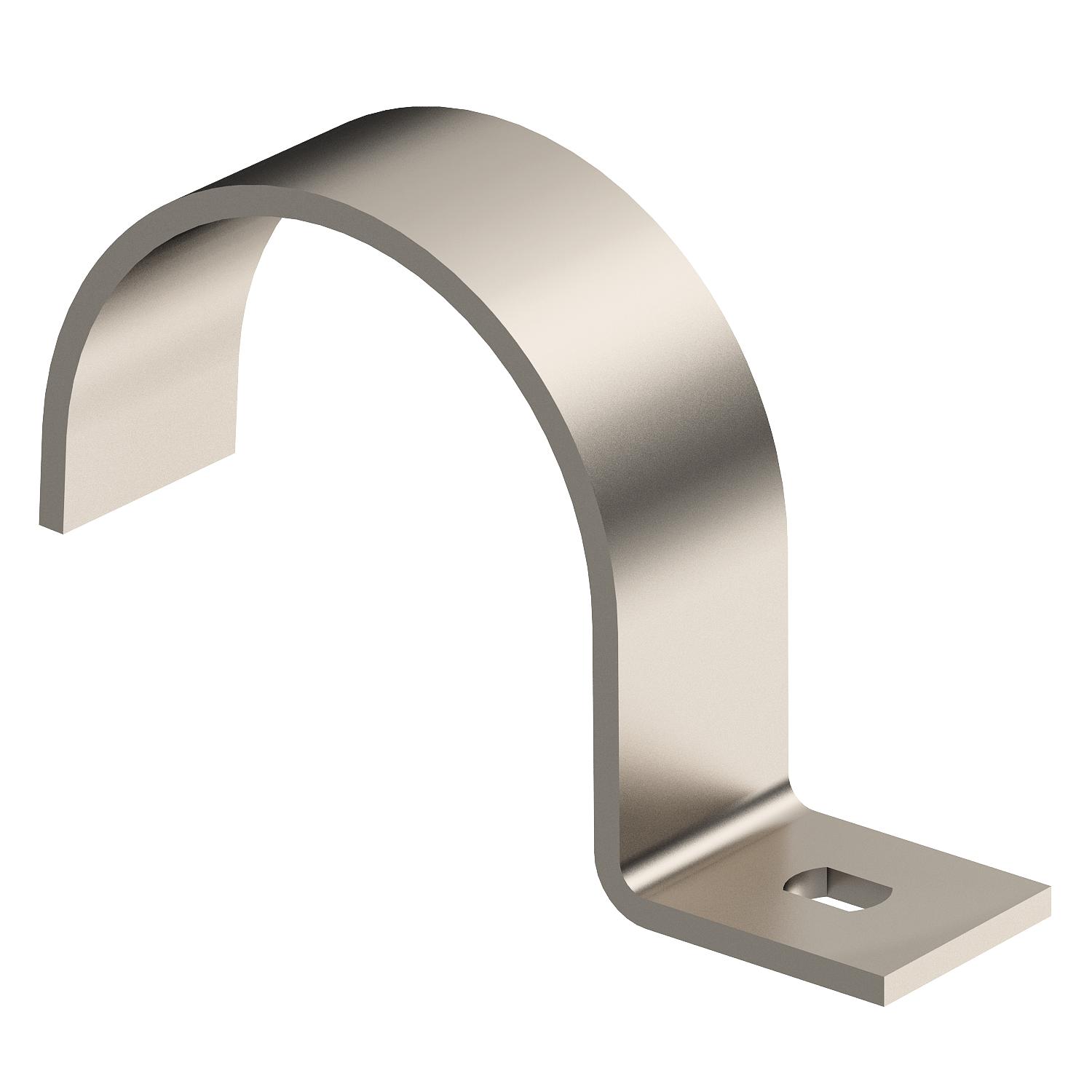

Single-lobe fastening clip for cables and pipes.
- Technical data
-
Technical data
Dimension 10mm Distance to the wall no Fastening type Screw hole For diameter 10 Halogen-free yes Hole size 6,5 x 10 mm Material Stainless steel Material thickness 2 mm Nominal diameter 10 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Bright, treated UV-resistant yes Version for Single-lobe Dimensions
Dimension A 10 mm Dimension b 20 mm Dimension D 10 mm Dimension H 9 mm Dimension L 23,5 mm Dimension L1 36 mm Dimension t 2 mm Height 9 mm Length 36 mm Width 20 mm - All types
- Downloads
-
Data sheet 822 10 A4 / 1013865 , 0.31MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity 822 10 A4 / 1013865 , 0.06MB , pdfREACH Declaration of conformity 822 10 A4 / 1013865 , 0.12MB , pdfRoHS Declaration of conformity 822 10 A4 / 1013865 , 0.13MB , pdf
