Fastening clip 822, heavy duty, A4
Item no. 1013911 | EAN 4012195911890
- Product description
-
Product descriptionFastening clip, single-lobe, 40 mm
-
- Technical data
-
Technical data

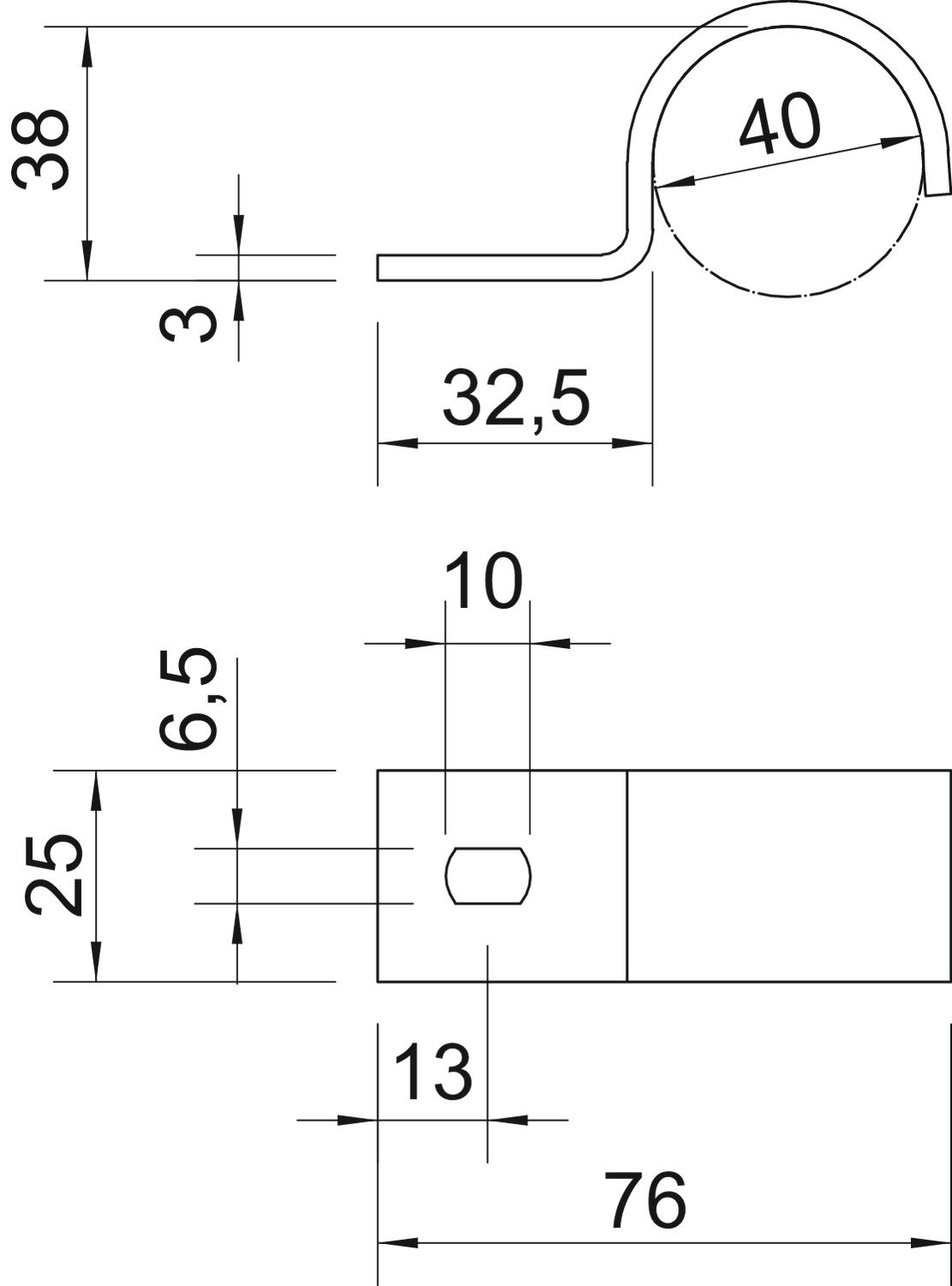

CO2 Footprint (GWP) Cradle-to-Gate 0,4586 kg CO₂e / 1 Piece Dimension 40mm Dimension A 13 mm Dimension b 25 mm Dimension D 40 mm Dimension H 38 mm Dimension L 32,5 mm Dimension L1 76 mm Dimension t 3 mm Distance to the wall no Fastening type Screw hole For diameter 40 Halogen-free yes Height 38 mm Hole size 6,5 x 10 mm Length 76 mm Material Stainless steel Material thickness 3 mm Nominal diameter 40 mm Number of cables/pipes 1 Plastic-covered no Size M40 Suitable in fire protection area no Surface Bright, treated UV-resistant yes Version for Single-lobe Width 25 mm - All types
- Downloads
-
Data sheet 822 40 A4 / 1013911 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 822 40 A4 / 1013911 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 822 40 A4 / 1013911 , 0.09MB , pdfREACH Declaration of conformity 822 40 A4 / 1013911 , 0.12MB , pdfRoHS Declaration of conformity 822 40 A4 / 1013911 , 0.13MB , pdf
