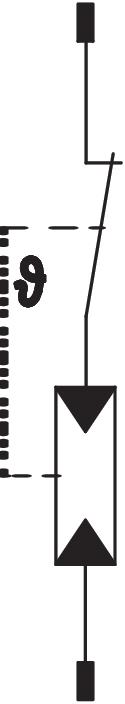

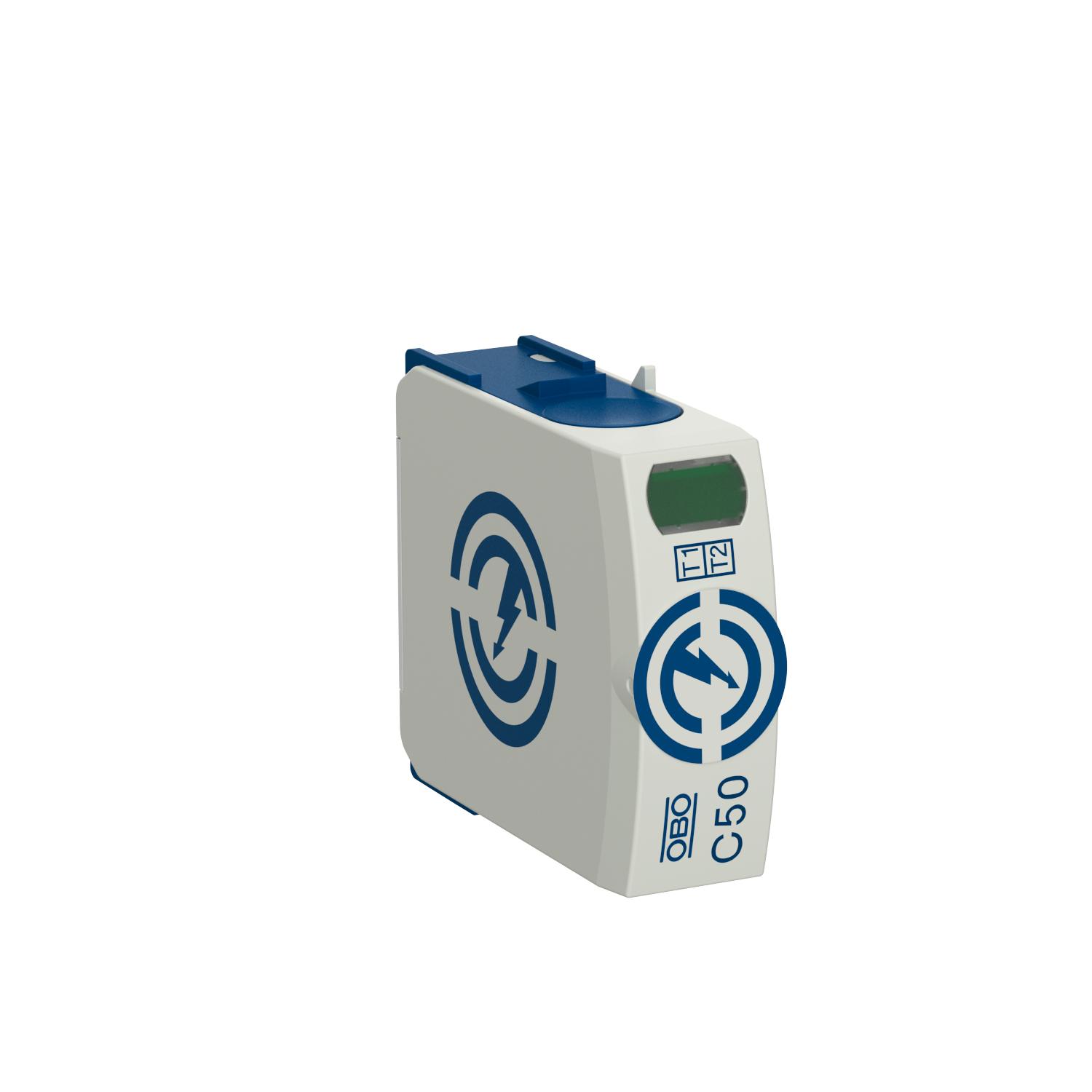

Technical data
Approvals
VDE
Blow-out
no
Conductor cross-section, flexible (fine-wire), max.
2
AWG
Conductor cross-section, flexible (fine-wire), max.
35
mm²
Conductor cross-section, flexible (fine-wire), min.
1,5
mm²
Conductor cross-section, flexible (fine-wire), min.
16
AWG
Conductor cross-section, rigid (single-wire/multiwire), max.
35
mm²
Conductor cross-section, rigid (single-wire/multiwire), max.
2
AWG
Conductor cross-section, rigid (single-wire/multiwire), min.
16
AWG

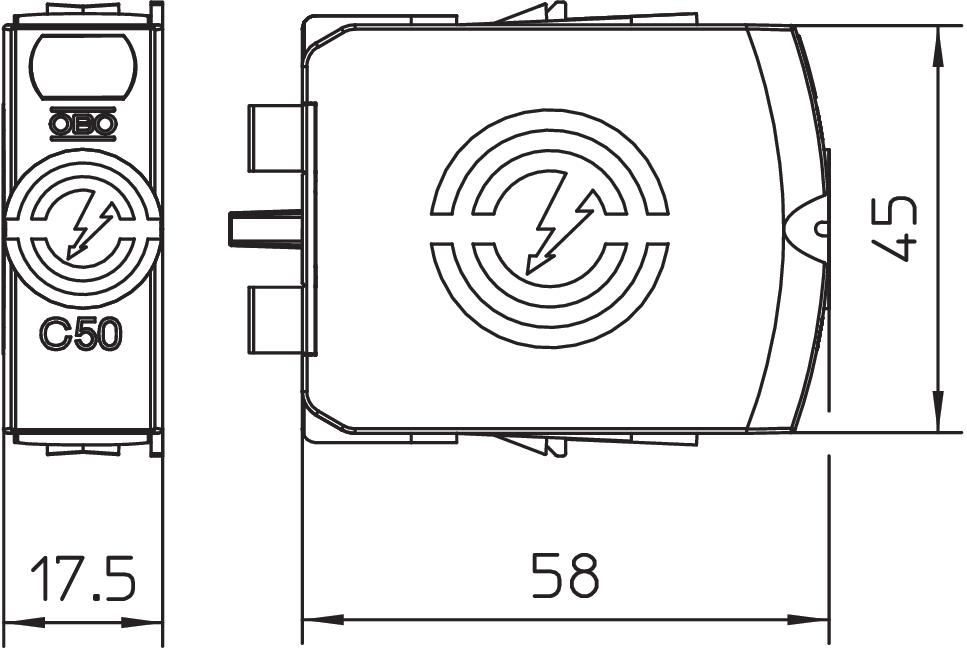

Dimension
255V
Follow current quenching capacity (eff) [N-PE]
0,1
kA
Housing material
PA UL 94 V-0
Installation type
DIN rail 35 mm
Integrated back-up fuse
no
Lightning surge current (10/350 μs)
50
kA
Lightning surge current (10/350)
50
kA
Maximum continuous voltage AC
255
Maximum discharge current (8/20 μs)
50
kA
Maximum discharge current (8/20 μs) [L-N]
50
kA
Maximum discharge current (8/20 μs) [N-PE]
80
kA
Nominal discharge current (8/20 µs)
30
kA
Nominal discharge current (8/20 µs) [L-N]
30
kA
Nominal discharge current (8/20 µs) [N-PE]
50
kA
Operating temperature, max.
80
°C
Operating temperature, min.
-40
°C
Pole number
1
Pole version
N/PE
Protection rating
IP20
Remote signalling
no
Response time
<25
ns
Signalling on device
Visual
SPD to EN 61643-11
Type 1+2
SPD to IEC 61643-1
Class I+II
TN-C-S network form
yes
TN-S network form
yes
Torque
4
Nm
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms
1200
V
TT network form
yes
Connectivity options
Conductor cross-section, rigid (single-wire/multiwire), min.
1,5
mm²
Short-circuit resistance for max. mains-side overcurrent protection
25 kA
