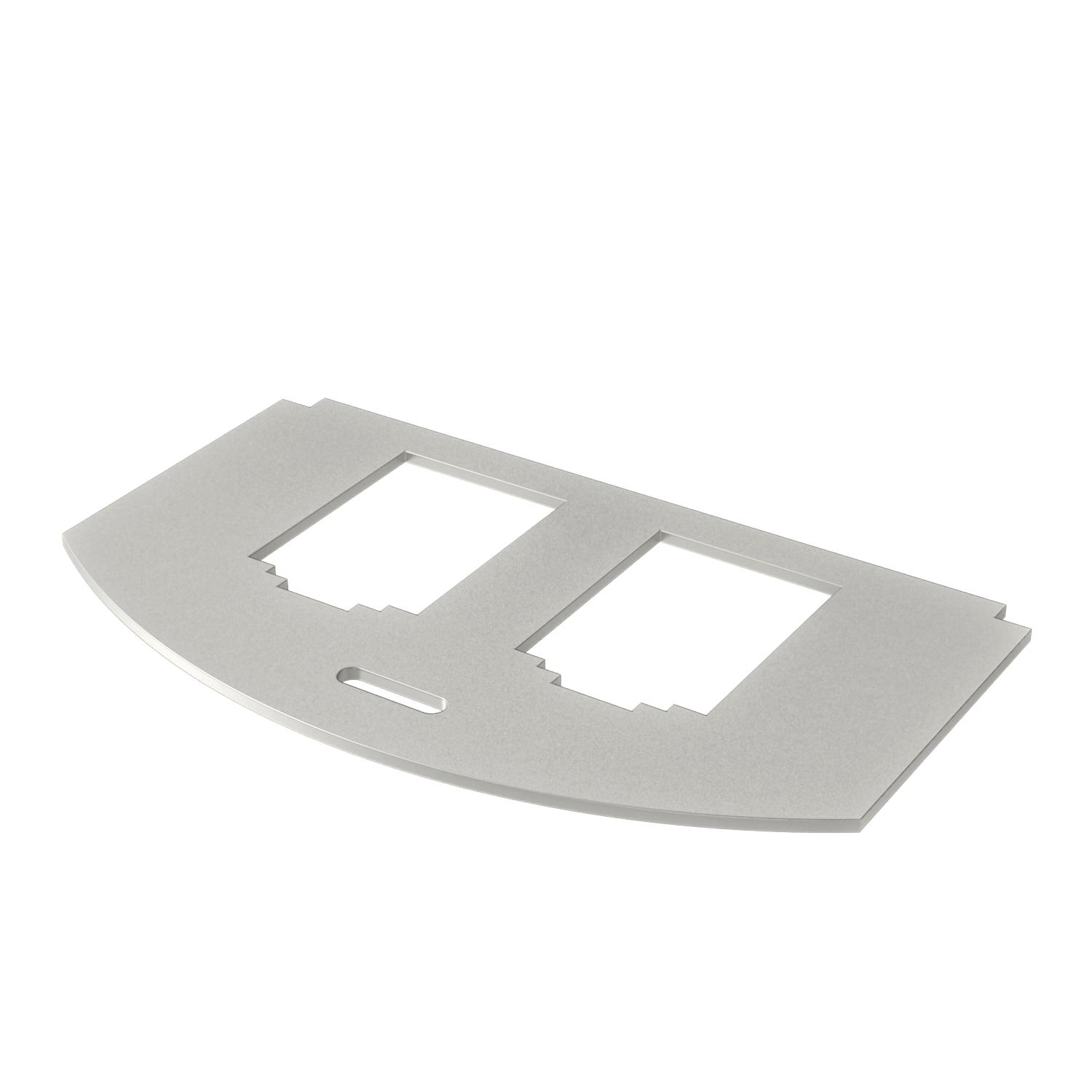

Mounting plate for data technology, type B
Item no. 7408804 | EAN 4012196460687
- Product description
-
Product descriptionMounting plate to accept two connection modules for data connection modules of the following types BTR: E-DAT; Dätwyler: MS and MS-N; Kerpen: VarioKeystone.

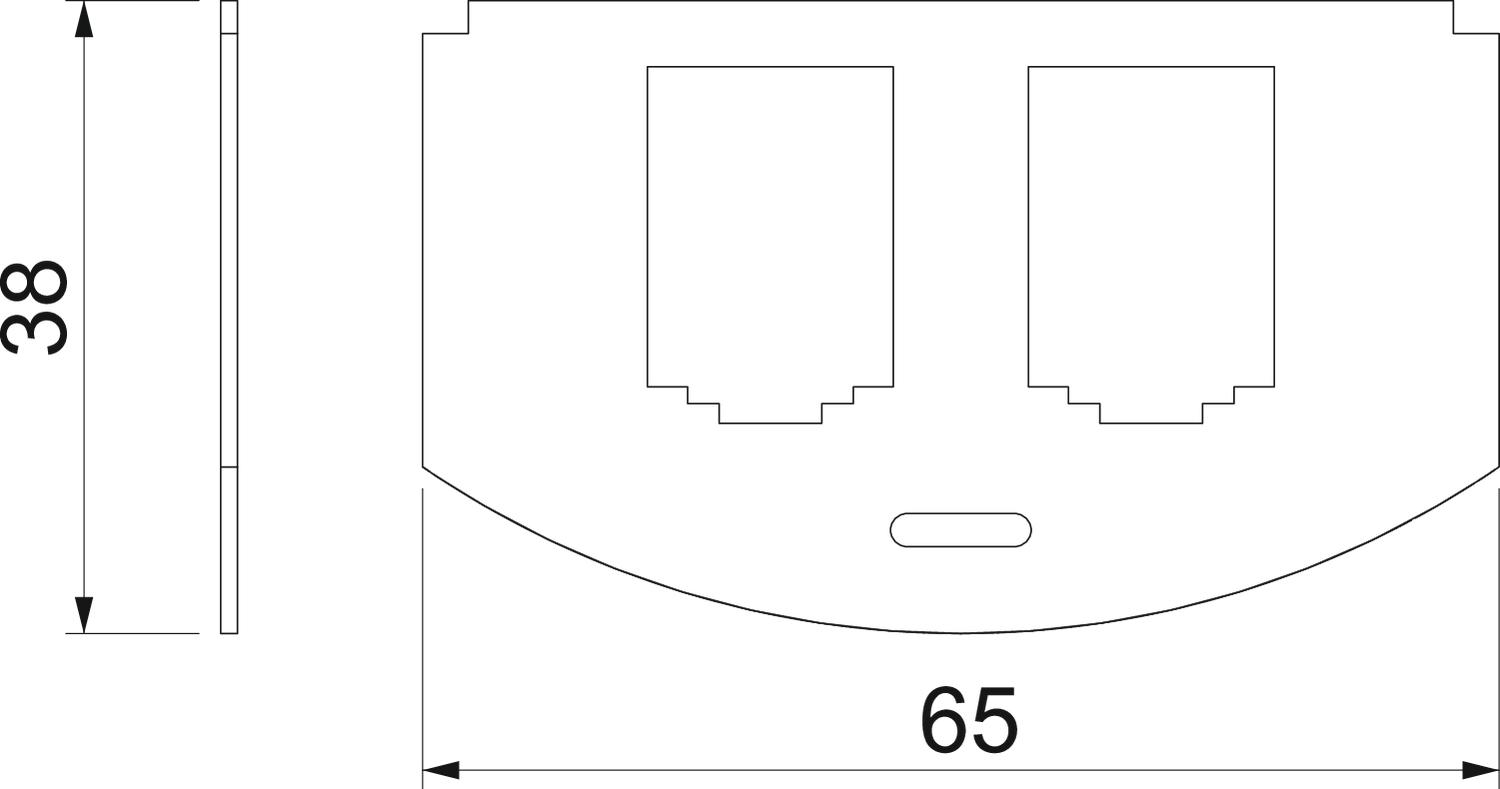

Dimensions of a mounting opening in mm: 19.35/21.55 x 14.85.
-
- Technical data
-
Technical data
Application Mounting box Blanking lid no CO2 Footprint (GWP) Cradle-to-Gate 0,212 kg CO2e / 1 Piece Device type Data technology Fastening type Lockable Installation technology Miscellaneous Labelling panel no Length 65 mm Material Stainless steel Number of installable devices 2 Number of single openings 2 suitable for data connection module Type B Suitable for labelling panel no Width 36 mm - All types
- Downloads
-
Data sheet MP R2 2B / 7408804 , 0.15MB , pdfBrochure GES R2 floor sockets , 2.10MB , pdfEU declaration of conformity MP R2 2B / 7408804 , 0.10MB , pdfREACH Declaration of conformity MP R2 2B / 7408804 , 0.12MB , pdfRoHS Declaration of conformity MP R2 2B / 7408804 , 0.13MB , pdfLabel approval VDE symbol approval, GES R2 , 0.19MB , pdfMounting instructions Floor socket GES R2 , 1.06MB , pdfMounting instructions Long instructions, floor socket GES R2 , 0.83MB , pdf
