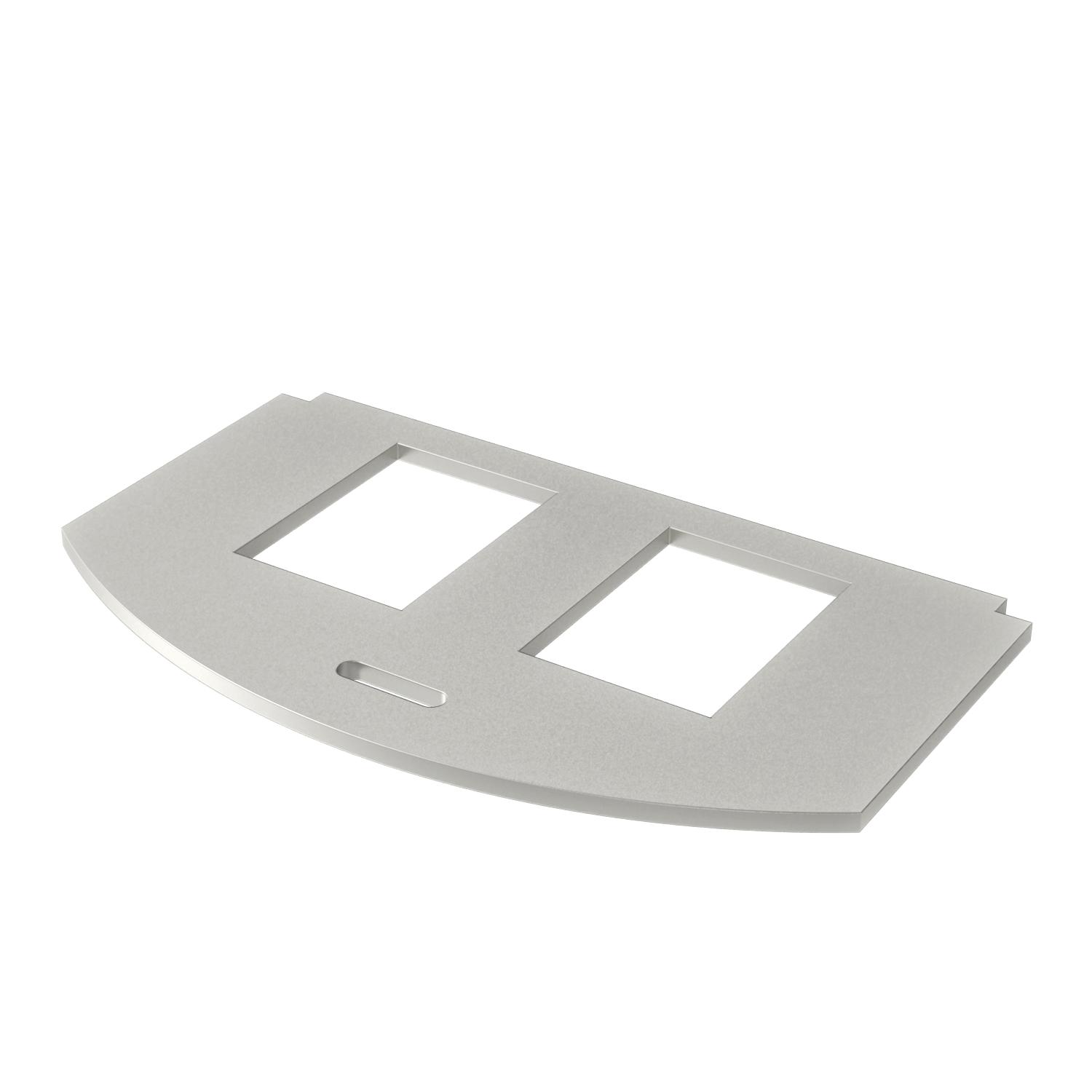

Mounting plate for data technology, type A

Item no. 7408802 | EAN 4012196460670

Product description
Product description
Mounting plate to accept two data connection modules of the following types: AMP TYCO: Standard 110Connect, SL Series 110Connect and Toolless, AMP-Twist; Brand-Rex: unshielded; GG45; TKM RJ MOD; Nexans: LANmark with Adapter-Clip; Siemon CAT6; 3M K6 and K10.
Dimensions of a mounting opening in mm: 20.10 x 14.80.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Application Mounting box
Blanking lid no
CO2 Footprint (GWP) Cradle-to-Gate 0,2058 kg CO2e / 1 Piece
Device type Data technology
Fastening type Lockable
Installation technology Miscellaneous
Labelling panel no

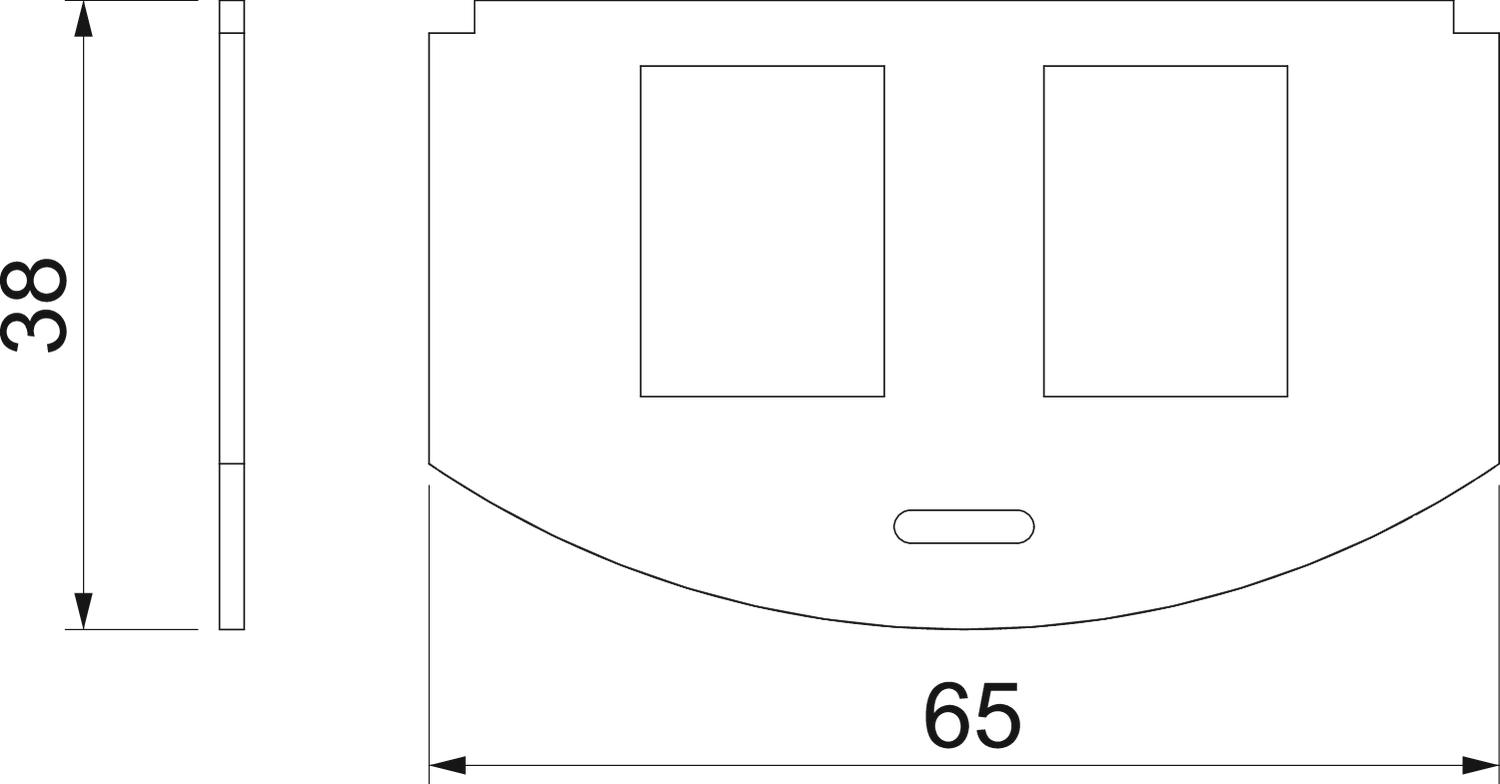

Length 65 mm
Material Stainless steel
Number of installable devices 2
Number of single openings 2
suitable for data connection module Type A
Suitable for labelling panel no
Width 36 mm
All types

All types

Types Number of installable devices suitable for data connection module Item no. Quantity SSU
MP R2 2A 2 Type A 7408802
1 piece
MP R2 2B 2 Type B 7408804
1 piece
MP R2 2C 2 Type C 7408806
1 piece
MP R2 2F 2 Type F 7408808
1 piece
MP R2 LE 1 Type LE 7408810
1 piece
