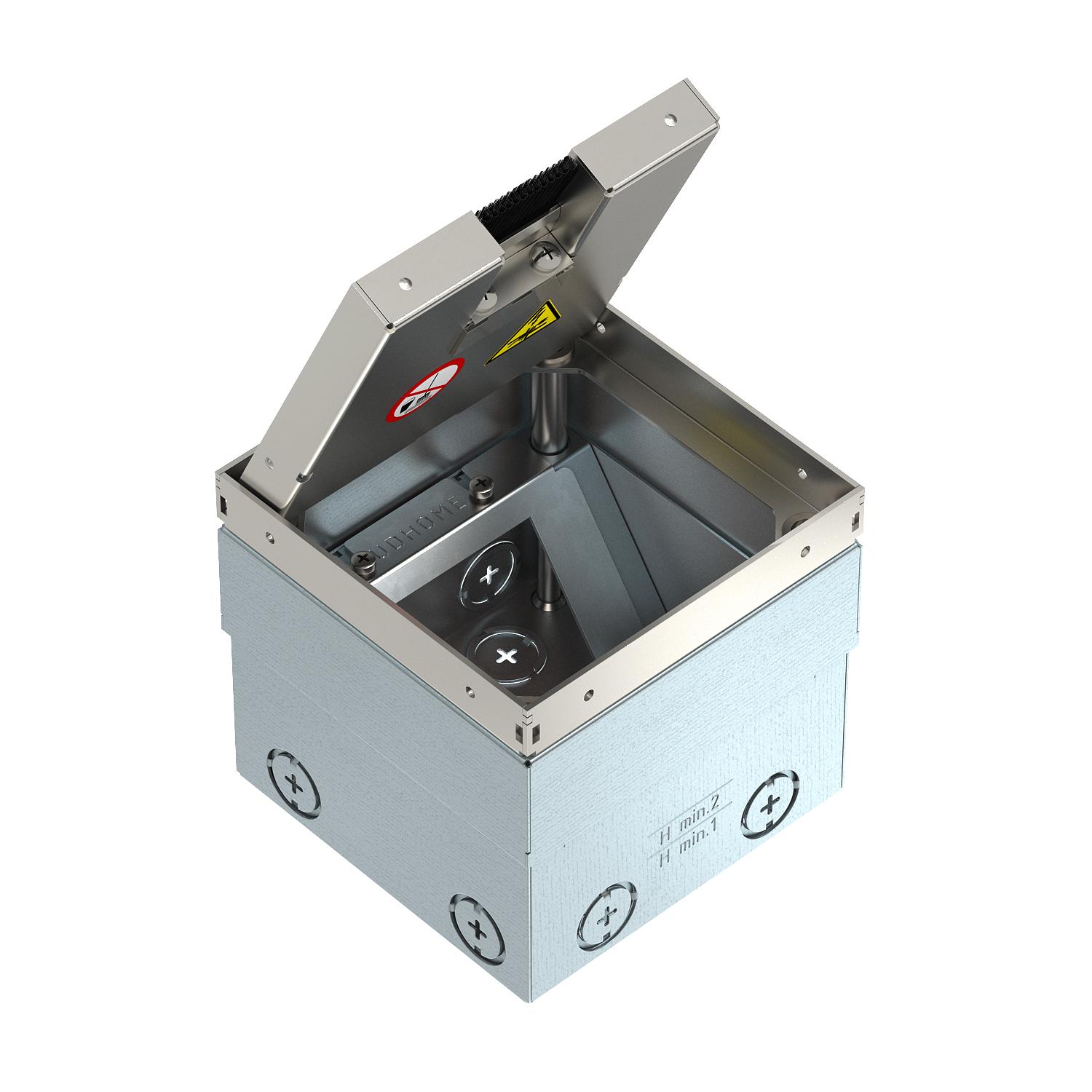

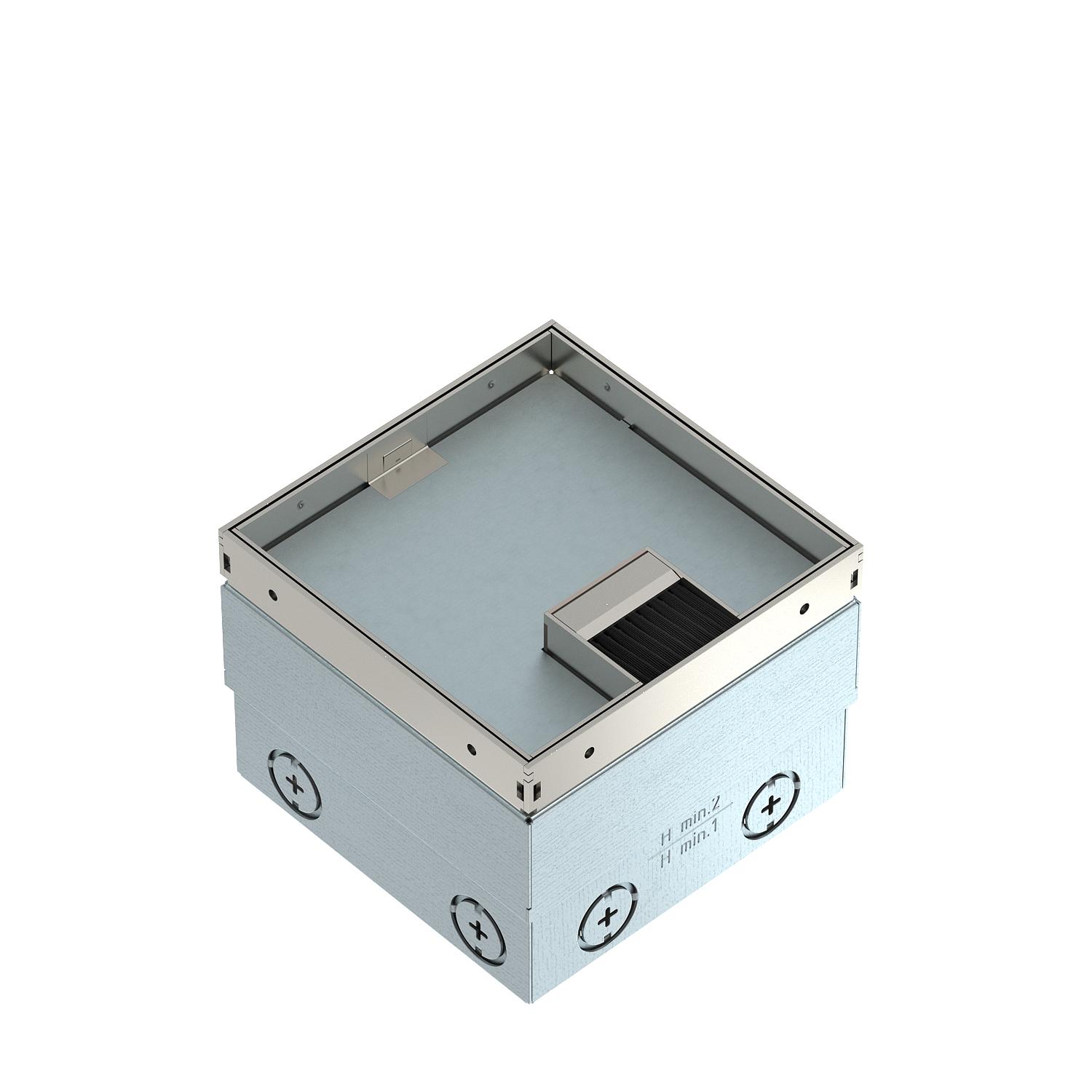

UDHOME2 floor socket, with brush bar, with floor covering recess, with FLF support, cover, stainless steel
Item no. 7427042 | EAN 4012196793969
- Product description
-
Product descriptionSquare installation unit for use in dry-care cavity and screed floors in indoor areas.
Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 100 mm, the height adjustment range is +35 mm.
Flushfloor cable outlet through brush bar.
Device support made of galvanised sheet steel for one FLF 6/5 (or 2x FLF 3/5) and one FLF 3/5.
Cover, can be covered with floor covering, 15 mm
The load-bearing capacity of 15 kN is only guaranteed when in an unused state.
- Technical data
-
Technical data

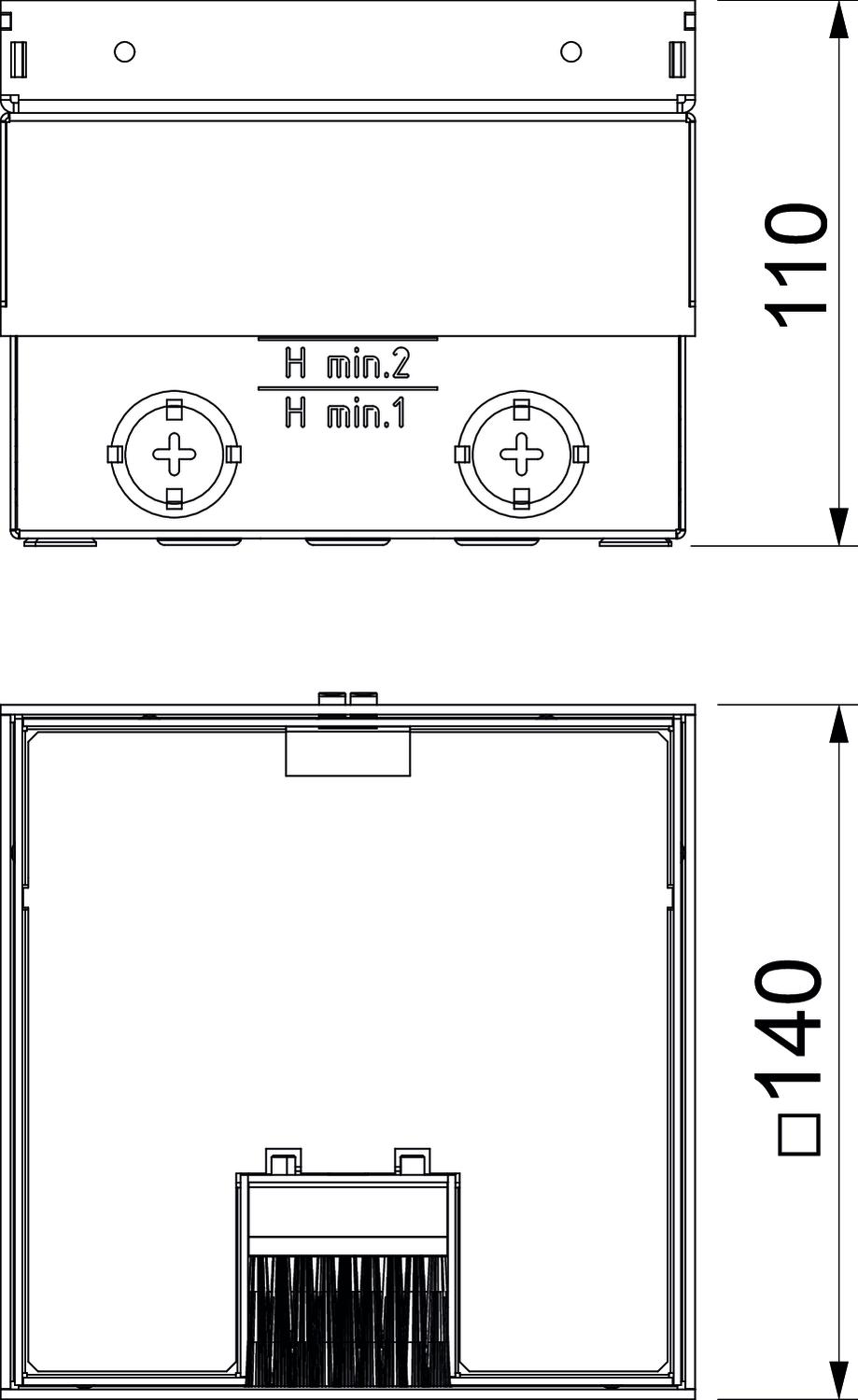

Application when unused 6.101.1 Dry floor care Application when used 6.101.1 Dry floor care Cable outlet version Brush bar CO2 Footprint (GWP) Cradle-to-Gate 12,5731 kg CO₂e / 1 Piece Cover version Floor covering recess Device support to accept mounting boxes no Dimension 140x140x100 Equipment Empty housing for FLF socket Floor care Dry Floor covering protection frame no Floor covering thickness 15 mm Floor height, max. 135 mm Floor height, min. 100 mm Frame version Floor covering contact edge Heavy-duty version no Height 100 mm Length 140 mm Material Stainless steel Number of installable devices 3 Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Seal installation option no Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts no Suitable for screed-flush closed underfloor ducts no Suitable for wet care no Version for Square Vertical load, small area to 3,000 N Width 140 mm With floor covering recess yes - All types
