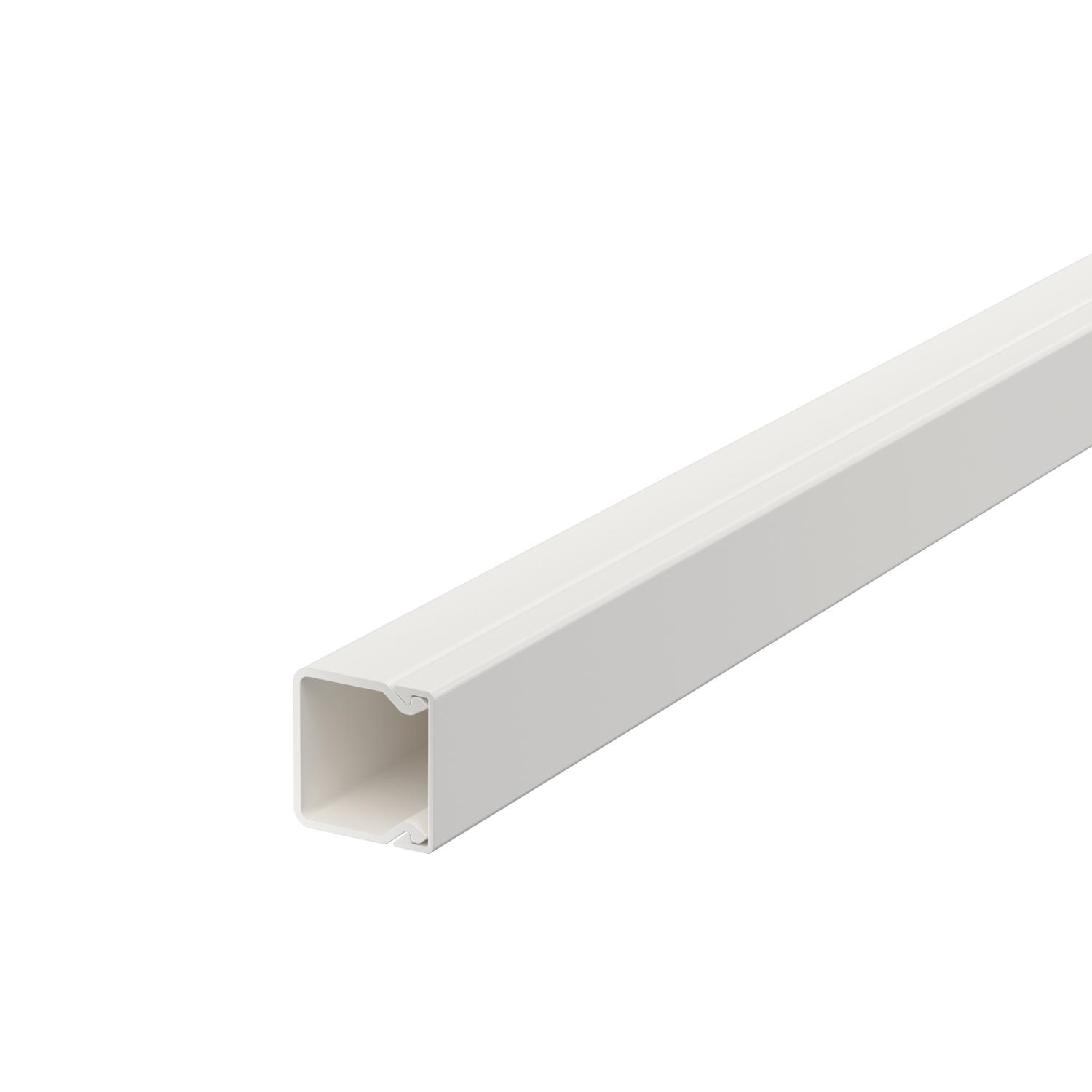

Trunking, type WDKH 20020
Item no. 6175400 | EAN 4012195812456
- Product description
-
Product descriptionTrunking cover and base with base perforation made of halogen-free plastic.
-
- Technical data
-
Technical data

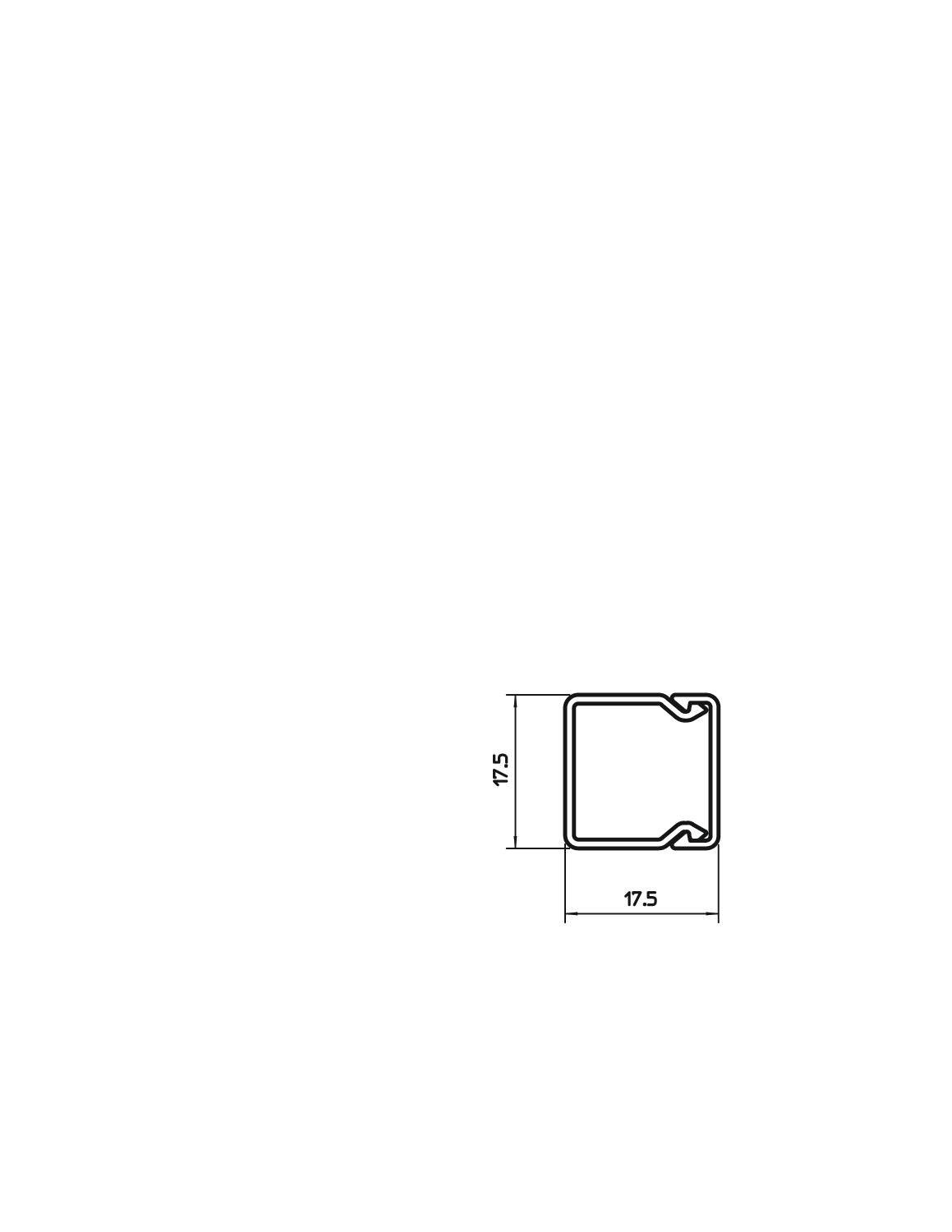

Antibacterial treatment no Base perforation with base perforation Cable retaining clip no Colour Pure white; RAL 9010 CO₂ Footprint (GWP) Cradle-to-Gate 0,5277 kg CO₂e / 1 Meter Delivery on a roll no Dimension 20x20x2000 Duct connector no Fastening type Base perforation Halogen-free yes Height 17,4 mm Length 2000 mm Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) 1 Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Usable cross-section 220 mm² Version, cable trunking cover Loose Width 17,4 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

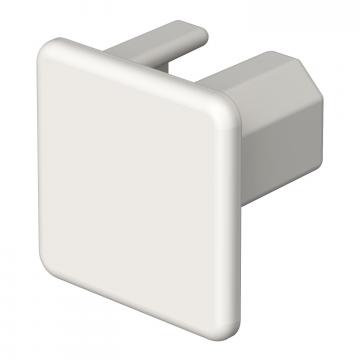

End piece, trunking type WDKH 20020
WDKH-E20020RW 6175550 10 piece

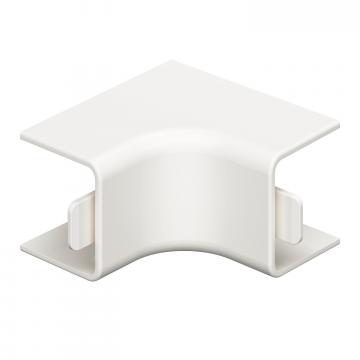

Internal corner cover, trunking type WDKH 20020
WDKH-I20020RW 6175581 4 piece

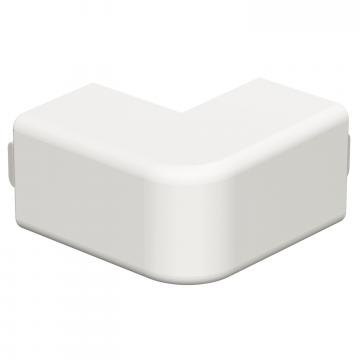

External corner cover, trunking type WDKH 20020
WDKH-A20020RW 6175624 4 piece

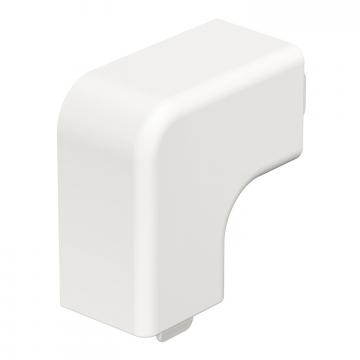

Flat angle cover, trunking type WDKH 20020
WDKH-F20020RW 6175658 4 piece - Downloads
-
