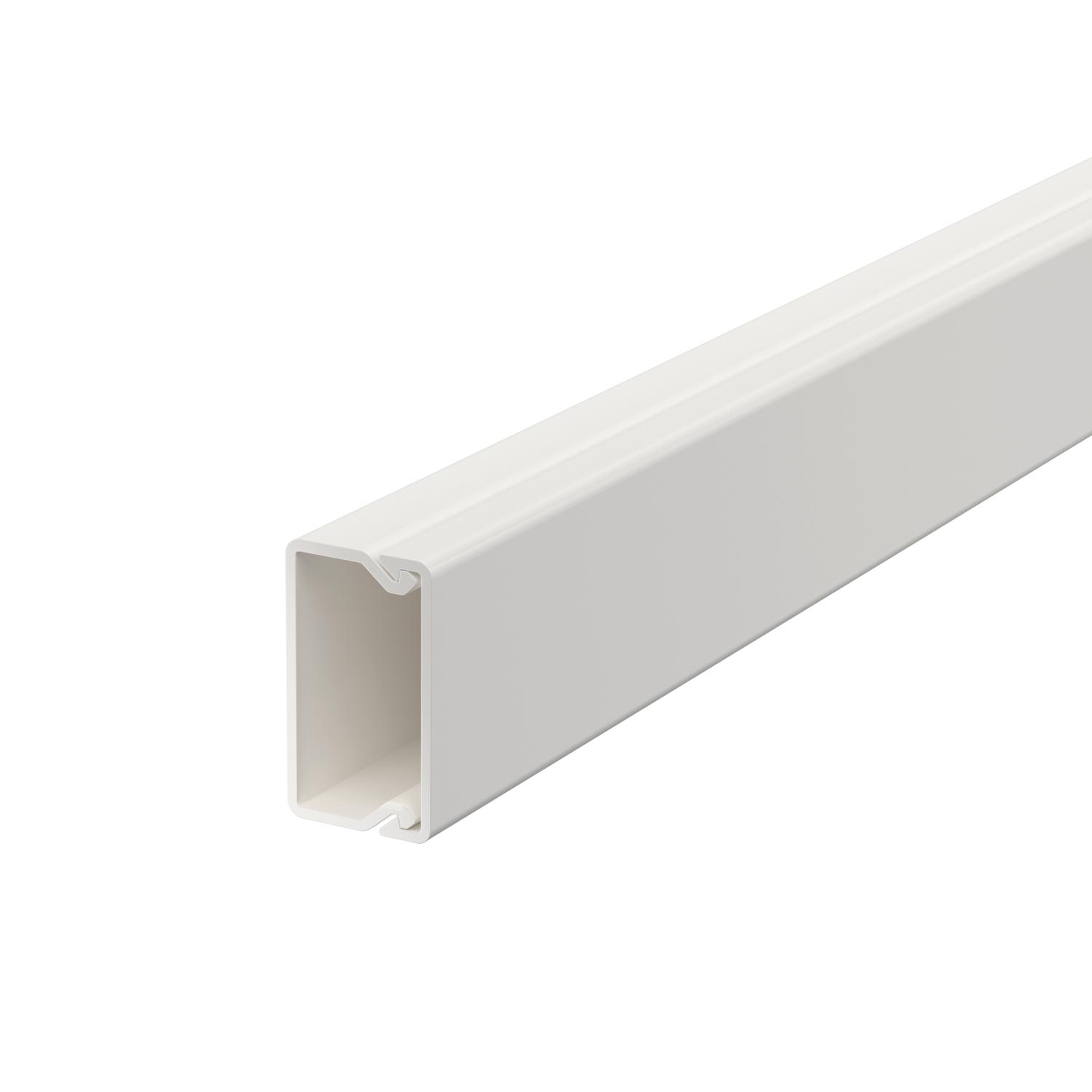

Trunking, type WDKH 15030
Item no. 6175390 | EAN 4012195933953
- Product description
-
Product descriptionTrunking cover and base with base perforation made of halogen-free plastic.
-
- Technical data
-
Technical data

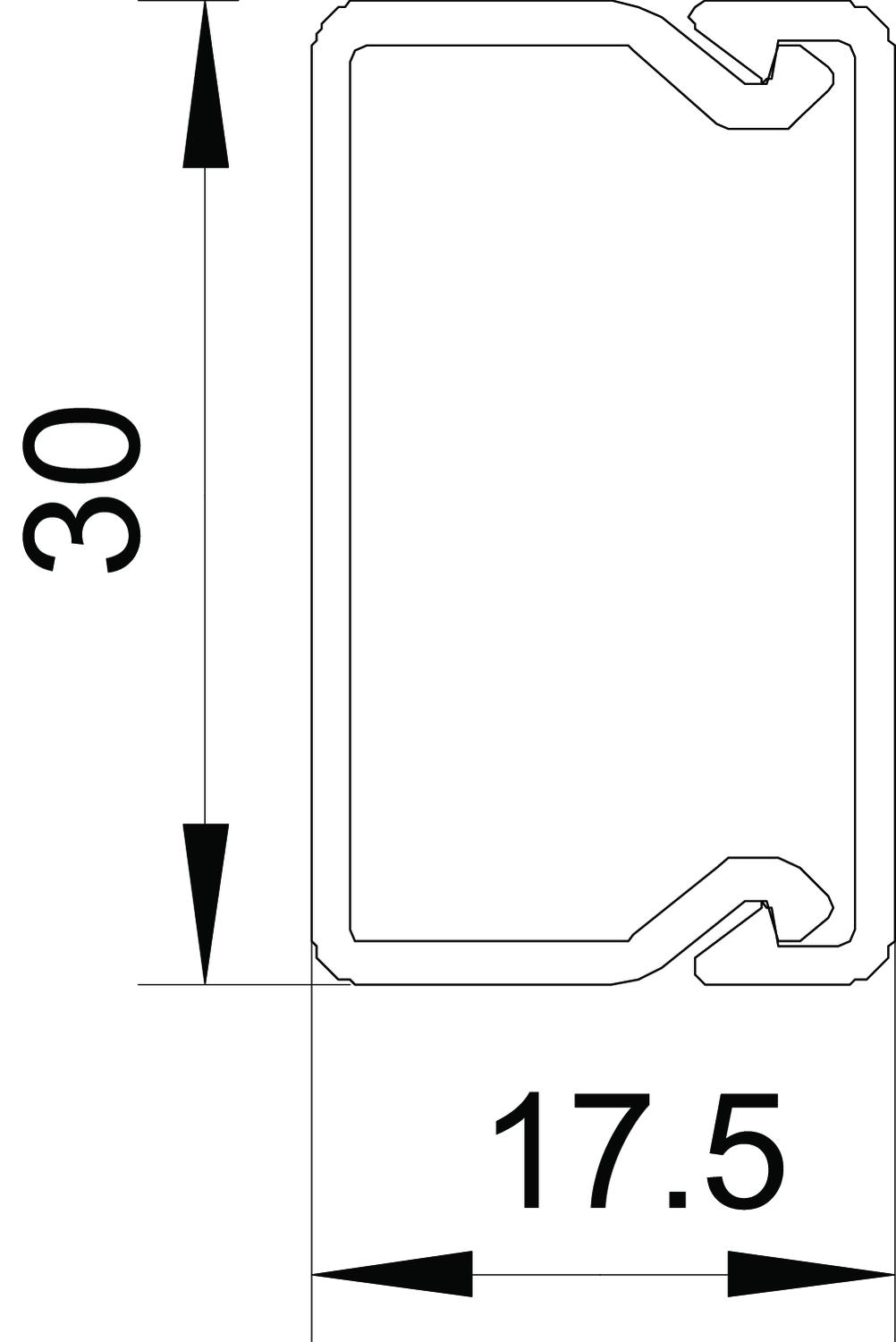

Antibacterial treatment no Base perforation with base perforation Cable retaining clip no Colour Pure white; RAL 9010 CO₂ Footprint (GWP) Cradle-to-Gate 0,8237 kg CO₂e / 1 Meter Dimension 15x30x2000 Duct connector no Fastening type Base perforation Halogen-free yes Height 17,5 mm Length 2000 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Usable cross-section 375 mm² Version, cable trunking cover Loose Width 30 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

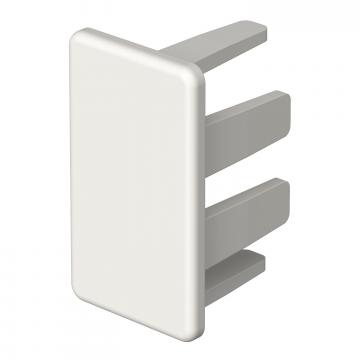

End piece, trunking type WDKH 15030
WDKH-E15030RW 6175546 10 piece

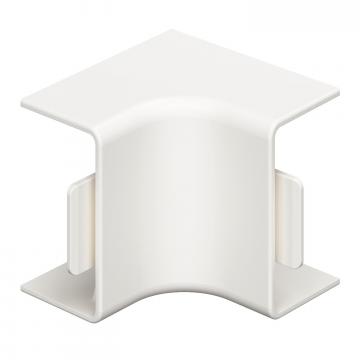

Internal corner cover, trunking type WDKH 15030
WDKH-I15030RW 6175578 4 piece
External corner cover, trunking type WDKH 15030
WDKH-A15030RW 6175618 4 piece

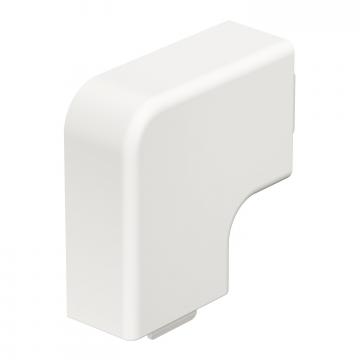

Flat angle cover, trunking type WDKH 15030
WDKH-F15030RW 6175654 4 piece - Downloads
-
Data sheet WDKH-15030RW / 6175390 , 0.20MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDKH-15030RW / 6175390 , 0.10MB , pdfUK Declaration of Conformity WDKH-15030RW / 6175390 , 0.09MB , pdfREACH Declaration of conformity WDKH-15030RW / 6175390 , 0.12MB , pdfRoHS Declaration of conformity WDKH-15030RW / 6175390 , 0.12MB , pdfLabel approval VDE symbol approval, WDK-H , 0.25MB , pdfLabel approval VDE symbol approval, WDK , 0.11MB , pdfMounting instructions Cable trunking WDK , 6.19MB , pdfNo invitation to tender text is available for this product.
