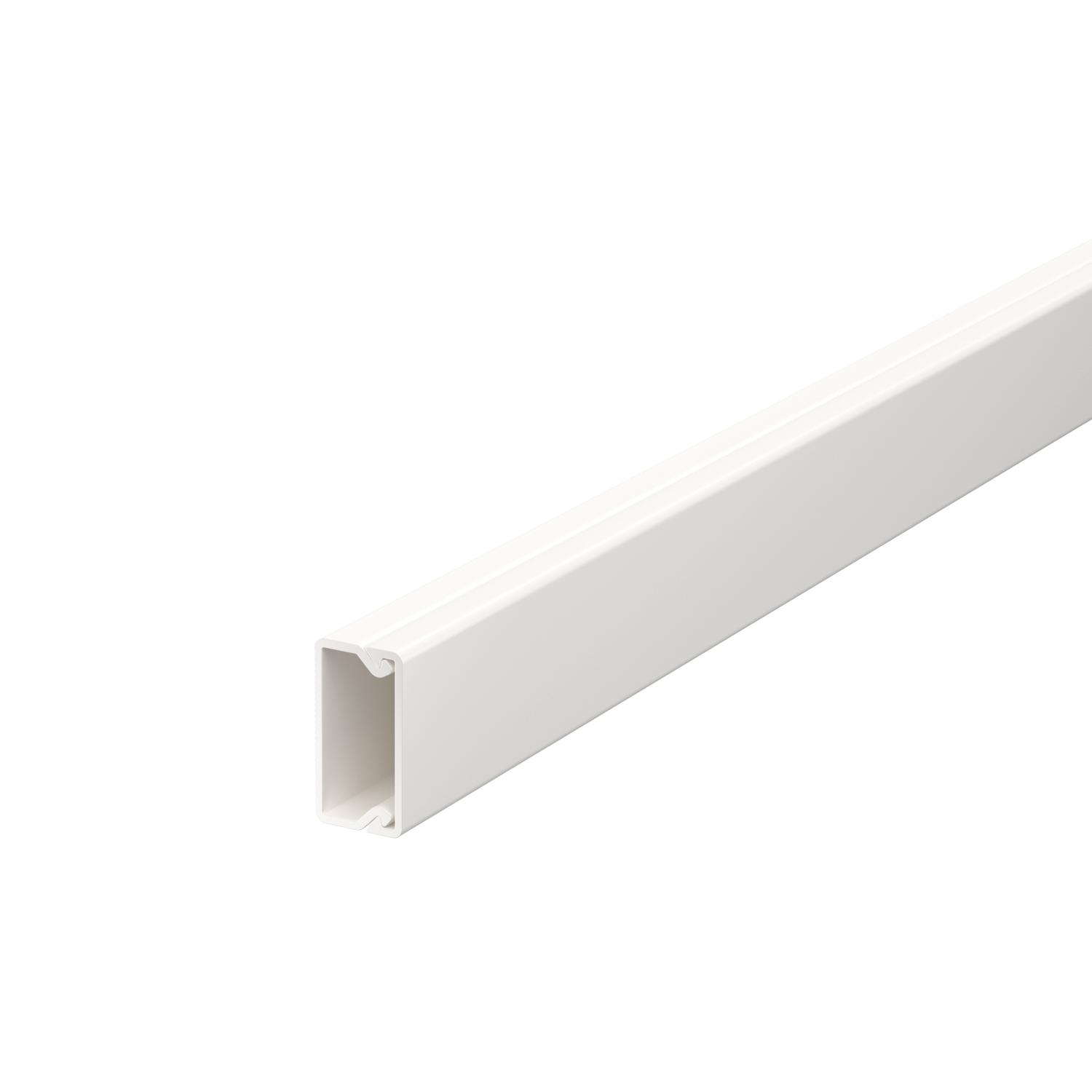

Trunking, type WDKH 10020
Item no. 6175375 | EAN 4012195933779
- Product description
-
Product descriptionTrunking cover and base with base perforation made of halogen-free plastic.
-
- Technical data
-
Technical data
Antibacterial treatment no Base perforation with base perforation Cable retaining clip no Colour Pure white; RAL 9010 CO₂ Footprint (GWP) Cradle-to-Gate 0,4306 kg CO₂e / 1 Meter Dimension 10x20x2000 Duct connector no Fastening type Base perforation Halogen-free yes Height 10 mm Length 2000 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Usable cross-section 135 mm² Version, cable trunking cover Loose Width 20 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

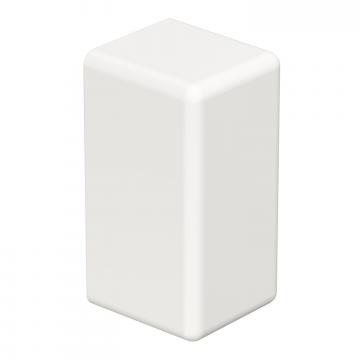

End piece, trunking type WDKH 10020
WDKH-E10020RW 6175540 10 piece

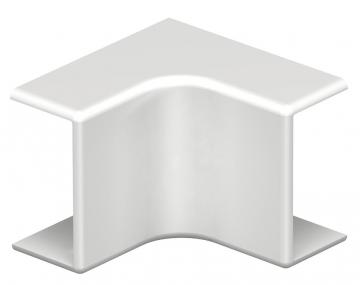

Internal corner cover, trunking type WDKH 10020
WDKH-I10020RW 6175572 4 piece
External corner cover, trunking type WDKH 10020
WDKH-A10020RW 6175612 4 piece
Flat angle cover, trunking type WDKH 10020
WDKH-F10020RW 6175648 4 piece - Downloads
-
