T piece adapter, for device installation trunking Rapid 45-2 type 53130
Item no. 6113300 | EAN 4012196419814
- Product description
-

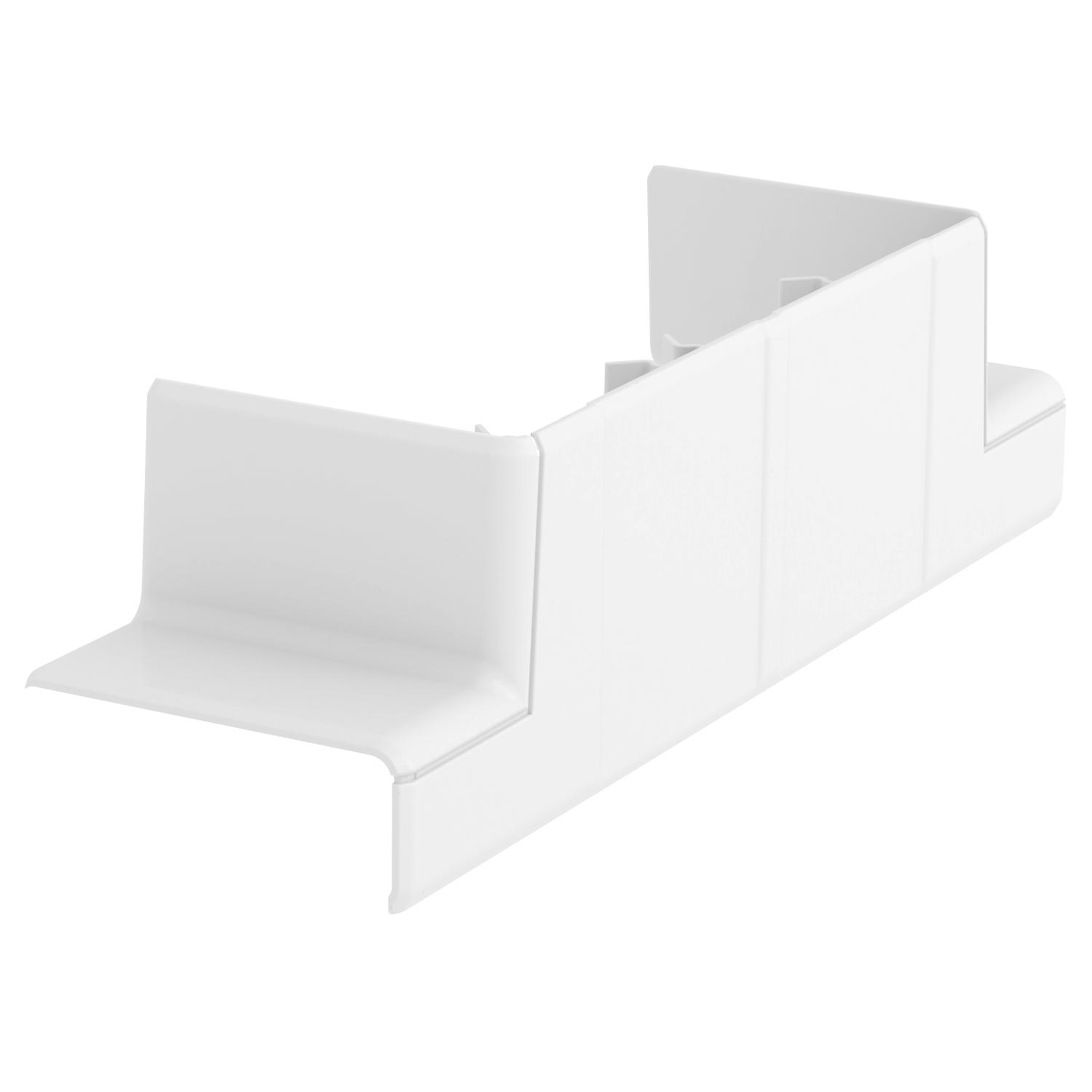

Product descriptionT piece adapter to create a 90° junction of the system size 53130 on the system size 53130.
-
- Technical data
-
Technical data
Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 0,2472 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Cover mounting type Cross-over Dimension 190x52x56 Duct connector no for duct width 130 mm for trunking height 53 mm Halogen-free yes Height 55,5 mm Length 190 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting perforation in base no Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Protective film no Symmetrical no Version for Hood fitting Width 52 mm Width of the branch 130 mm - All types
- Downloads
-
Data sheet GK-TR53130RW / 6113300 , 0.18MB , pdfEU declaration of conformity GK-TR53130RW / 6113300 , 0.10MB , pdfREACH Declaration of conformity GK-TR53130RW / 6113300 , 0.12MB , pdfRoHS Declaration of conformity GK-TR53130RW / 6113300 , 0.13MB , pdfMounting instructions Mounting instructions, T piece adapter GK-TA WDK..., GK-TR... , 0.14MB , pdfNo invitation to tender text is available for this product.
