Quick clip, light grey
Item no. 2149010 | EAN 4012195583936
- Product description
-
Product description

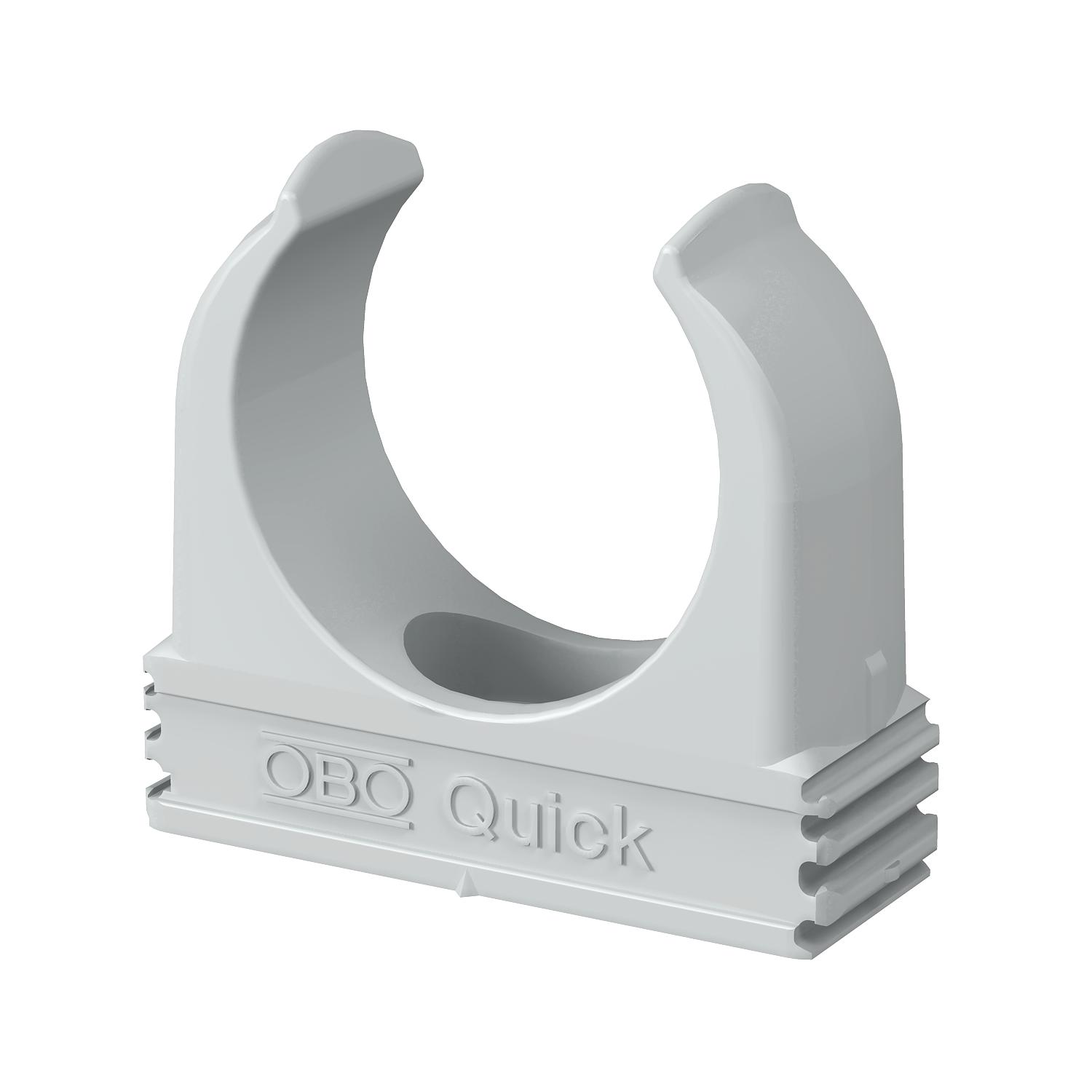

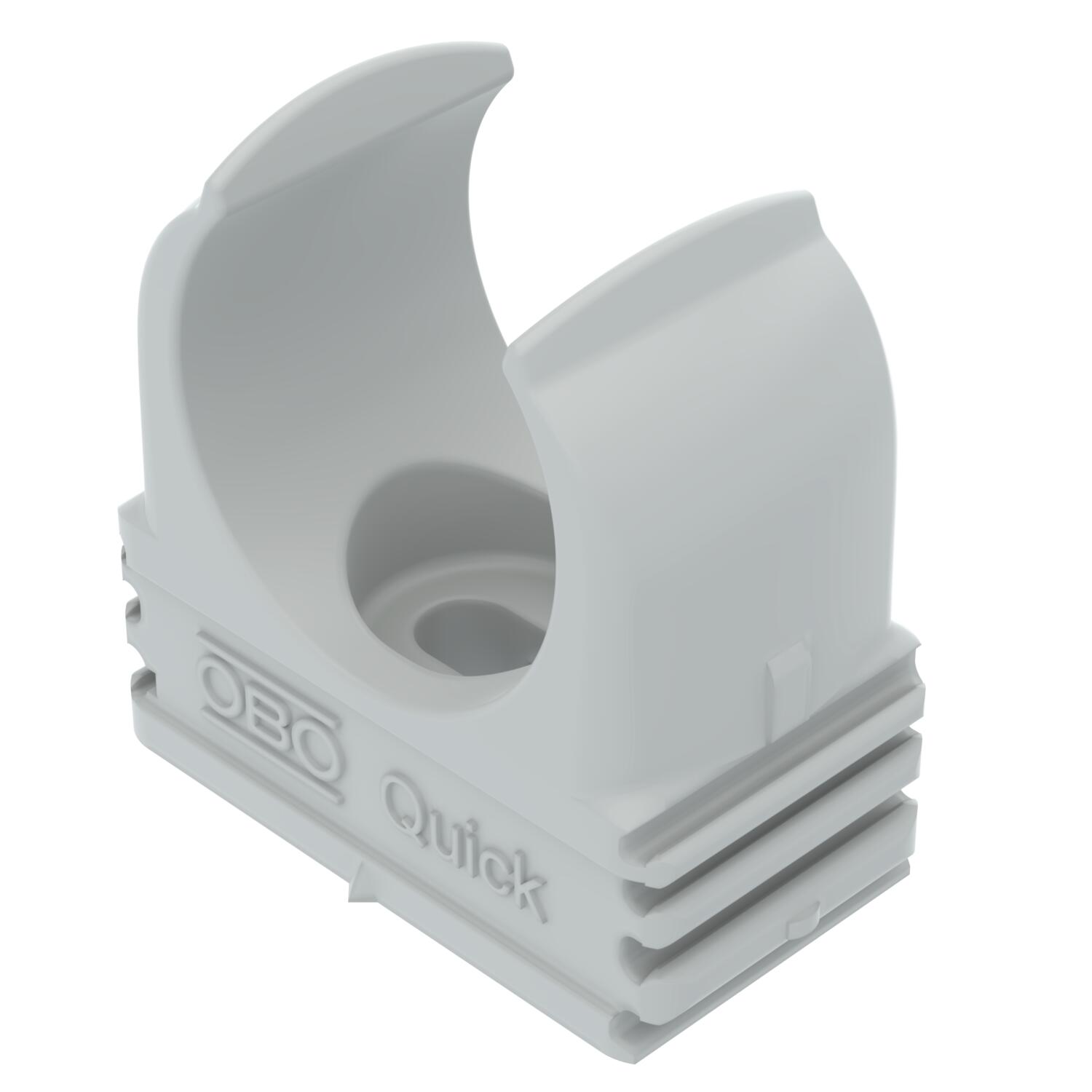

Flush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick Pipe electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or starQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
-
- Technical data
-
Technical data
Breaking load 0,09 kN Clamping range D, max. 20 mm Clamping range D, min. 20 mm Closed no Colour Light grey; RAL 7035 Dimension M20 Expandable yes Fastening type Screw hole Halogen-free yes Material Polypropylene Nominal size/text M20 Number of cables/pipes 1 Pull-out value 75 N UV-resistant no With inlay no Dimensions

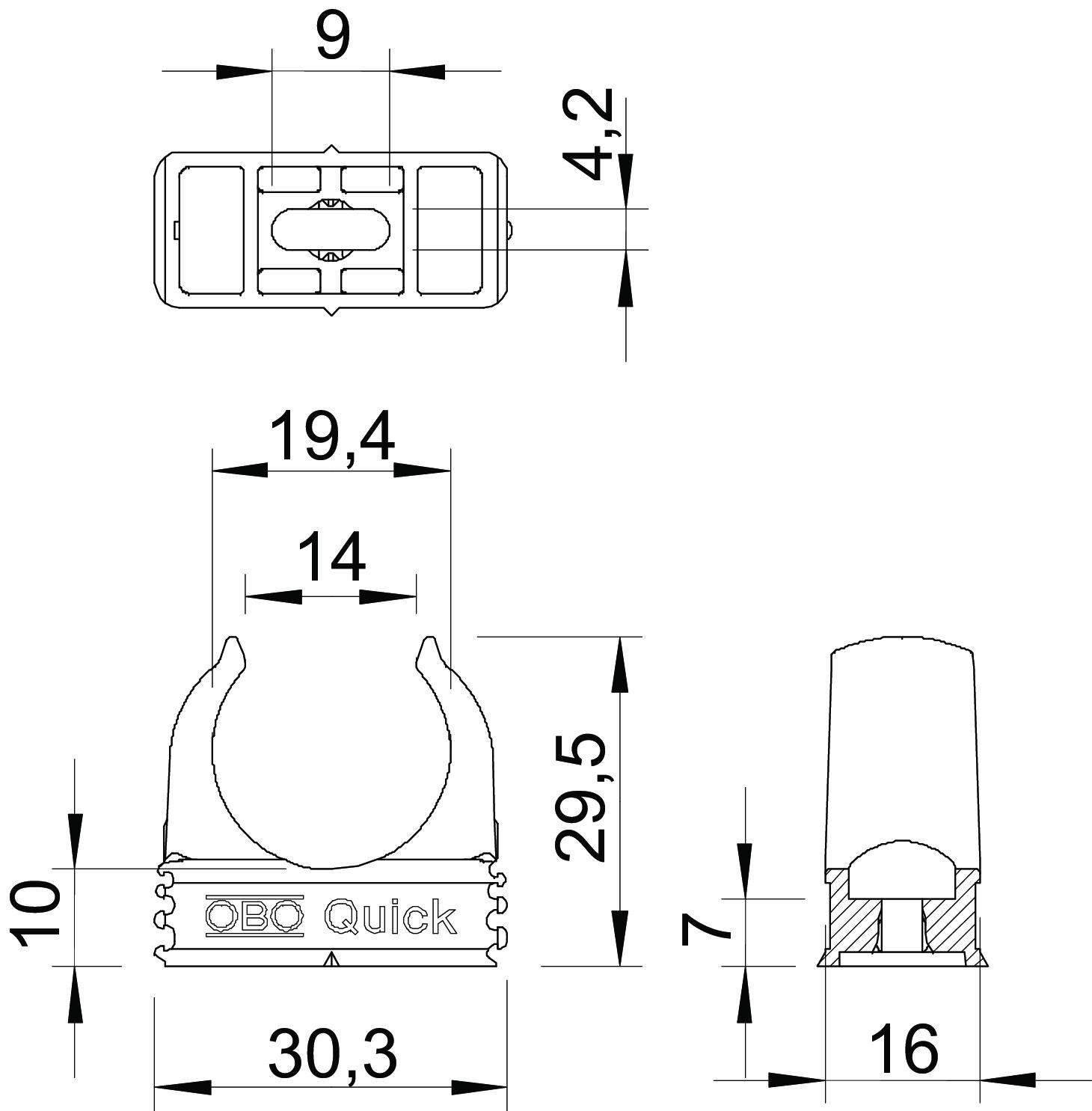

Dimension A 30,3 mm Dimension B 16 mm Dimension C 14 mm Dimension D 19,4 mm Dimension E 9 mm Dimension F 4,2 mm Dimension H 29,5 mm Dimension h 10 mm - All types
