Quick clip, aluminium
Item no. 2149925 | EAN 4012196409259
- Product description
-

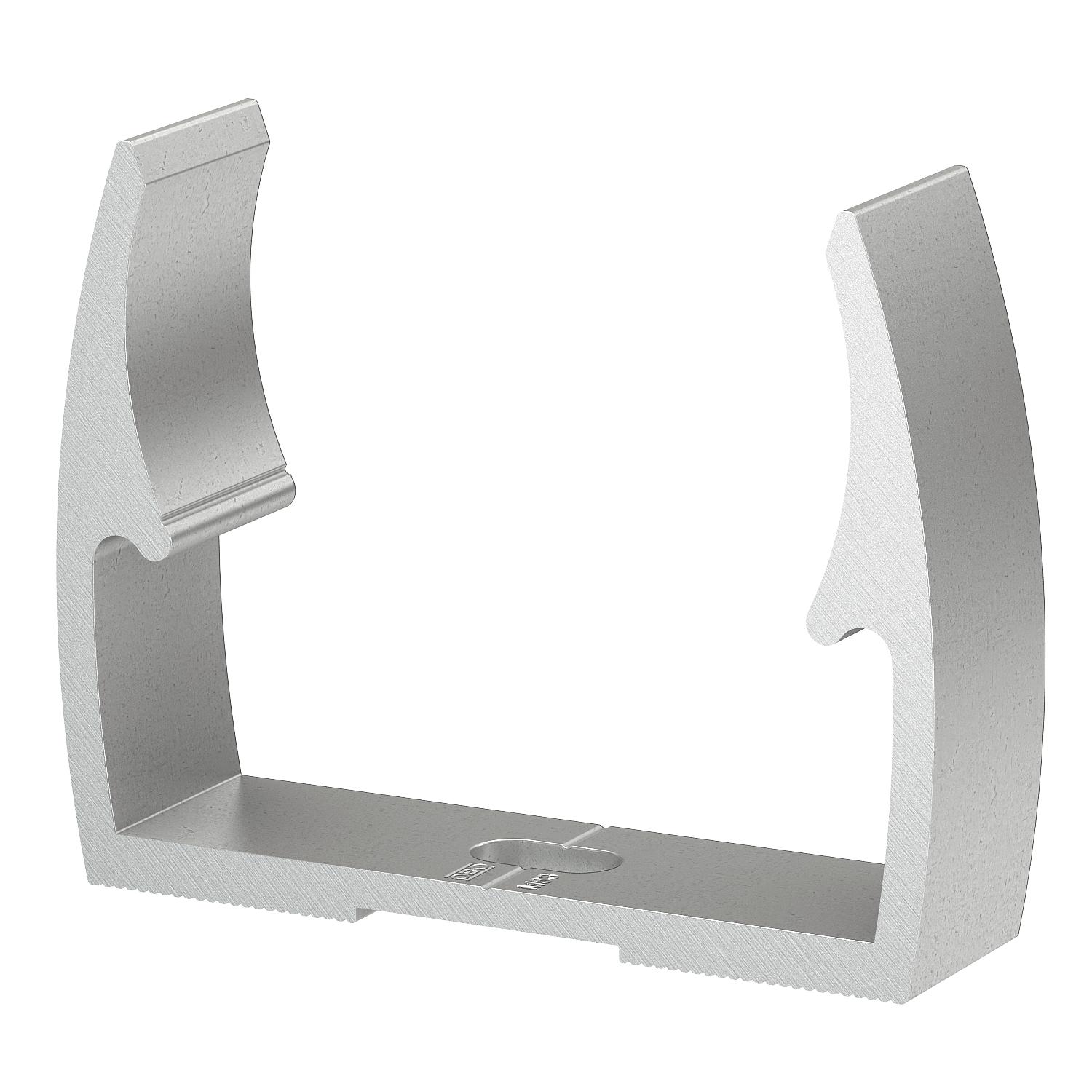

Product descriptionOBO Quick clip, type ALQ M, for all metric ALU pipe systems, as well as light-duty and heavy-duty insulation pipes. Suitable for mounting the OBO pipe system, material: aluminium. Pipe centring aids allow optimal attachment of the pipe and automatically turn the clip into the correct position.
Slot for side alignment during mounting with wood screw or knock-in anchor.
Recommended fastening spacing 50−60 cm.
-
- Technical data
-
Technical data
Clamping range D, max. 25 mm Clamping range D, min. 25 mm Closed no CO2 Footprint (GWP) Cradle-to-Gate 0,1856 kg CO₂e / 1 Piece Dimension M25 Dimension A 31 mm Dimension B 18 mm Dimension E 5,1 mm Dimension F 9,5 mm Dimension h 22 mm Dimension H 30 mm Expandable no Fastening type Screw hole Halogen-free no Material Aluminium Nominal size 25 Number of cables/pipes 1 Pull-out value 90 N UV-resistant yes With inlay no - All types
- Downloads
-
Data sheet ALQ M25 / 2149925 , 0.20MB , pdfBrochure Quick Pipe , 1.44MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity ALQ M25 / 2149925 , 0.10MB , pdfUK Declaration of Conformity ALQ M25 / 2149925 , 0.09MB , pdfREACH Declaration of conformity ALQ M25 / 2149925 , 0.12MB , pdfRoHS Declaration of conformity ALQ M25 / 2149925 , 0.13MB , pdf
