OBO anchor G 15 | 4 | M6 | 23

morepic-1

morepic-2

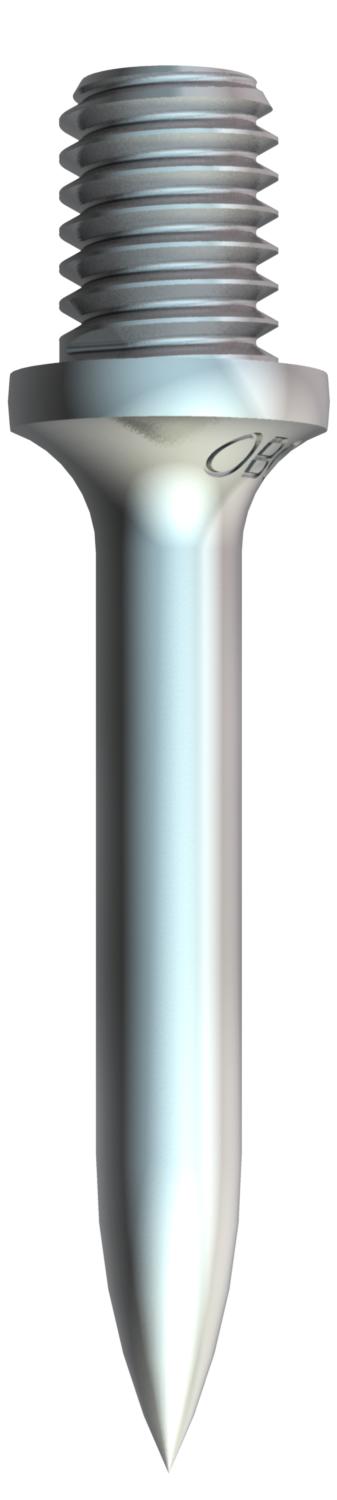

OBO anchor G

Item no. 3100154 | EAN 4012195245773

Item no. / Types

Shank length

Dimension d min.	4 mm

Dimension G	M6 mm

Dimension L

Product description

Product description

Hardened steel, electrogalvanised with M6 x 8 mm thread.

Technical data

Technical data

Dimension	M6, L15mm
Hardened	yes
Impact-resistant	no
Material	Steel
Shank length	15

Surface	Electrogalvanized
Thread length	8 mm
Thread metric	6
Thread type	Metric

Dimensions

Dimension d min.	4 mm
Dimension G	M6 mm

Dimension L	23 mm
Length	23 mm

All types

All types

Types	Shank length	Dimension d min.	Dimension G	Dimension L	Item no.	Quantity	SSU
903 15 G	15	4 mm	M6 mm	23 mm	3100154	piece	100 piece
903 18 G	18	4 mm	M6 mm	26 mm	3100189	piece	100 piece
903 25 G	25	4 mm	M6 mm	33 mm	3100251	piece	100 piece
903 30 G	30	4 mm	M6 mm	38 mm	3100308	piece	100 piece
903 40 G	40	4 mm	M6 mm	48 mm	3100405	piece	100 piece
