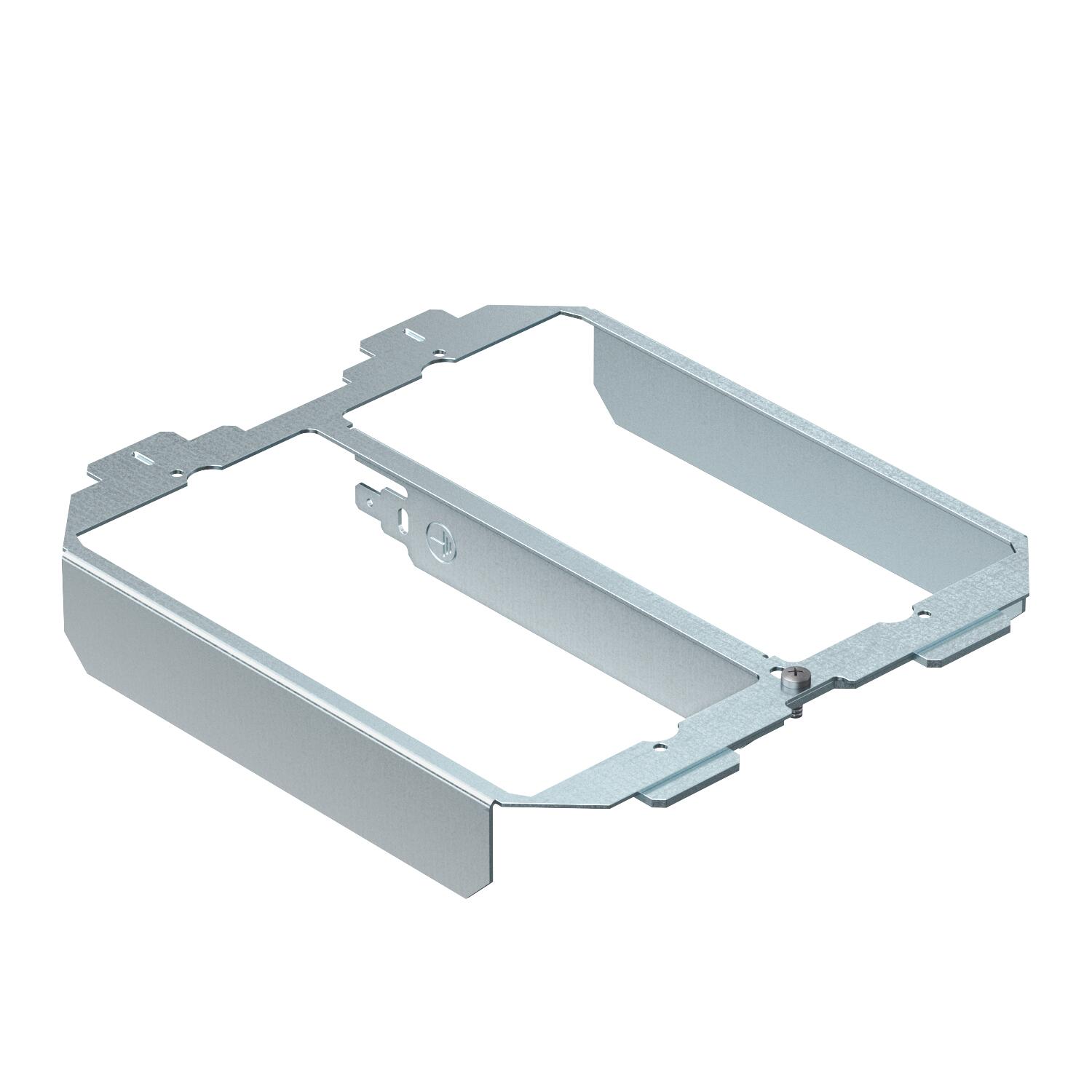

Mounting support, nominal size 4 and R4, for APMT2 cover plates

Item no. 7407748 | EAN 4012195112969

Product description
Product description
Mounting support for accepting APMT2 cover plates, which aid the installation of accessories in installation units of nominal sizes 4 and R4.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,8191 kg CO2e / 1 Piece

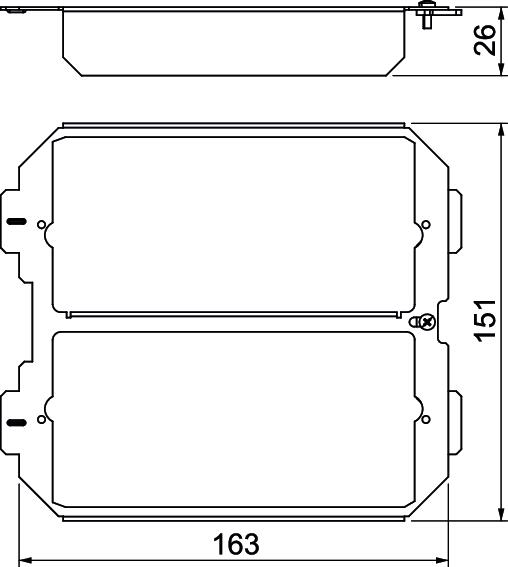

Height 26 mm
Length 151 mm
Material Steel
Number of installable devices 4
Number of single openings 2
Surface Strip galvanized
Width 163 mm
All types

All types

Types Item no. Quantity SSU
MT 4R4 AP 2 7407748
1 piece
Downloads

Download

No invitation to tender text is available for this product.
