Junction box A 18 with terminal strip
Item no. 2000414 | EAN 4012195917144
- Product description
-
Product descriptionProtection rating IP55, rated voltage 690 V, nominal cross-section 2.5 mm², 10 entries for cable diameter 5‒14 mm
8 entries for cable diameter 5‒11 mm.
Clamshell.

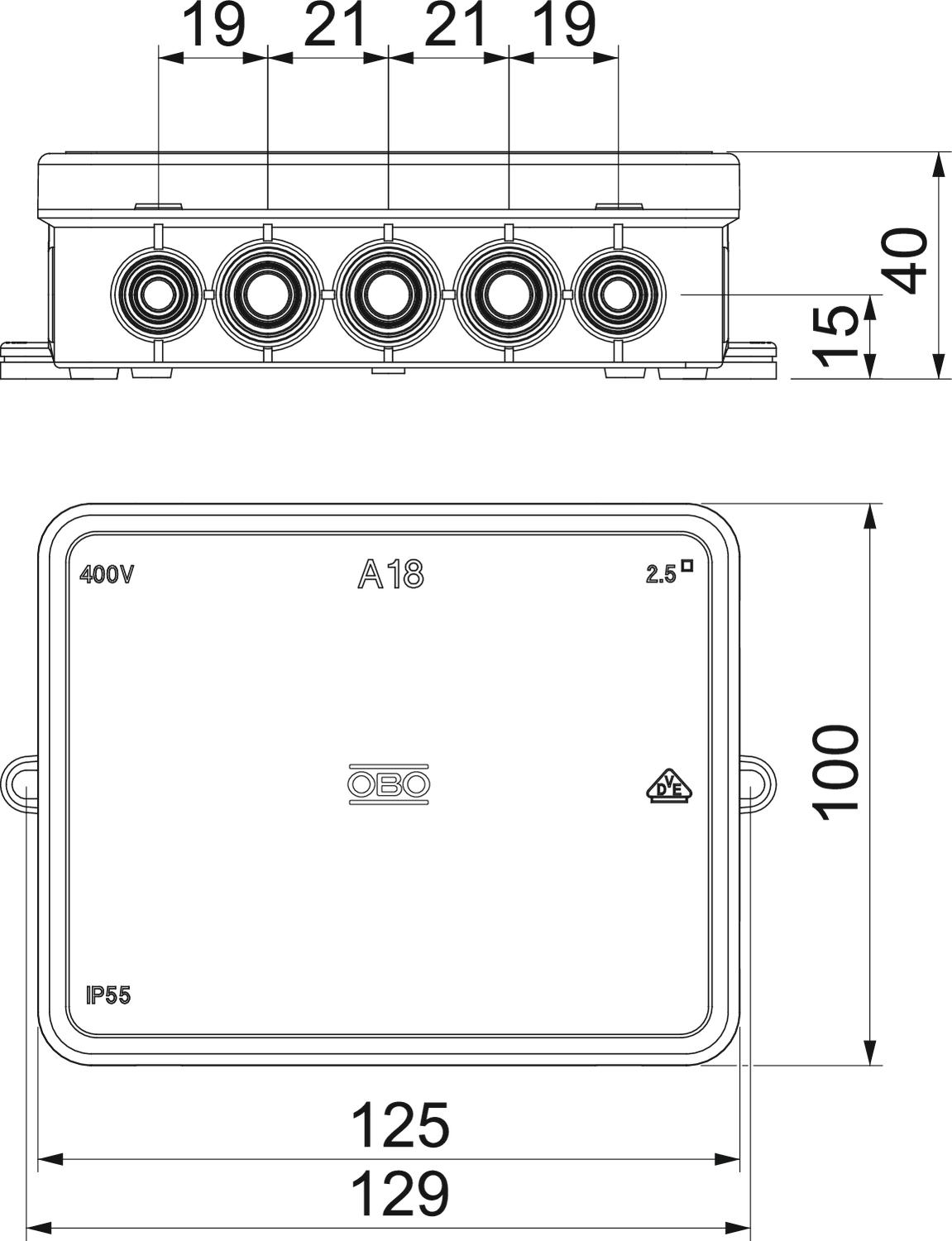

Dimensions: 125 x 100 x 40 mm
Clear internal dimensions: 115 x 90 x 35 mm
1 cut-out tool for every 10 boxes
-
- Technical data
-
Dimensions
Clear internal dimensions 115x90x35 mm CO2 Footprint (GWP) Cradle-to-Gate 0,269 kg CO2e / 1 Piece Colour Light grey; RAL 7035 Cover Not transparent Cover fastening Locking Dimension 125x100x38 Entries 10 entries for cable diameter 5–14 mm
8 entries for cable diameter 5–11 mm
Entry from rear no Equipment Without Expandable yes Explosion-tested version no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 40 mm Junction box cover version Blanking lid Length 125 mm Maintain electrical functions Without Material Polyethylene Max. Conductor cross-section 2,5 mm² Measured insulation voltage Vi 690 V Mounting type Wall/ceiling mounting No. of entries 18 Nominal cross-section, min. 2,5 mm² Nominal voltage 690 V Number of terminals 5 Permitted temperature range, max. 45 °C Permitted temperature range, min. -5 °C Protection rating IP55 Sealable no Shape Square Transparent lid no Type of entry Cable Type of entry Cable Type of housing penetration Pre-marking Weatherproof no Width 100 mm with lid yes With screening no - All types
