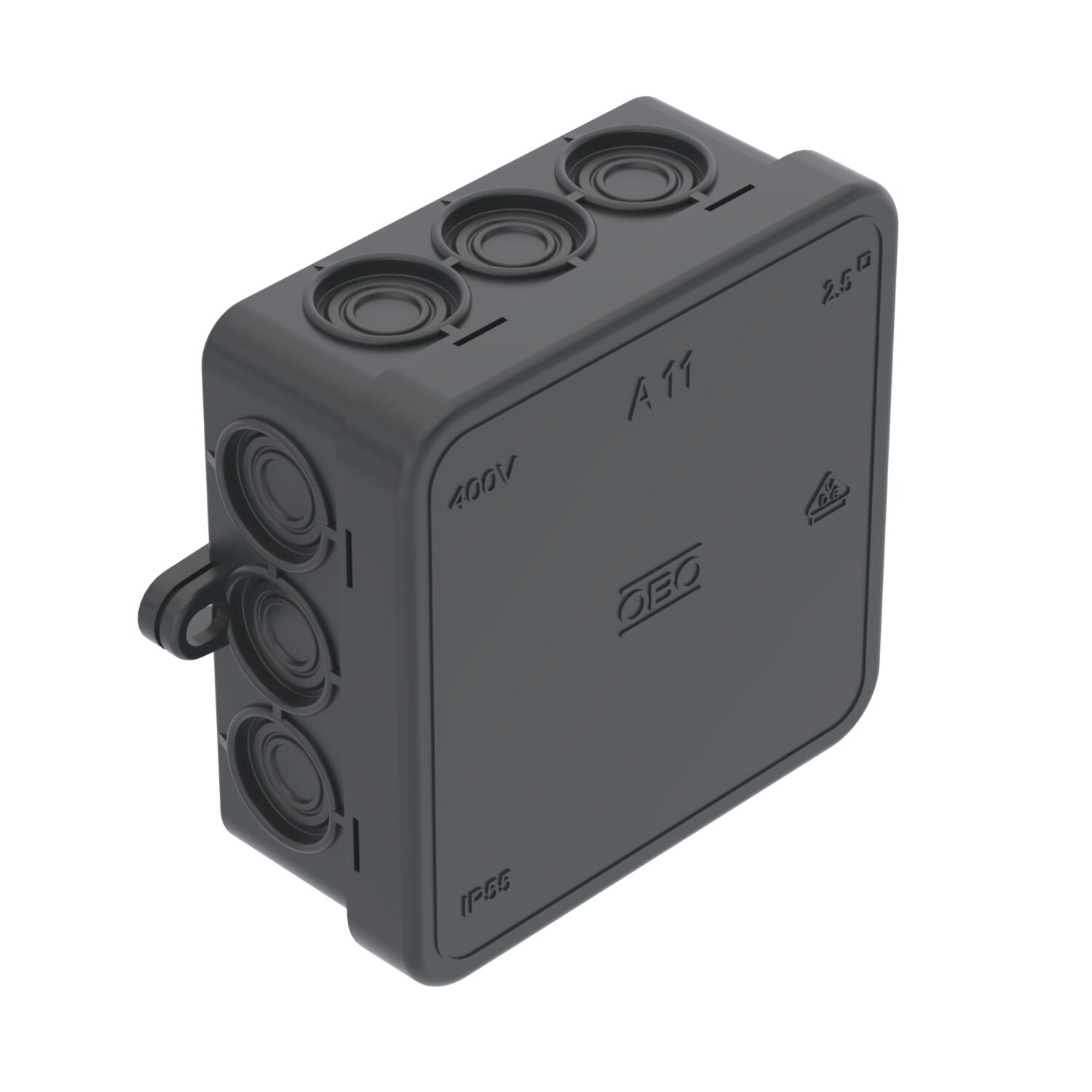

Junction box A 11
Item no. 2000182 | EAN 4012197444358
- Product description
-
Product descriptionSchutzart IP55, Nennspannung 690 V, Nennquerschnitt 2,5 mm², 12 Einführungen für Kabeldurchmesser 5-14 mm.
Klemmdeckel.
Abmessungen: 85 x 85 x 40 mm
Lichte Innenmaße: 75 x 75 x 35 mm
Je 10 Dosen 1 Ausschneidwerkzeug
-
- Technical data
-
Dimensions
Clear internal dimensions 75x75x35 mm Colour Graphite black; RAL 9011 Cover Not transparent Cover fastening Locking Dimension 85x85x40 Entries 12 Einführungen für Kabeldurchmesser 5-14 mm
Entry from rear no Equipment Without Expandable yes Explosion-tested version no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C For Ex zone Without For Ex zone dust Without For Ex zone gas Without for pipe diameter 14 mm Halogen-free yes Height 40 mm Junction box cover version Blanking lid Length 85 mm Maintain electrical functions Without Material Polyethylene Max. Conductor cross-section 2,5 mm² Measured insulation voltage Vi 690 V Mounting type Wall/ceiling mounting No. of entries 12 Nominal cross-section, min. 2,5 mm² Nominal voltage 690 V Permitted temperature range, max. 45 °C Permitted temperature range, min. -5 °C Protection rating IP55 Sealable no Shape Square Transparent lid no Type of entry Cable Type of housing penetration Pre-marking Type of insertion Kabel Weatherproof no Width 85 mm with lid yes With screening no - All types
-
All types
