Hook screw A2 M6

morepic-1

morepic-2

Hook screw A2

Item no. 1154990 | EAN 4012195463399

Item no. / Types	1154990 / HS M6x13 A2

Thread	M6

Product description

Product description

Hook screw for fastening cable tracks on the bracket.

Technical data

Technical data

Dimension	M6x13
Material	Stainless steel
Surface	Bright, treated

Thread	M6
Thread length	22 mm

Dimensions

overall length	68 mm

All types

All types

Types	Thread	Item no.	Quantity	SSU
HS M6x13 A2	M6	1154990	piece	100 piece

Downloads

Data sheet HS M6x13 A2 / 1154990 , 0.36MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity HS M6x13 A2 / 1154990 , 0.13MB , pdf

REACH Declaration of conformity HS M6x13 A2 / 1154990 , 0.12MB , pdf

Download

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

Mounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf

Product graphic HS M6x13 A2 / 1154990, 75.10 kB, jpg

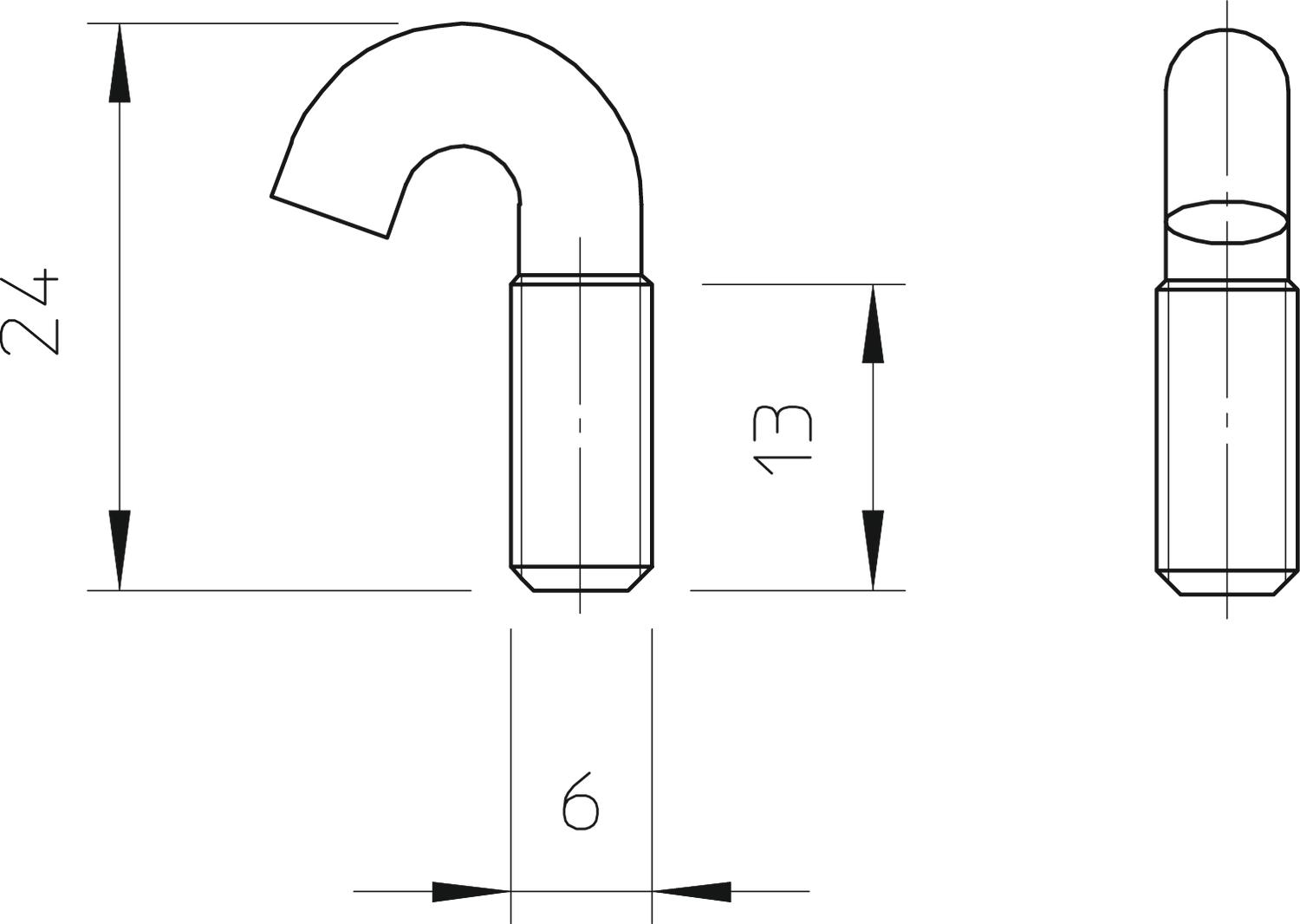

Scale drawing HS M6x13 A2 / 1154990, 46.50 kB, jpg

HS M6x13 A2 / 1154990

1154990_KSTP1.stp, 31.48 kB
