Flat angle cover, for device installation trunking Rapid 80 type 70110
Item no. 6274220 | EAN 4012195846574
- Product description
-

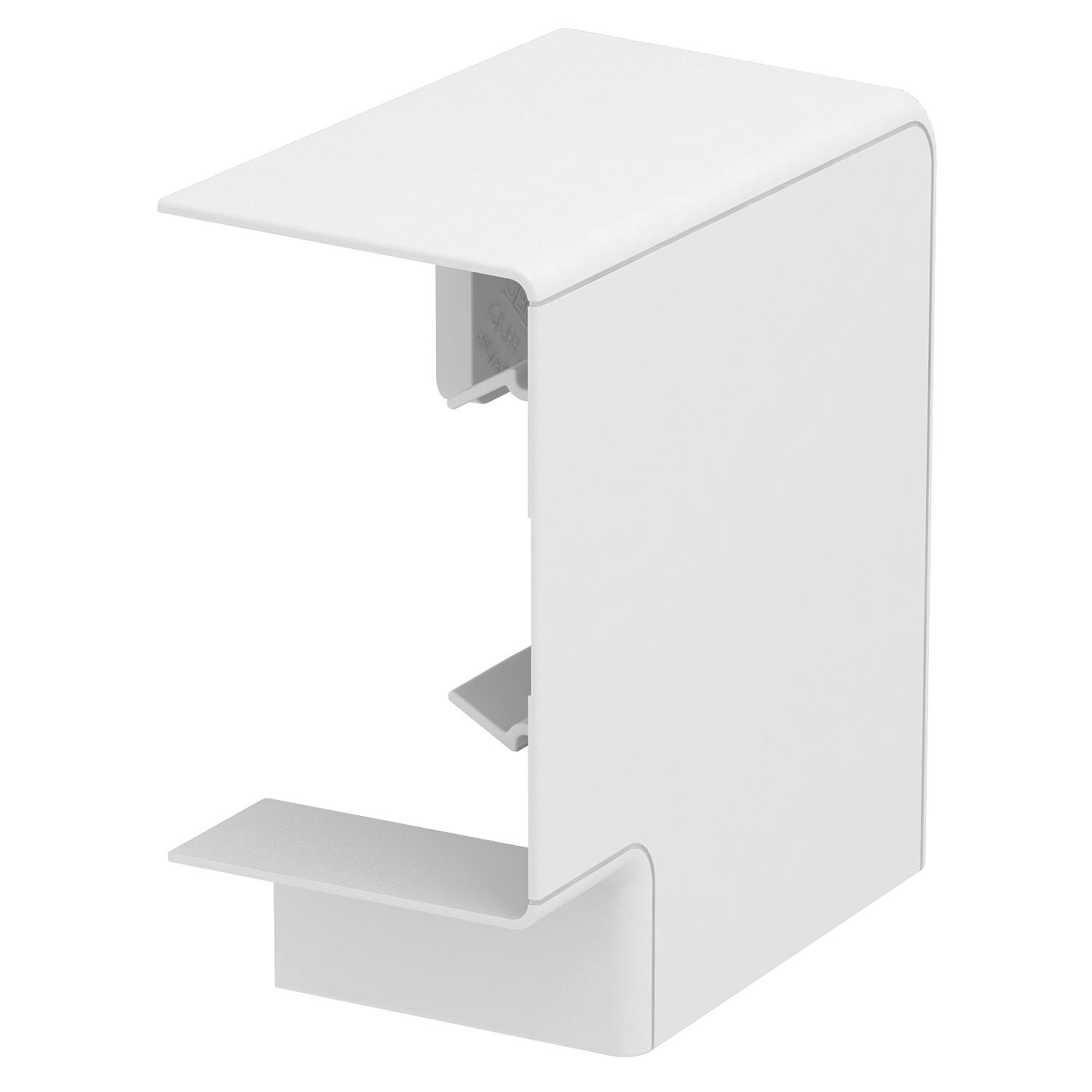

Product descriptionFlat angle cover fitting made of halogen-free PC/ABS for simple creation of a rising or falling 90° change of direction with device installation trunking of the series Rapid 80 GK, GKH, GS and GA. The flat angle cover fitting can be used for symmetrical and asymmetrical trunking types.
-
- Technical data
-
Technical data

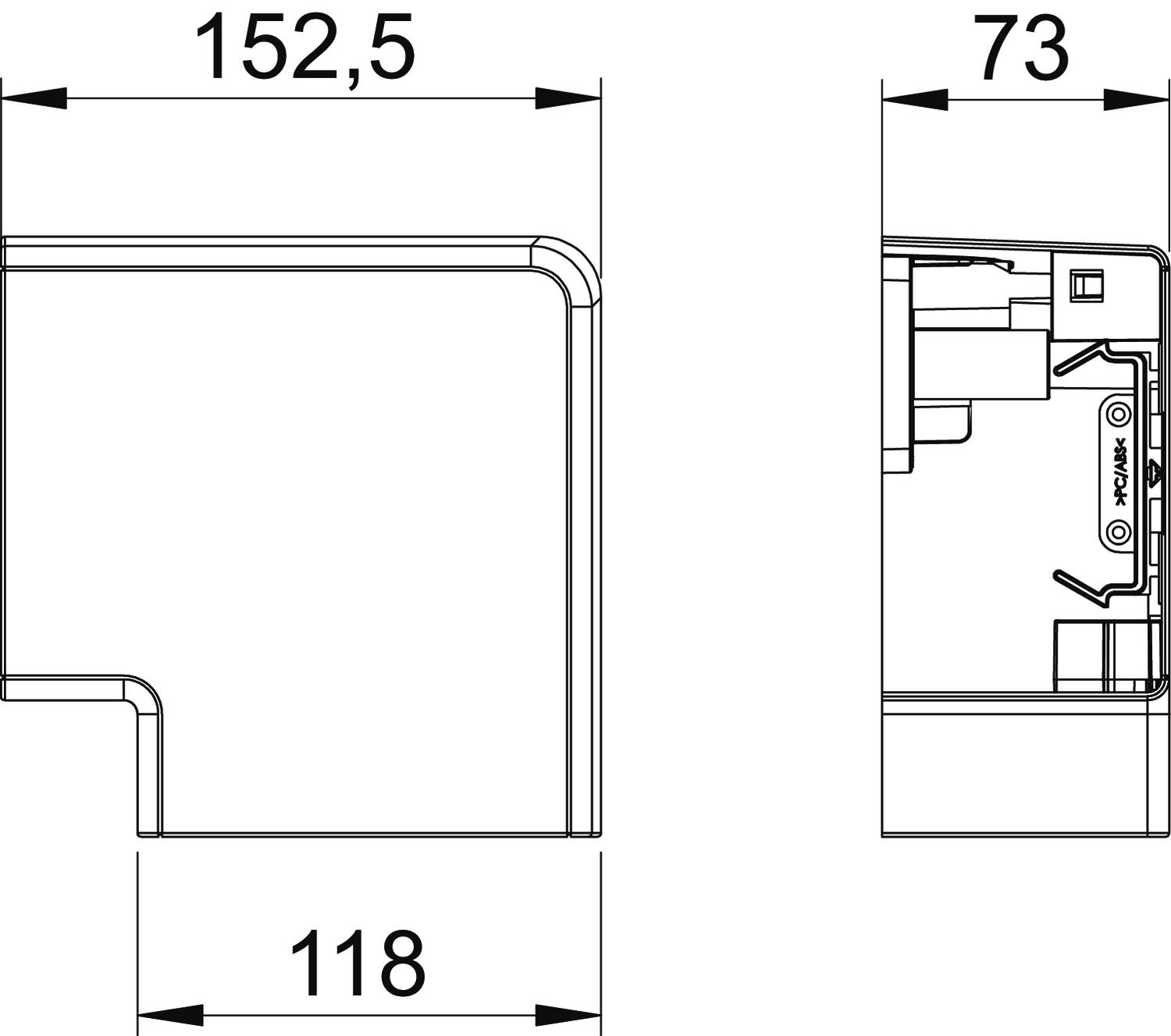

Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no Change of direction Vertical, rising/falling CO2 Footprint (GWP) Cradle-to-Gate 1,1818 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Cover mounting type Cross-over Dimension 70x110mm Duct connector no for duct width 110 mm for trunking height 70 mm Halogen-free yes Height 73 mm Length 152,5 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting perforation in base no Number of covers 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK08 Protective film yes Symmetrical yes Version for Hood fitting Width 118 mm - All types
- Downloads
-
Data sheet GK-FH70110RW / 6274220 , 0.21MB , pdfSafety data sheet GK-FH70110RW / 6274220 , 0.02MB , pdfEU declaration of conformity GK-FH70110RW / 6274220 , 0.10MB , pdfUK Declaration of Conformity GK-FH70110RW / 6274220 , 0.09MB , pdfREACH Declaration of conformity GK-FH70110RW / 6274220 , 0.27MB , pdfRoHS Declaration of conformity GK-FH70110RW / 6274220 , 0.28MB , pdfMounting instructions Mounting instructions, GK-FH70.. , 2.00MB , pdfNo invitation to tender text is available for this product.
