Fastening clip 605, medium duty, G
Item no. 1018337 | EAN 4012195017479
- Product description
-

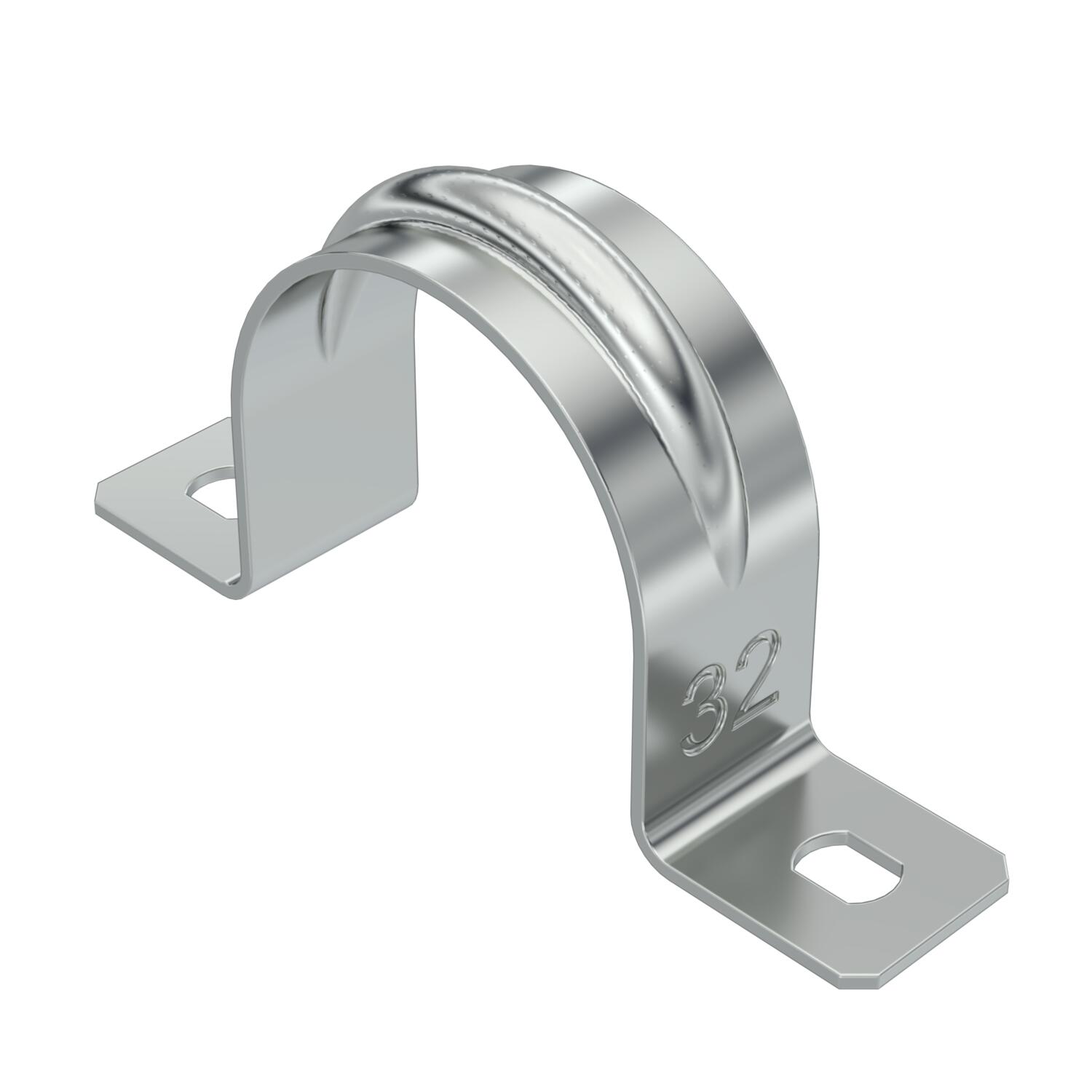

Product descriptionTwo lobe fastening clips for cables and pipes.
* Sizes 7 to 12 not suitable for bolt-firing tool.
-
- Technical data
-
Technical data

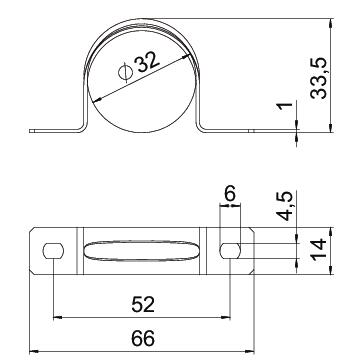

CO2 Footprint (GWP) Cradle-to-Gate 0,0308 kg CO₂e / 1 Piece Dimension 32mm Dimension A 66 mm Dimension b 14 mm Dimension B 52 mm Dimension d 5,5 mm Dimension D 32 mm Dimension e 6 mm Dimension H 30 mm Dimension t 1 mm Distance to the wall no Fastening type Screw hole For diameter 32 Halogen-free yes Height 30 mm Hole size 4,5 x 6 mm Length 66 mm Material Steel Material thickness 1 mm Nominal diameter 32 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Two-lobe Width 14 mm - All types
- Downloads
-
Data sheet 605 32 G / 1018337 , 0.19MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 605 32 G / 1018337 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 605 32 G / 1018337 , 0.09MB , pdfREACH Declaration of conformity 605 32 G / 1018337 , 0.12MB , pdfRoHS Declaration of conformity 605 32 G / 1018337 , 0.13MB , pdf
