Fastening clip 604, light duty

Item no. 1003046 | EAN 4012195000853

Item no. / Types

For diameter

Product description

Product description

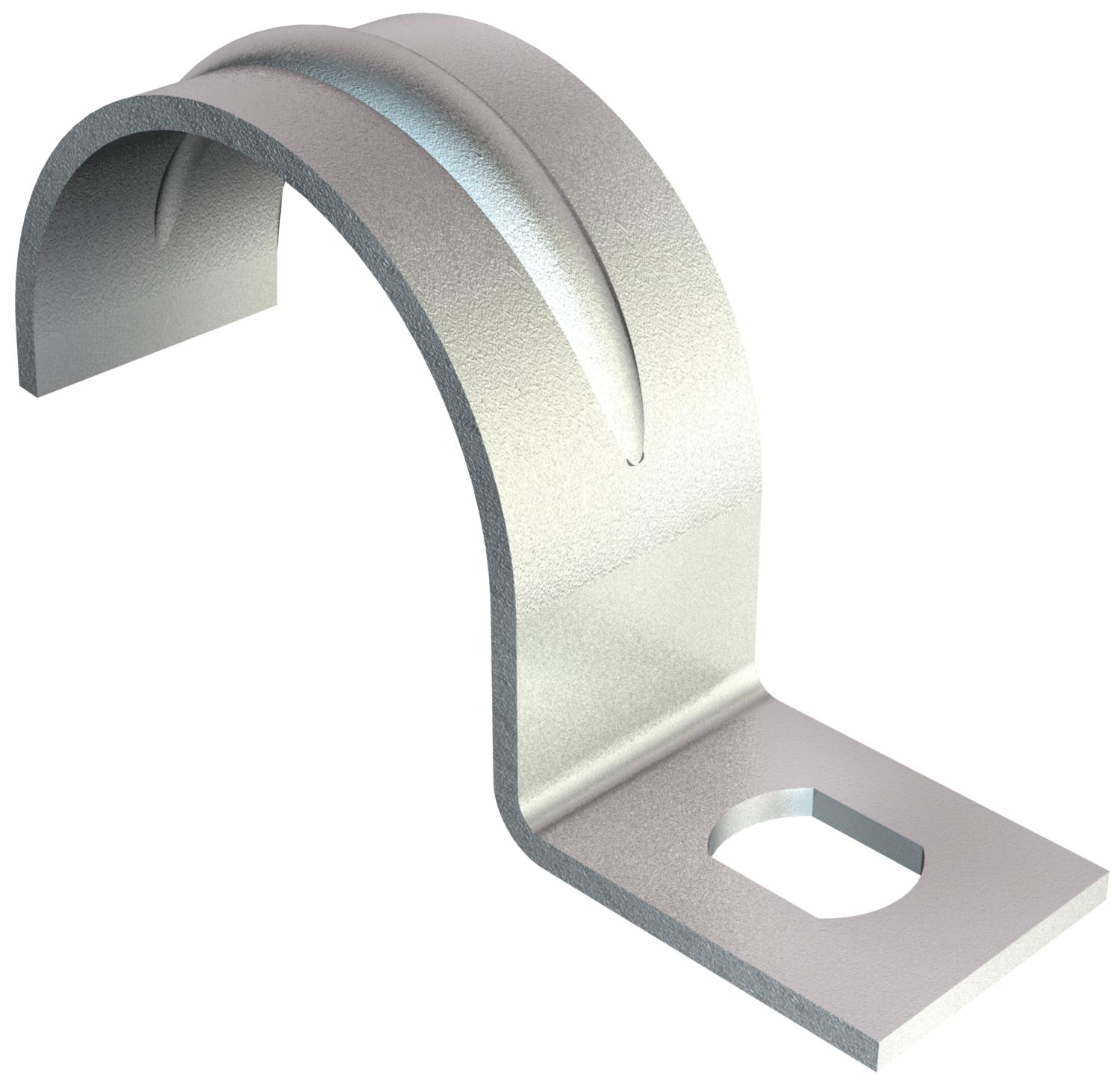

Single-lobe fastening clip for cables and pipes.
* Sizes 3 and 4 are not suitable for nail device
* Sizes 3 to 21 are not suitable for bolt-firing tool

Technical data

Technical data

Dimension	4mm
Distance to the wall	no
Fastening type	Screw hole
For diameter	4
Halogen-free	yes
Hole size	4,5 x 6 mm
Material	Steel
Material thickness	0,7 mm

Nominal diameter	4 mm
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	no
Surface	Electrogalvanized
UV-resistant	yes
Version for	Single-lobe

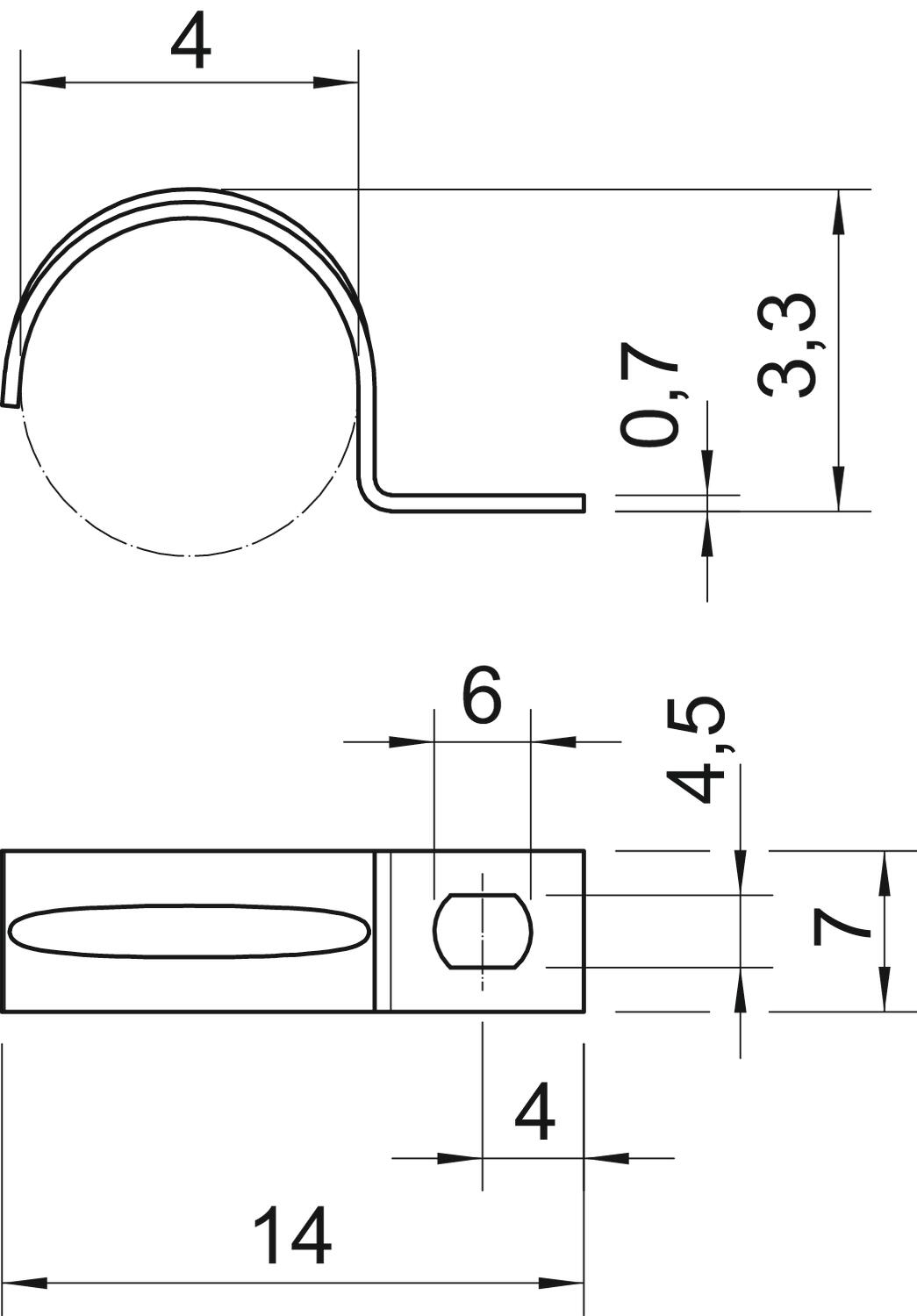

Dimensions

Dimension A	4 mm
Dimension b	7 mm
Dimension d	4,5 mm
Dimension D	4 mm
Dimension e	6 mm
Dimension H	3,3 mm

Dimension L	14 mm
Dimension t	0,7 mm
Height	3,3 mm
Length	14 mm
Width	7 mm

All types

All types

Types	For diameter	Item no.	Quantity	SSU
604 4 G	4	1003046	piece	100 piece
604 6 G	6	1003062	piece	100 piece
604 8 G	8	1003089	piece	100 piece
604 10 G	10	1003100	piece	100 piece
604 13 G	13	1003135	piece	100 piece
604 16 G	16	1003178	piece	100 piece
604 20 G	20	1003208	piece	100 piece
604 25 G	25	1003259	piece	100 piece
604 32 G	32	1003321	piece	100 piece
604 40 G	40	1003402	piece	100 piece
604 47 G	47	1003461	piece	50 piece
