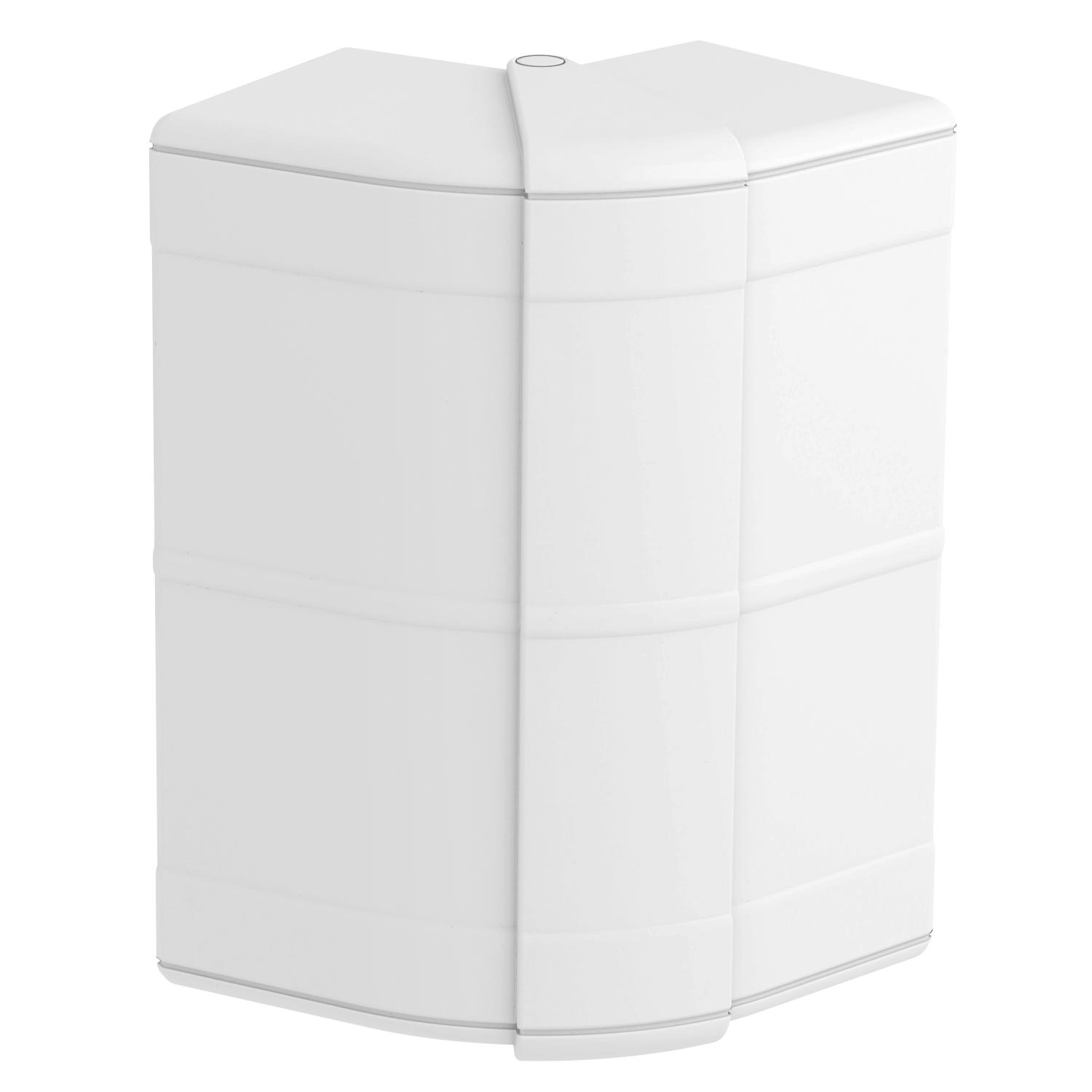

External corner hood, for device installation trunking Rapid 45-2 type 53130

Item no. / Types	6113230 / GK-AH53130RW

Colour	Pure white; RAL 9010

Product description

Product description

External corner for changing the direction of Rapid 45-2 device installation trunking. The fittings can be adjusted between 80‒110°.

Technical data

Angle range, max.	110 mm
Angle range, min.	80 mm
Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,6591 kg CO₂e / 1 Piece
Colour	Pure white; RAL 9010
Cover mounting type	Cross-over

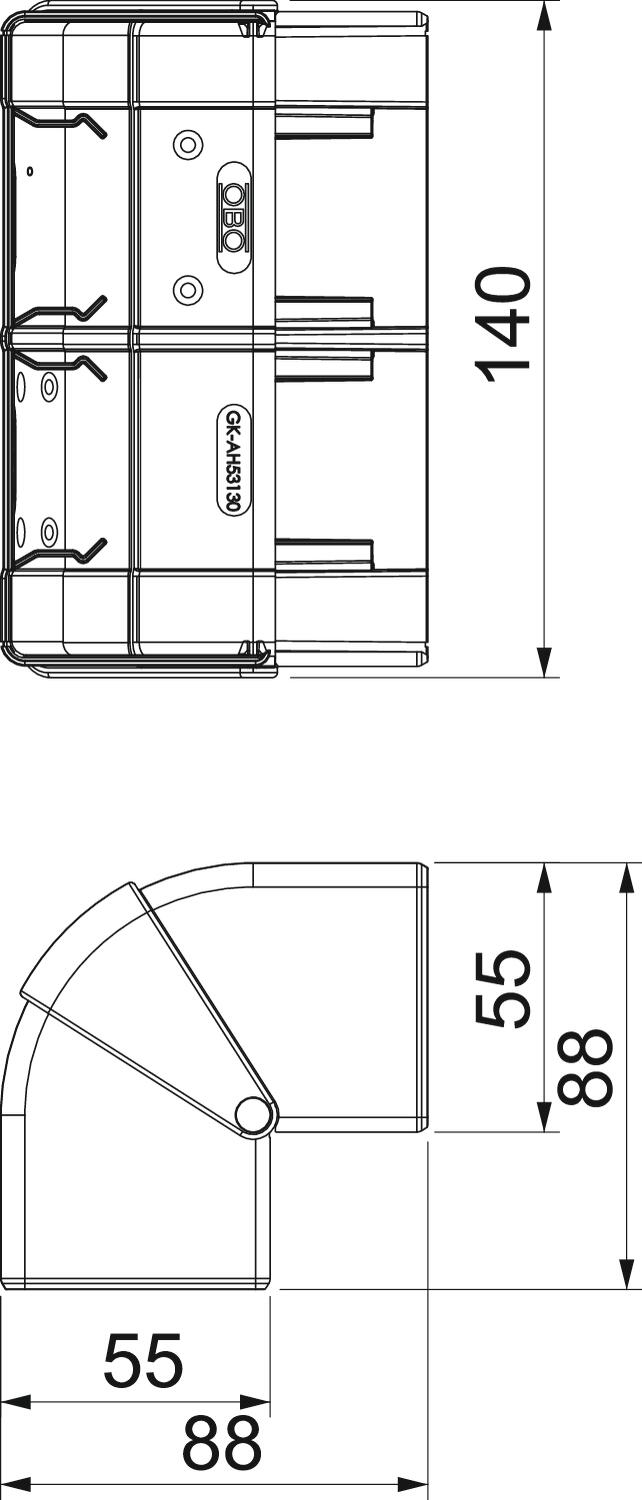

Dimension	140x88x88
Duct connector	no
for duct width	130 mm
for trunking height	53 mm
Halogen-free	yes
Height	55 mm

Length	88 mm
Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base	no
Number of covers	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-15 °C
Protection rating	IP40
Protection rating IK code	IK08
Protective film	no
Symmetrical	yes
Version for	Hood fitting
Width	140 mm
