Divisible cable gland, seal insert, 1 cable, light grey
Item no. 2024942 | EAN 4012196536634
- Product description
-
Product descriptionThe splittable cable gland V-TEC TB.. ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland.
The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.

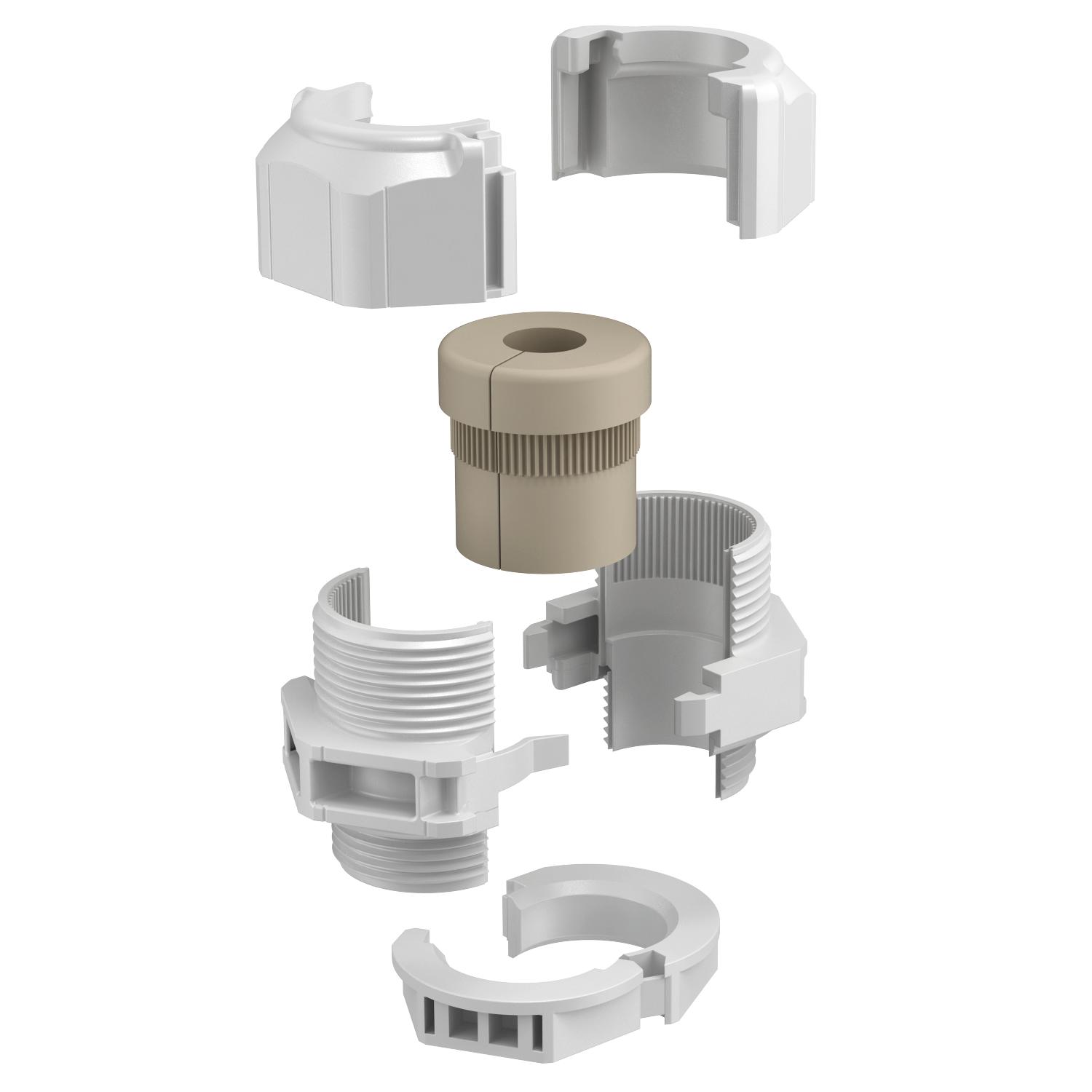

The gland set consists of an intermediate support, a cap nut and the seal. Of course, the split locknut is also in the scope of delivery.
The various sealing inserts provide the option of sealing cables of different cable diameters according to the selected sealing insert. The ideal aiding tool is the pair of spreading pliers which can be used to open the sealing insert. With this tool, inserting the individual cables is quick and easy.
-
- Technical data
-
Technical data
Bend protection no CO2 Footprint (GWP) Cradle-to-Gate 0,0993 kg CO₂e / 1 Piece Colour Light grey Dimension M20 Dimension D 8 mm Dimension E1 (mm) 33,5 mm Dimension E2 30 mm Dimension G M20x1,5 mm Dimension L 30 mm Dimension L max. 30,5 mm Dimension L min. 24,5 mm Dimension L1 10 mm Dimension L2 8,5 mm Dimension L3 8 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 40 mm Impact-resistant yes Length 30 mm Material Polycarbonate Nominal thread size 20 Number of drill holes 1 Permitted temperature range, max. 80 °C Permitted temperature range, min. -20 °C Protection rating IP67 Sealing area D, max. 8 mm Sealing area D, min. 6 mm Sealing insert, multiple no Splittable gland yes Strain relief option no Thread M20 x 1,5 Thread increase 1,5 mm Thread length 10 mm Thread type Metric Type of seal Sealing ring Unstable torque 2 Nm Version for Straight WAF 1 30 mm WAF 2 27 mm Width 29 mm With locknut yes - All types
