Deskbox DB, with fastening clamp, 2 BS sockets, 2 x USB (USB 3.0 Type A)
Item no. 6116905 | EAN 4012196562862
- Product description
-
Product descriptionThe DB Deskbox ensures a direct supply of the workplace with power, data and multimedia technology and is suitable for fixed attachment to a tabletop. The Deskbox is equipped with a connection cable, which runs out of the profile from below. The housing consists of an anodised, silver-coloured aluminium profile.
The Deskbox is equipped with two black British Standard sockets, which are equipped with a 3 m power cable with wire end sleeves at the end of the cable. In addition, two USB connections (USB 3.0, type A) are mounted, each with a 3 m connection cable with USB connector (type A).
The ready-for-connection type DBK Deskbox is particularly suitable for the direct supply of workstations with energy, communication and data technology connections.
The Deskboxes can be mounted simply on a tabletop with 2 fastening vices, without damaging the tabletop. Mounting is possible on a tabletop with a thickness of 8 to 40 mm.
- Technical data
-
Technical data

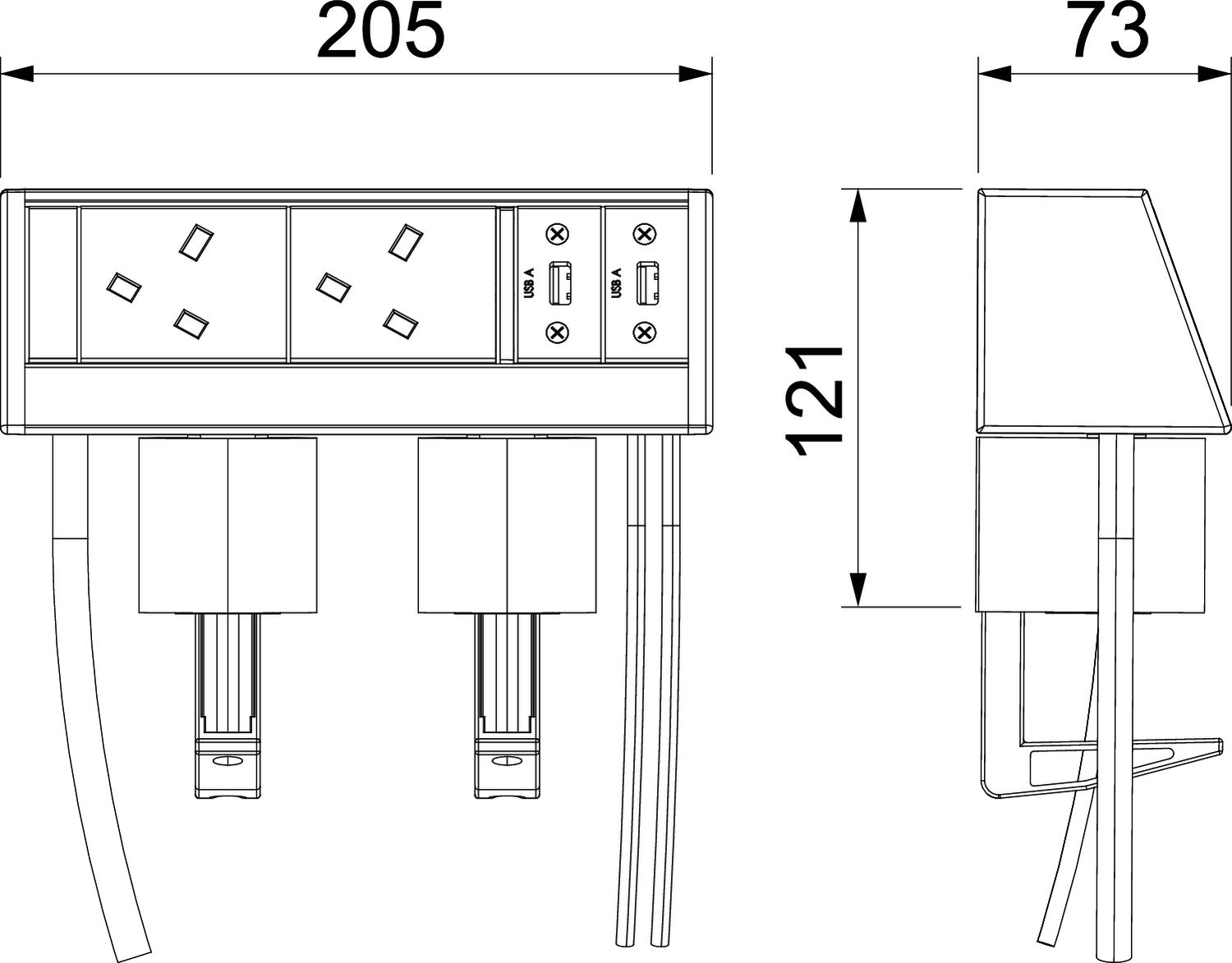

Extendable no Foldable yes Height 121 mm Length 204 mm Length of the supply cable 3 m Material Aluminium Number of USB connections 2 Surge protection no Version for Housing, silver anodised - All types
- Downloads
-
Data sheet DB-MU1 BS SEA1 / 6116905 , 0.37MB , pdfCatalogue Installation systems , 28.45MB , pdfMounting instructions Deskbox DB , 7.80MB , pdfMounting instructions Deskbox DBK2 , 5.74MB , pdfNo invitation to tender text is available for this product.
