Note: This article is discontinued.

Clamp clip, single, plastic pressure trough, A2 58 | 64 | 5

Clamp clip, single, plastic pressure trough, A2

Item no. 1159607 | EAN 4012195064152

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Suitable for all C profile rails with slot width 16–17 mm.
Stainless steel clip and bolt.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.

Technical data

Technical data

Clamping range D, max.	64 mm
Clamping range D, min.	58 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,7802 kg CO₂e / 1 Piece

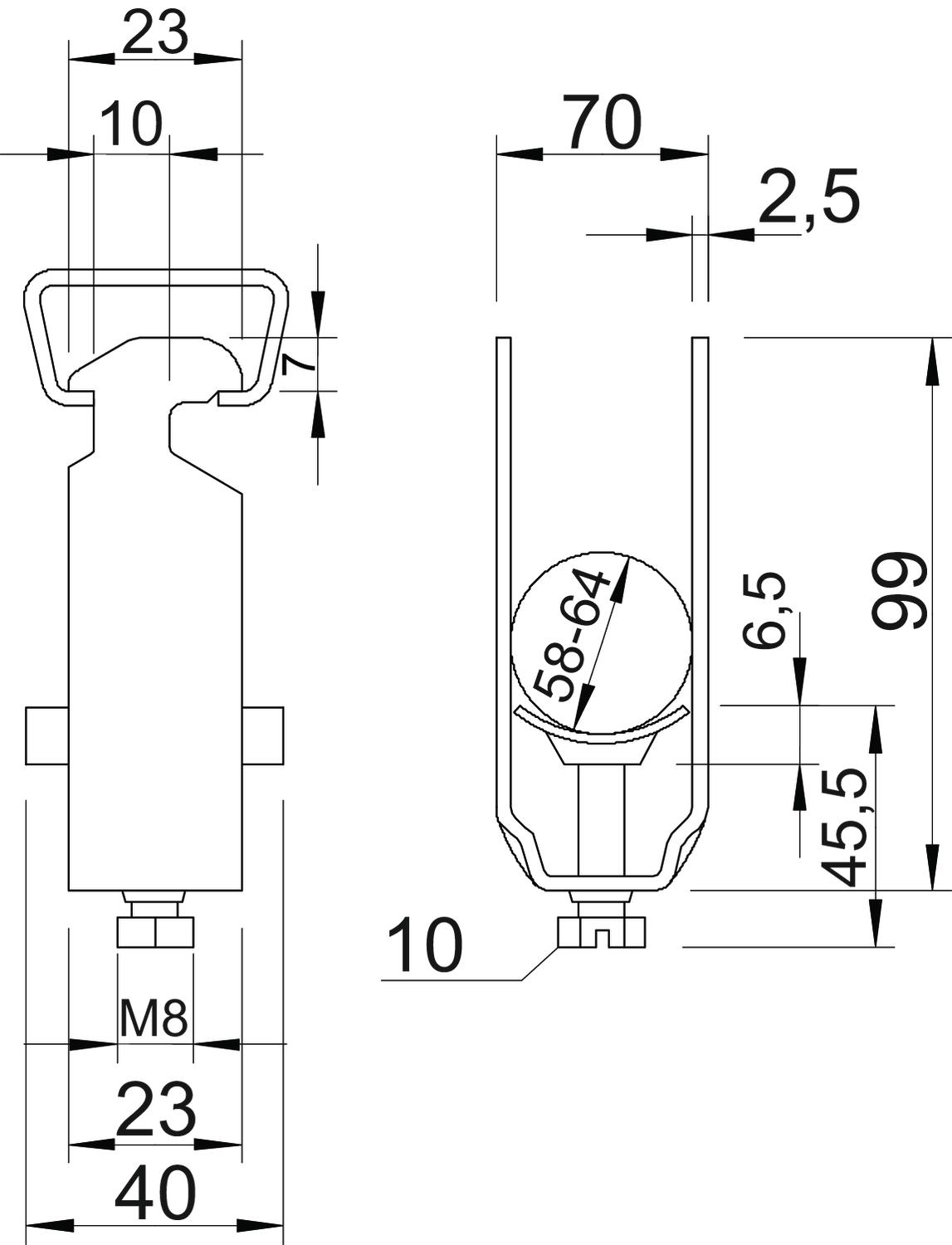

Dimension	58-64mm
Dimension A	23 mm
Dimension B	70 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	99 mm
Dimension L	45,5 mm
Dimension t	2,5 mm
Dimension x	6,5 mm
For pipe diameter, max.	63 mm
For pipe diameter, min.	63 mm
for rail with slot width (with interval), max.	17 mm

for rail with slot width (with interval), min.	16 mm
Halogen-free	yes
Impact-resistant	no
Material	Stainless steel 1.4301
Material addition	Steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface	Bright, treated
Surface addition	hot galvanised
With counter-trough	no
With metal trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056 12 A2	8 mm	12 mm	3 Nm	1159518	piece	50 piece
2056 16 A2	12 mm	16 mm	3 Nm	1159526	piece	50 piece
2056 28 A2	22 mm	28 mm	3 Nm	1159542	piece	50 piece
2056 34 A2	28 mm	34 mm	5 Nm	1159550	piece	50 piece
2056 46 A2	40 mm	46 mm	5 Nm	1159577	piece	25 piece
2056 52 A2	46 mm	52 mm	5 Nm	1159585	piece	25 piece
2056 58 A2	52 mm	58 mm	5 Nm	1159593	piece	25 piece
2056 64 A2	58 mm	64 mm	5 Nm	1159607	piece	15 piece
2056 70 A2	64 mm	70 mm	5 Nm	1159615	piece	15 piece
