Note: This article is discontinued.

Clamp clip, single, A2 metal pressure trough

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Suitable for all C profile rails with slot width 16–17 mm.
Clip, bolt and pressure trough all made of rust-proof stainless steel.

Technical data

Clamping range D, max.	22 mm
Clamping range D, min.	16 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,2876 kg CO₂e / 1 Piece

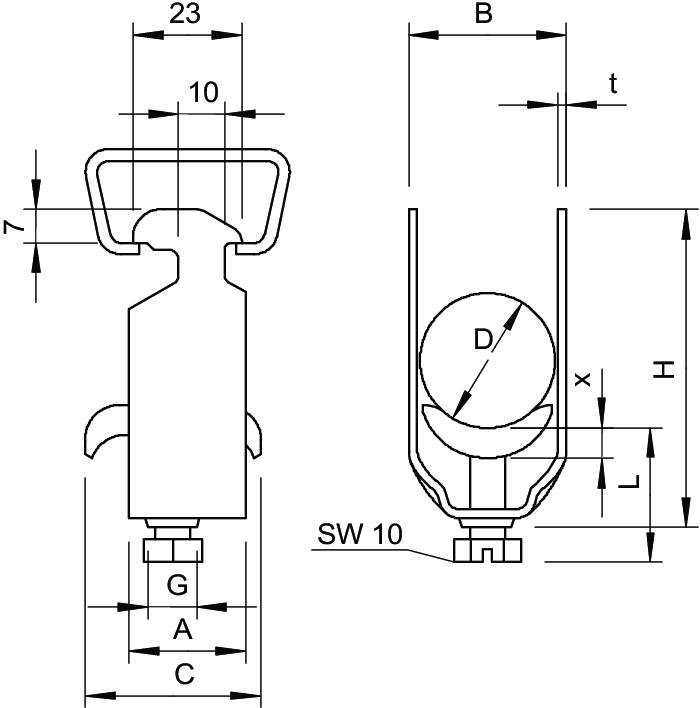

Dimension	16-22mm
Dimension A	23 mm
Dimension B	27 mm
Dimension C	30 mm
Dimension G (mm)	M6
Dimension H	60 mm
Dimension L	32,5 mm
Dimension t	1,5 mm
Dimension x	3,5 mm
for 1 cable H	60 mm
for 1 cable L	32,5
For pipe diameter, max.	20 mm
For pipe diameter, min.	20 mm

for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm
Halogen-free	no
Impact-resistant	no
Material	Stainless steel
Material addition	Rustproof steel
Material of trough	Rustproof steel
Material quality of trough	Stainless steel 304 (1.4301)
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface	Bright, treated
Surface addition	Untreated
With counter-trough	no
With metal trough	yes
With plastic trough	no

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056 M 12 A2	8 mm	12 mm	3 Nm	1159712	piece	50 piece
2056 M 22 A2	16 mm	22 mm	3 Nm	1159722	piece	50 piece
2056 M 28 A2	22 mm	28 mm	3 Nm	1159728	piece	25 piece
2056 M 34 A2	28 mm	34 mm	5 Nm	1159734	piece	25 piece
