90° vertical bend, falling 85 FS
Item no. 7007270 | EAN 4012195711636
- Product description
-

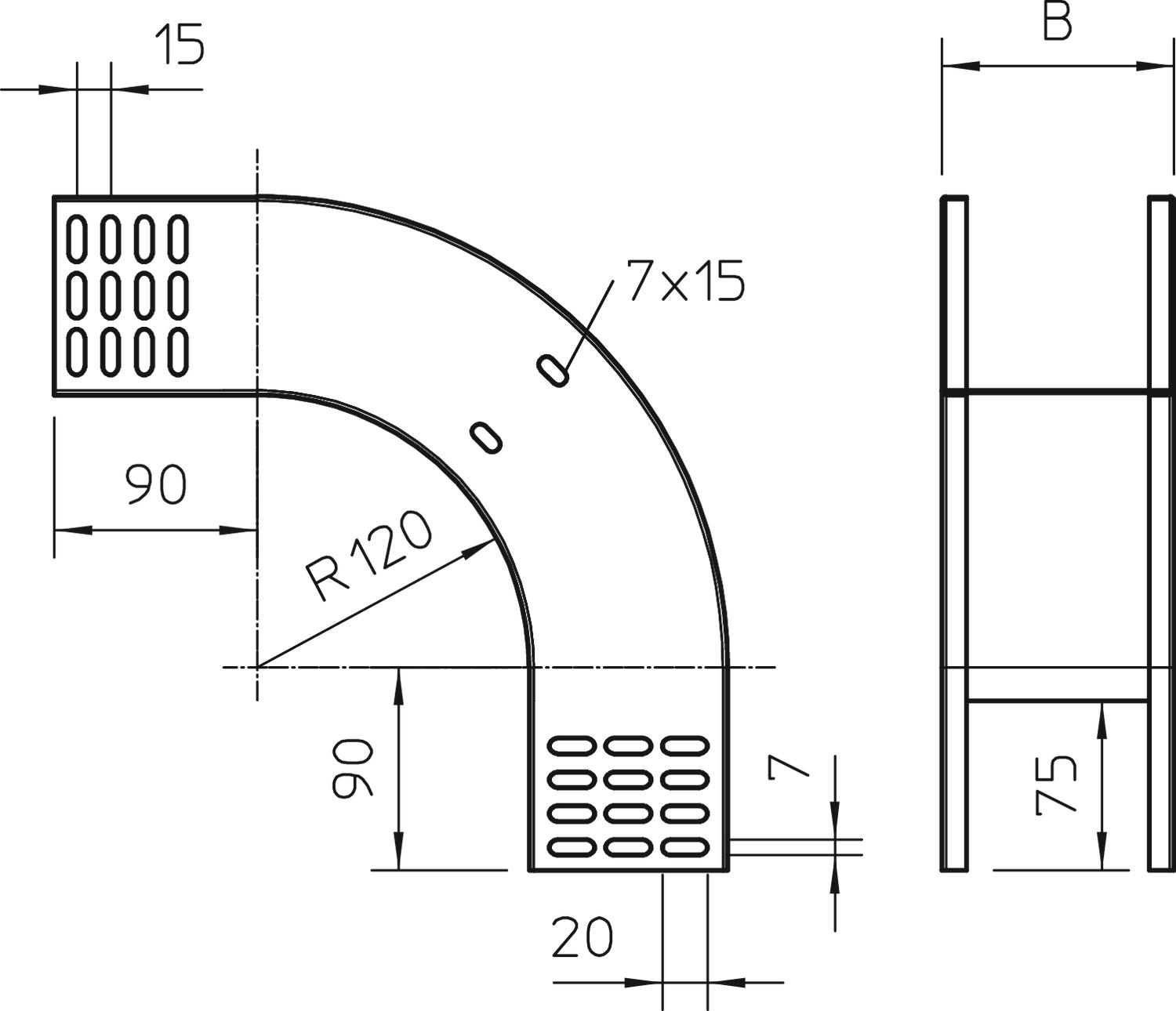

Product description90° vertical bend, falling, for all cable tray types of 85 mm side height.
The vertical bend is pushed over the end of the cable tray and screwed tight.
Fastening materials should be ordered separately.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Vertical, falling CO2 Footprint (GWP) Cradle-to-Gate 3,186 kg CO2e / 1 Piece Colour zinc Connector version Without connectors Dimension 85x100 Dimension B 100 mm Height 85 mm Height 3 in Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 100 mm Width 4 in - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet RBV 810 F FS / 7007270 , 0.21MB , pdfEU declaration of conformity RBV 810 F FS / 7007270 , 0.10MB , pdfUK Declaration of Conformity RBV 810 F FS / 7007270 , 0.09MB , pdfREACH Declaration of conformity RBV 810 F FS / 7007270 , 0.12MB , pdfRoHS Declaration of conformity RBV 810 F FS / 7007270 , 0.12MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
