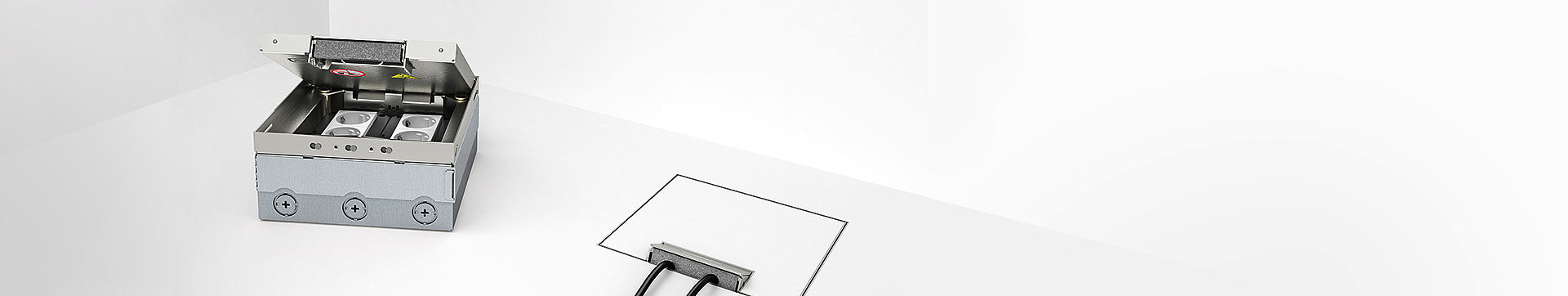

Square floor sockets UDHOME - straight and discreet
Advantages of the UDHOME
- Supplied ready for installation
- Floor socket can be closed, even during use
- Versatile in its applications
- Also suitable for wet care thanks to the tube body lid

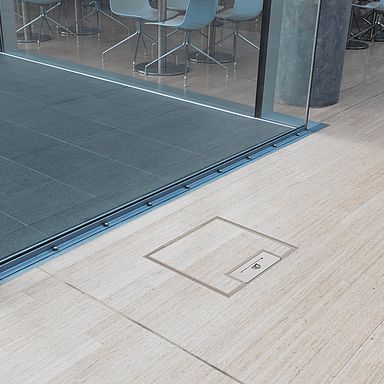

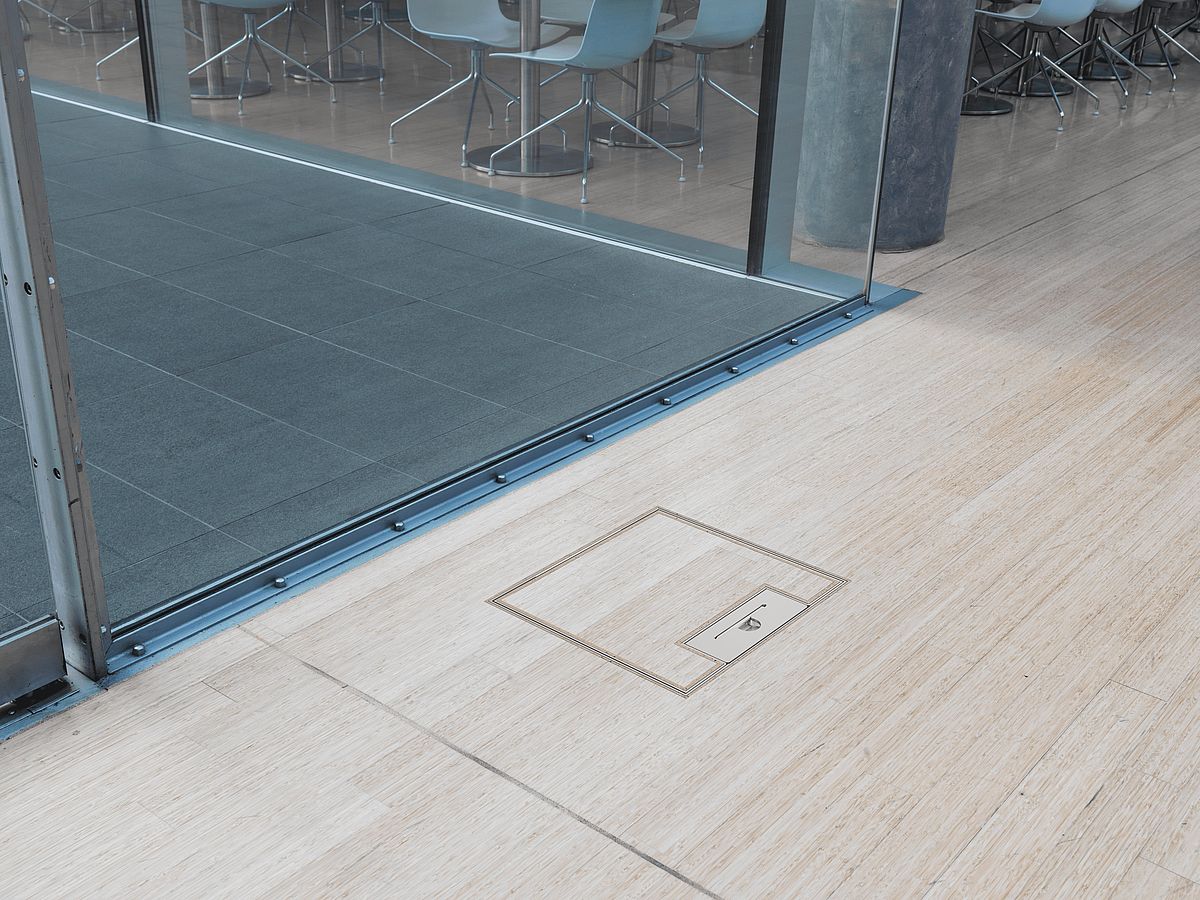

- Floor covering and socket are perfectly flush
- High-quality materials
Frequently asked questions about the UDHOME
What are the basic types?
UDHOME2: Lid with stainless steel cover

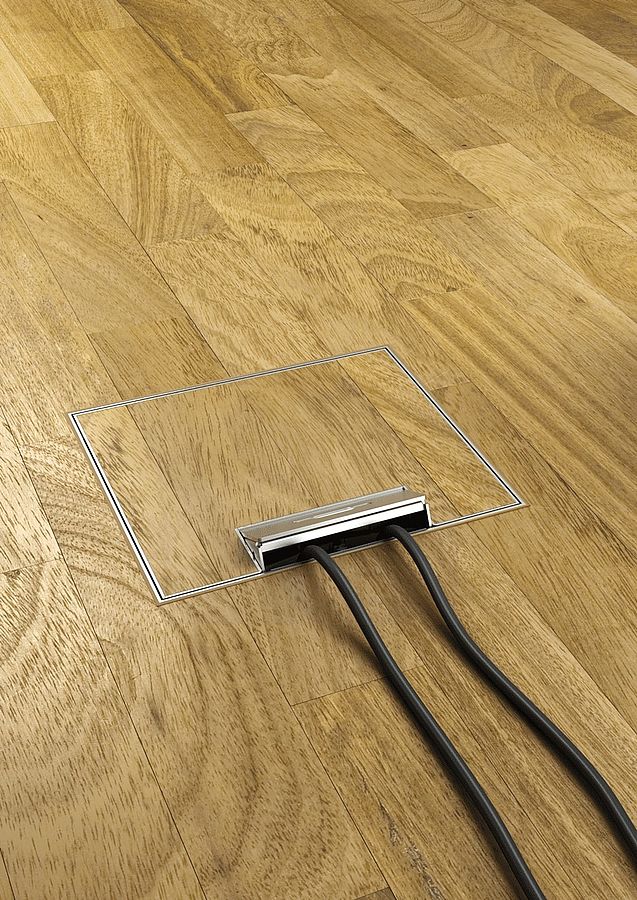

UDHOME4: Lid with floor covering recess
UDHOME2: Lid with floor covering recess
UDHOME9: Lid with floor covering recess

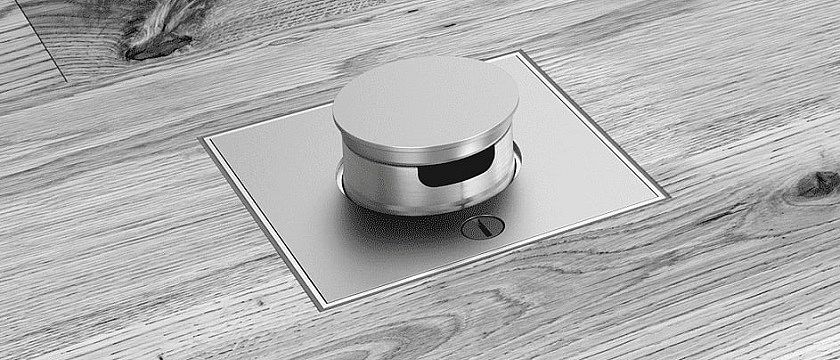

UDHOME2: Tube body
How many installation devices can be installed in the UDHOME?
How high must the floor structure be?

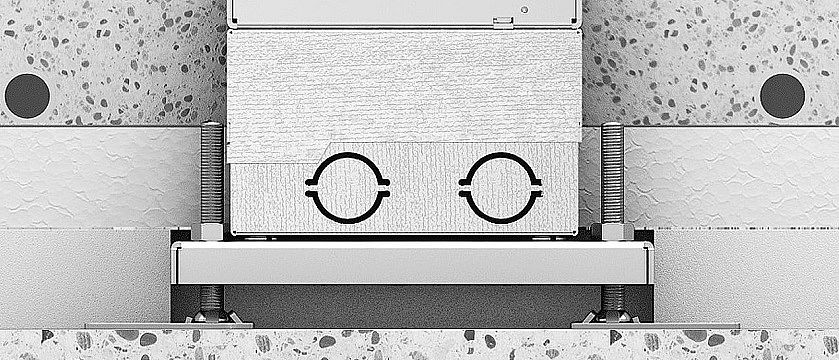

The maximum floor height for installation is 130 mm. Height extensions are available for higher screed constructions. The minimum installation height for the UDHOME series is 95 mm. The internal height adjustment permits adjustment of the cover to the top edge of the finished floor, even after screed laying.
For screed laying, the housing is adjusted to the top edge of the screed, in order to simplify screed work. Supply lines into the UDHOME are run into the floor sockets using flexible installation pipes.

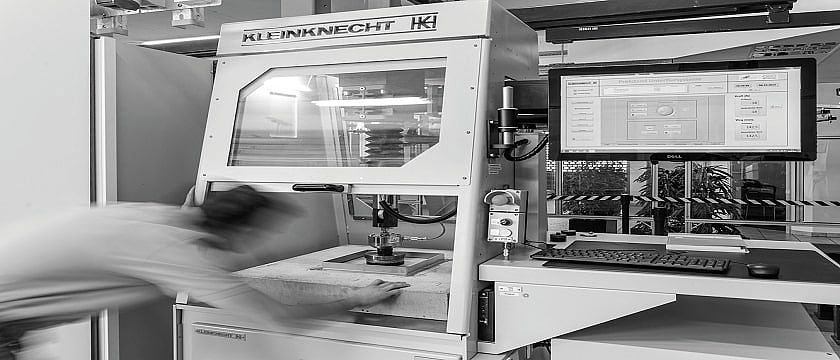

What is the load capacity of the UDHOME?
The UDHOME 2 with tube body is designed for high loads up to 15 kilonewtons and is thus also suitable for heavy-duty applications. The UDHOME 4 and UDHOME 9 are designed for loads of up to 3 kN and can thus be used for all normal applications with plenty of reserve. All the UDHOME solutions fulfil the standards of EN 50085-2-2.
What types of floor care are possible?
The product spectrum runs for uses from dry to wet-care floors. The UDHOME2 as a tube body version with its IP protection is suitable for use in wet-care cavity and screed floors. The UDHOME4 and 9 are only suitable for dry and moist care.
Which floor covering is suitable for the product?
The trunking system is suitable for all cut-resistant floor coverings such as parquet and plastic coverings of up to 25 mm thickness.
