Mesh cable tray GR-Magic® 55 G

Mesh cable tray GR-Magic® 55 G

Type GRM 55 100 G
|
Item no. 6001442
|
EAN 4012196858552
Show all variants
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
yes

Smallest selling unit: 3 m

m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

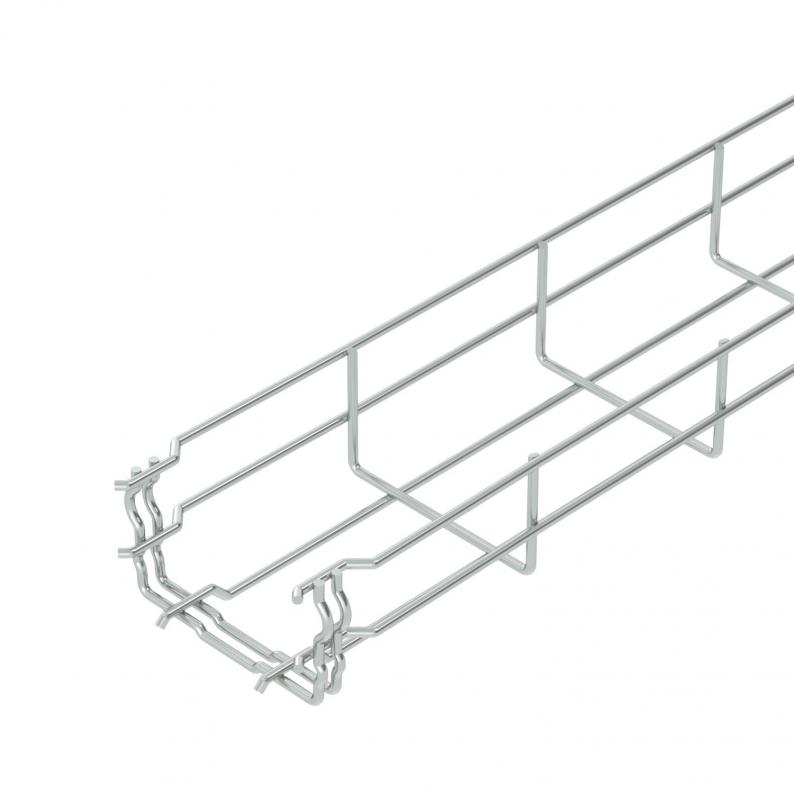

Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

You can find detailed information regarding the UL classification in the respective certification.

No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 55/50 = 20 x 100 mm). Tested for the maintenance of electrical function according to DIN 4102 Part 12 (type: GRM 55 200 4.8 G, GRM 55 300 G, GRM 55 400 G, mounting work and parameters according to valid test certificate).

Tested for installation above suspended fire protection ceilings (type: GRM 55 100 G, GRM 55 200 G, GRM 55 300 G, GRM 55 400 G, fire load 30 minutes, mounting work and parameters according to fire protection reports).

  • RINA 1861, Ship Classification, Certification and Services
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Underwriters Laboratories Inc., USA
  • Underwriters Laboratories Inc., USA
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

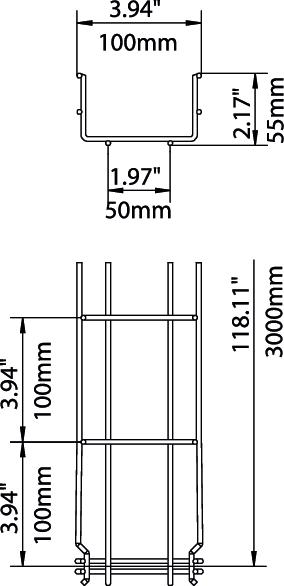

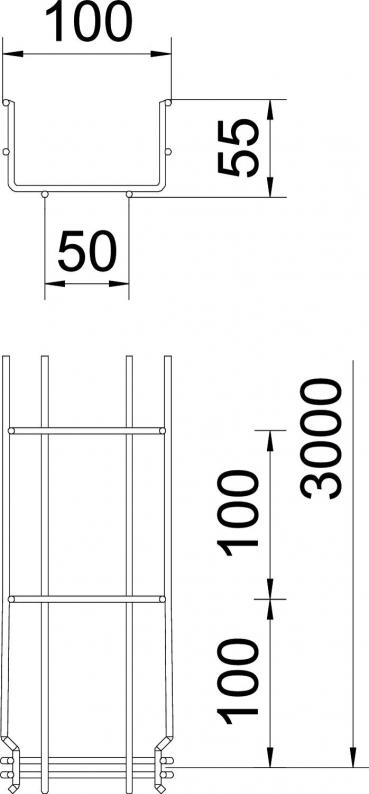

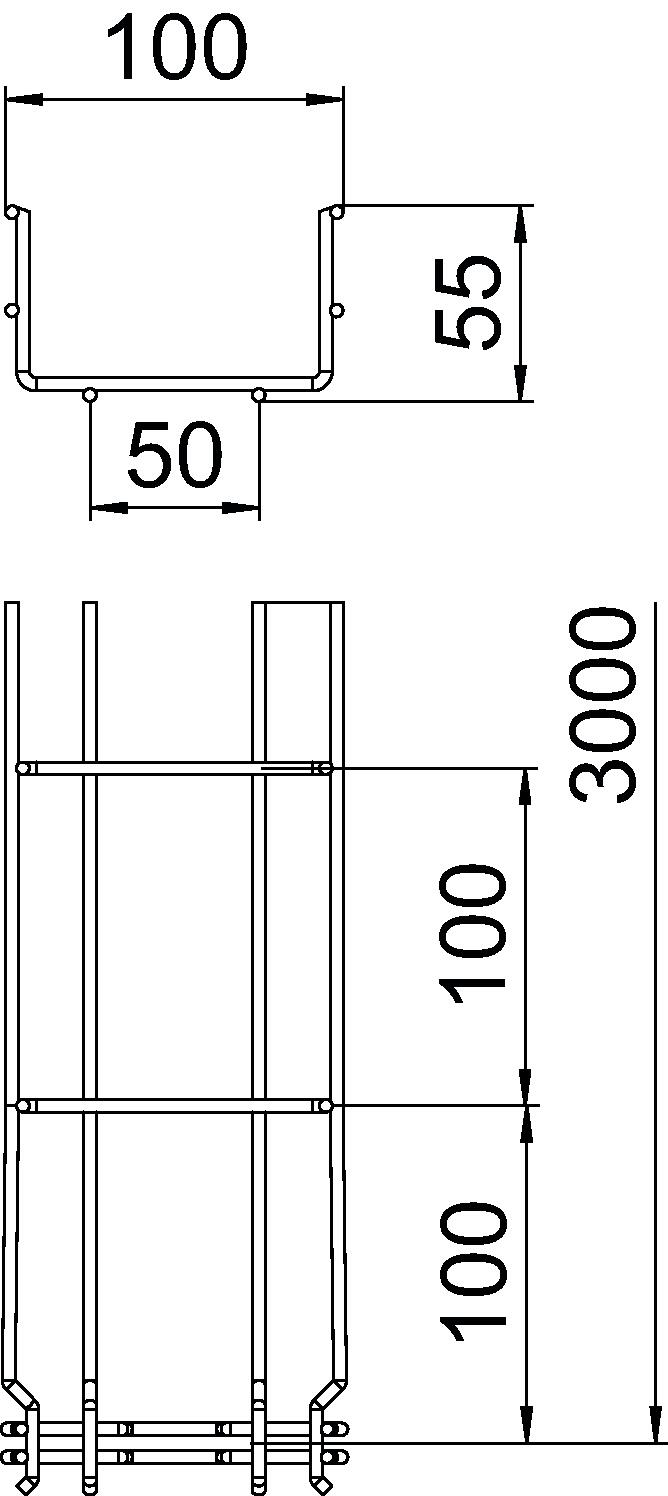

Dimensions

Length3000 mm
Width100 mm
Height55 mm
Dimension B100 mm
Dimension H58 mm

Technical data

Maintain electrical functionsyes
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section40 cm²
Rustproof steel, pickledno
Usable cross-section4000 mm²
Integrated partitionWithout
Screwless connectoryes
Profile shapeU-shaped
Wire diameter3,9 mm
Dimension55x100x3000
SurfaceElectrogalvanized
MaterialSteel
Colourzinc
Fire protectionMaintenance of electrical function of cable-specific support structure, Use of fire protection ceilings
Load test type according to IEC 61537Type II
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate1,3562 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m0,1 kN/m
Support spacing 2.5 m0,1 kN/m
Support spacing 1.0 m0,35 kN/m
Support spacing 1.5 m0,2 kN/m
Load diagram, GR-Magic mesh cable tray, type GRM 55

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (10)
Declarations (5)
Certificates (8)
Instructions and Aid (3)
Product images (3)
3D data downloads (2)
Tender specifications (2)

Accessories

System accessories
Mounting accessories
Type
DGRR 100 FS

Smallest selling unit: 3 m

m

Item no. 6016715

Corner connector G
Type
GEV 36 G

Smallest selling unit: 20 piece

piece

Variants

Width
Usable cross-section
Wire diameter
GRM 55 100 G
Item no.
6001442
Length
3000
Width
100
Height
55
Maintain electrical functions
yes
Usable cross-section
40
Wire diameter
3,9
GRM 55 200 G
Item no.
6001446
Length
3000
Width
200
Height
55
Maintain electrical functions
yes
Usable cross-section
87
Wire diameter
3,9
GRM 55 300 G
Item no.
6001448
Length
3000
Width
300
Height
55
Maintain electrical functions
yes
Usable cross-section
129
Wire diameter
4,8
GRM 55 400 G
Item no.
6001450
Length
3000
Width
400
Height
55
Maintain electrical functions
yes
Usable cross-section
175
Wire diameter
4,8
