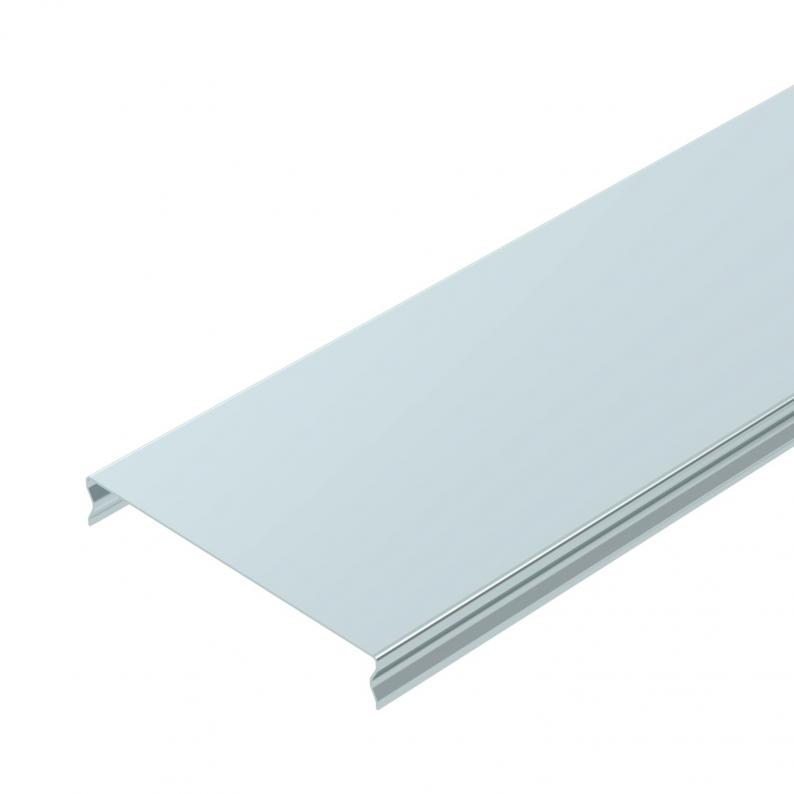

Cover for mesh cable tray, latchable FS

Cover for mesh cable tray, latchable FS

Type DGRR 100 FS | Item no. 6001842 | EAN 4012196687121

Show all variants
Item no. / Type
Length
Width
Plate thickness

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Lockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for interior areas without specific requirements.



With transverse bead from 400 mm width.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

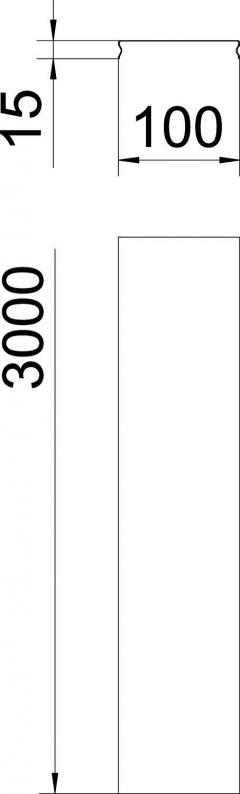

Dimensions

Length3000 mm
Width98 mm
Height15 mm
Dimension B98 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness0,75 mm
Suitable for mesh cable trayyes
Suitable for cable ladderno
Suitable for cable trayno
Fastening typeLocking
Dimension100x3000
SurfaceStrip galvanized
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate2,0189 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Accessories

Mounting accessories
Type
DKU A2

Smallest selling unit: 20 piece

Variants

Width
DGRR 50 FS
Item no.
6001840
Length
3000
Width
50
Plate thickness
0,75
DGRR 100 FS
Item no.
6001842
Length
3000
Width
98
Plate thickness
0,75
DGRR 150 FS
Item no.
6001844
Length
3000
Width
148
Plate thickness
0,75
DGRR 200 FS
Item no.
6001846
Length
3000
Width
198
Plate thickness
0,75
DGRR 300 FS
Item no.
6001848
Length
3000
Width
298
Plate thickness
0,75
DGRR 400 FS
Item no.
6001850
Length
3000
Width
398
Plate thickness
0,75
DGRR 500 FS
Item no.
6001852
Length
3000
Width
498
Plate thickness
0,75
DGRR 600 FS
Item no.
6001854
Length
3000
Width
598
Plate thickness
0,75
