Corner connector G

Corner connector G

Type GEV 36 G | Item no. 6016715 | EAN 4012196307876

Show all variants
Item no. / Type
6016715 / GEV 36 G

Smallest selling unit: 20 piece

DescriptionTechnical dataDownloadsVariants

Description

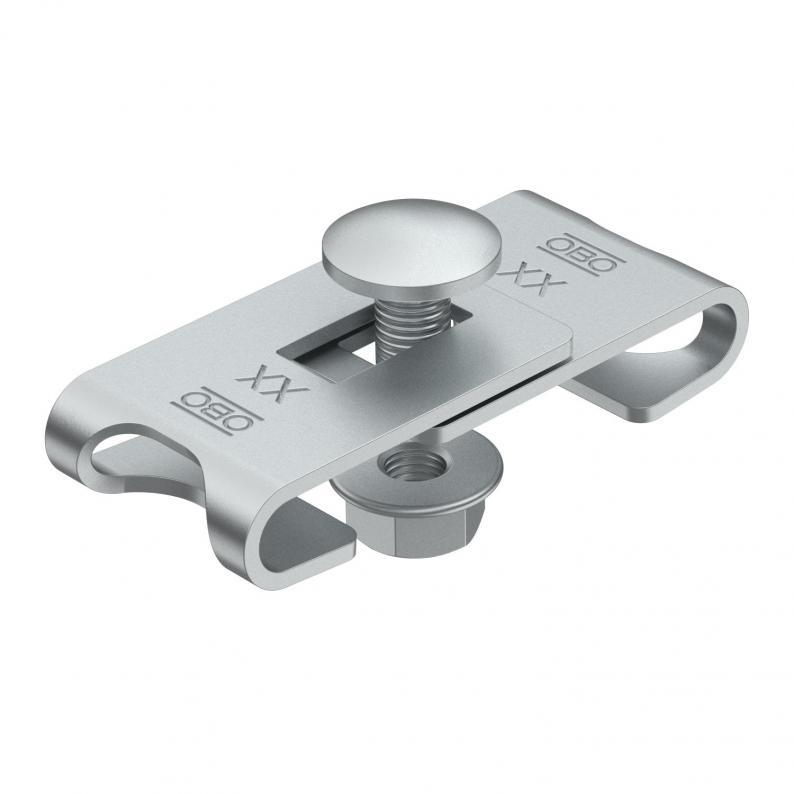

Corner connector for the creation of mesh cable tray bend elements.

Including FRS M6 x 12 bolt with flange nut.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
  • C-mesh cable tray, slant height 50mm
  • CO₂ footprint (PCF)

Technical data

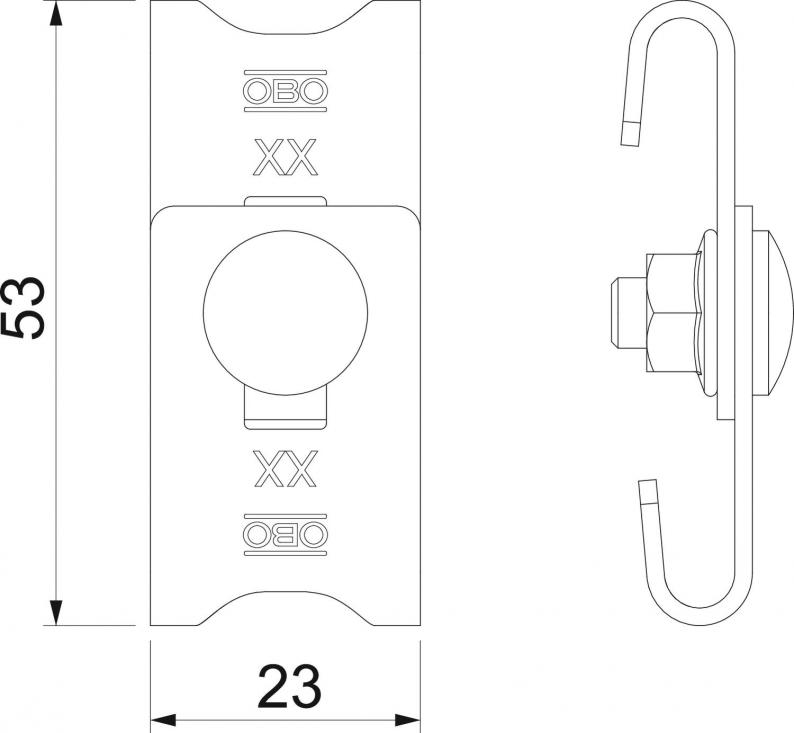

Dimensions

Length56 mm
Width23 mm
Height16 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Suitable for mesh cable trayyes
Suitable for cable ladderno
Suitable for cable trayno
Dimension42-54 x 23
Suitable for mesh cable tray wire, max.4,9 mm
Suitable for mesh cable tray wire, min.3,9 mm
Version forCorner connector
Connection typeScrew connector
SurfaceElectrogalvanized
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate0,0733 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

GEV 36 G
Item no.
6016715
Width
23
