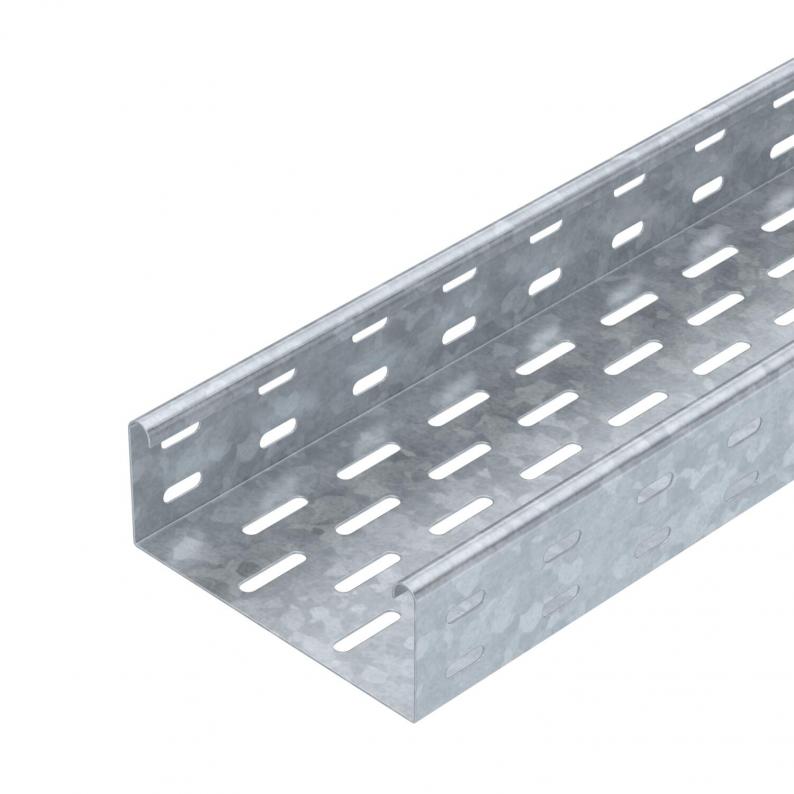

Cable tray MKS 60 FT

Cable tray MKS 60 FT

Type MKS 615 FT
|
Item no. 6055559
|
EAN 4012196387915
Show all variants
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Hot-dip galvanised
Material
Steel

Smallest selling unit: 3 m

m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

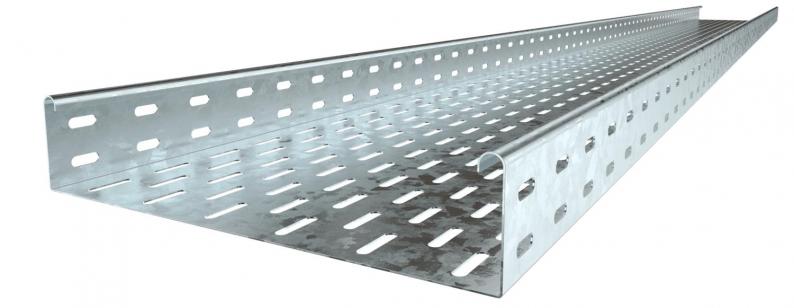

MKS 60 = Medium-duty cable tray system with a side height of 60 mm.


Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width150 mm
Height60 mm
Dimension B150 mm
Dimension W150 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section88 cm²
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section8800 mm²
With coverno
Dimension60 x 150
Dimension60x150x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate5,3645 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m1 kN/m
Support spacing 2.5 m0,5 kN/m
Support spacing 1.75 m1,25 kN/m
Support spacing 1.5 m1,5 kN/m
Load diagram, cable tray, type MKS 60

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Certificates (1)
Instructions and Aid (5)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories

Item no. 6067603

Straight connector FT
Type
RLVK 60 FT

Smallest selling unit: 10 piece

piece

Item no. 6036132

45° bend 60 FT
Type
RB 45 615 FT

Smallest selling unit: 1 piece

piece

Item no. 6036592

90° bend 60 FT
Type
RB 90 615 FT

Smallest selling unit: 1 piece

piece

Variants

Width
MKS 615 FT
Item no.
6055559
Length
3000
Width
150
Maintain electrical functions
no
Plate thickness
1
Surface
Hot-dip galvanised
Material
Steel
MKS 620 FT
Item no.
6055575
Length
3000
Width
200
Maintain electrical functions
no
Plate thickness
1
Surface
Hot-dip galvanised
Material
Steel
