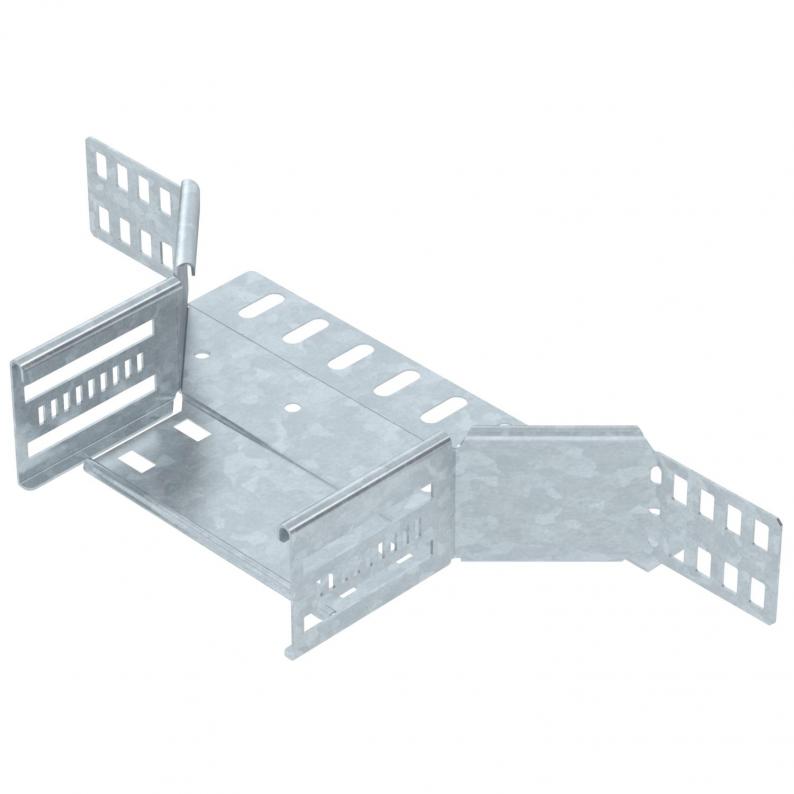

Add-on tee 60 FT

Add-on tee 60 FT

Type RAA 615 FT | Item no. 6042213 | EAN 4012197342395

Show all variants
Item no. / Type
Width
Colour
zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Add-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width150 mm
Height60 mm
Dimension B150 mm

Technical data

Maintain electrical functionsyes
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness0,8 mm
NATO hole patternno
Material thickness, floor plate0,8 mm
Departing width150 mm
Rail thickness1,25 mm
Permitted temperature range, max.120 °C
Permitted temperature range, min.-20 °C
Dimension60x150
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemscrewed/clamped
Recommended quantity of bolts10 St.
CO2 Footprint (GWP) Cradle-to-Gate1,3629 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Instructions and Aid (5)
Product images (2)
Tender specifications (2)

Accessories

Mounting accessories
Type
DOP A2

Smallest selling unit: 10 piece

Type
FRSB 6x12 F

Smallest selling unit: 100 piece

Variants

Width
RAA 610 FT
Item no.
6042211
Width
100
Colour
zinc
RAA 615 FT
Item no.
6042213
Width
150
Colour
zinc
RAA 620 FT
Item no.
6042215
Width
200
Colour
zinc
RAA 630 FT
Item no.
6042217
Width
300
Colour
zinc
RAA 640 FT
Item no.
6042219
Width
400
Colour
zinc
RAA 650 FT
Item no.
6042221
Width
500
Colour
zinc
RAA 660 FT
Item no.
6042223
Width
600
Colour
zinc
