Electrical infrastructure for healthcare
Best-possible supply guaranteed
The healthcare sector places particular requirements on electrical installations: Here, not only functional but also hygienic standards must be complied with. In addition, a reliable supply of the medical devices with power and data is essential, in order to allow the best-possible supply of the patients.
OBO solutions secure a high-performance electrical infrastructure in doctors’ surgeries and hospitals, and in care homes and assisted living. In this way, we help healthcare facilities to improve the efficiency of their processes, meaning that both patients and medical personnel can receive the optimum technical support.
OBO solutions for healthcare:
- Magic® cable trays: Large volumes of cables run for kilometres through the multi-layered building complexes of hospitals. Of key importance is the sufficient ventilation of the power and data cables. This is not a problem for the Magic® cable trays, whose tray bases are more than 30% perforated. The high amount of holes means that they can also be used beneath sprinkler systems. Installed above fire protection ceilings, the Magic® trays, which are suitable for the maintenance of electrical function, make a major contribution to the securing of escape and rescue routes in case of fire.
- Antibacterial sheet steel and aluminium trunking: OBO sheet steel and aluminium trunking can be coated with a special power coating, which has an antibacterial action, even against tough germs. They are suitable for use in doctors’ surgeries, hospitals or care facilities, where they can help to reduce the risk of infection.
- Cable systems approved for the maintenance of electrical function: Together with the special cables for the maintenance of electrical function, the Magic® cable tray system forms cable systems tested and approved for the maintenance of electrical function in case of fire. This means that key systems, such as escape route lighting, alarm and signal systems or fire brigade lifts, can continue to function for up to 90 minutes, even if there is a fire. Essential minutes for the safe evacuation of injured people from the building!
- Lightning and surge protection: According to the lightning protection risk analysis, hospitals are evaluated as having the highest protection requirements. This protection is offered by the OBO lightning and surge protection systems, whose interactions are coordinated perfectly. These include air-termination and conductor systems, equipotential bonding systems, earthing systems and integrated lightning and surge protection.
Product highlights for electrical infrastructure for healthcare
No matter where in the world you want to implement a project, our products are available to you. Simply use our contact form and we will be happy to advise you.
PYROLINE® Con D fire protection duct
PYROCOMB® Intube pipe shell, Ø 120 mm
FireBox T100, with plug-in seals, for data technology, 4x8
Vertical ladder, SLM50
Strain relief on three sides, empty housing, internal height 175 mm
Combination arrester V50, 3-pin + NPE with remote signalling, 280 V

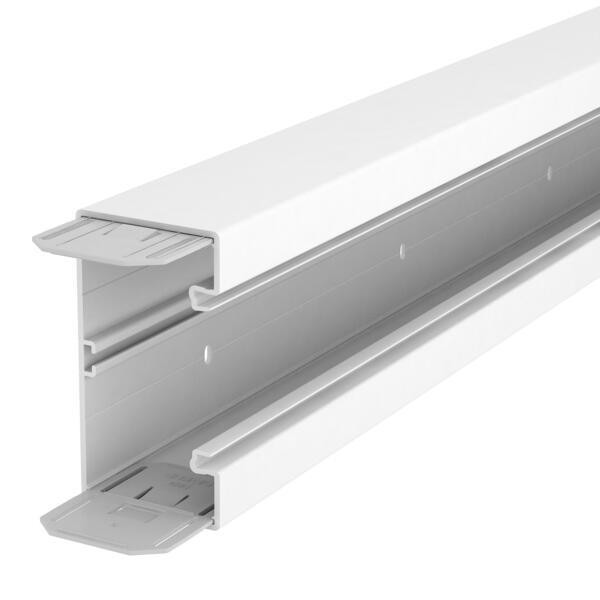

Device installation trunking Rapid 80, trunking width 130, trunking height 70
Height-adjustable heavy-duty cassette for tube body RKFNSL, nominal size 9, stainless steel
Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 80 mm, pure white
isCon® conductor, Professional Plus, black
RKS-Magic® 60 FS cable tray
PYROPLUG® MagicBox, four-sided, interior height 60 mm
OKB system seamlessly provides treadmills with power and data
OBO supplied its OKB brush bar trunking system for the Enjoy Fitness Studio. The OKB system was selected as it is the ideal solution to supply the treadmills with power and data.
AZ Delta hospital, Belgium
OBO delivered a number of products for the new AZ Delta hospital, meaning that mesh cable trays, cable trays, service outlets and T60 junction boxes can be found at various locations within the new hospital campus.
