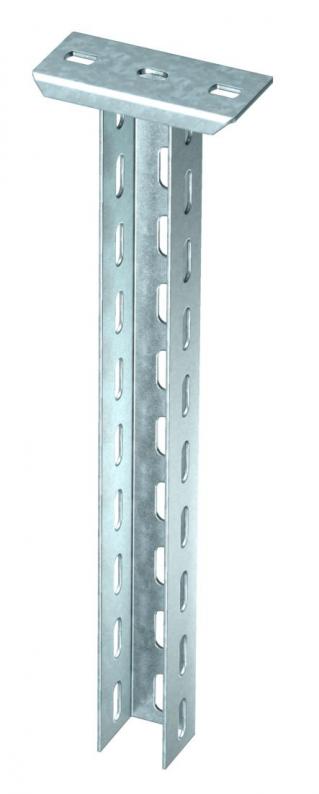

Type US 5 K 30 FT | Item no. 6341535 | EAN 4012196536719

Show all variants
Item no. / Type
Length
Colour
zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

U support of dimensions 50 x 50 mm with welded head plate.

For fastening to horizontal concrete ceilings and steel girders. For bracket widths of 400 mm or more, or if the bracket is mounted at the end of a suspended support, we recommend the use of the spacer, type DSK 45.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

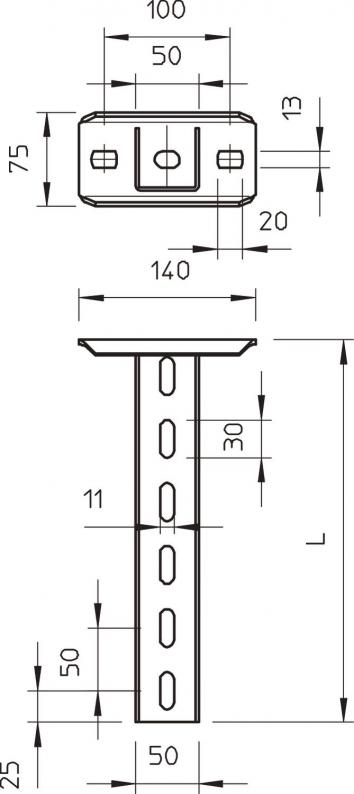

Dimensions

Length300 mm
Width50 mm
Height50 mm
Dimension L300 mm

Technical data

Maintain electrical functionsyes
Material thickness2,5 mm
With toothingno
Version forU profile
Maximum tensile load10 kN
Bracket length 2005,75 kN
Bracket length 4003,1 kN
Bracket length 6002,2 kN
Dimension50x50x300
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate2,5727 kg CO2e / 1 Piece
Load diagram, U support, type US 5 K

Bending of the end of the suspended support at permitted bracket load

Permitted bracket load in kN without man load

Bracket length in mm

Load curves with support lengths in mm
