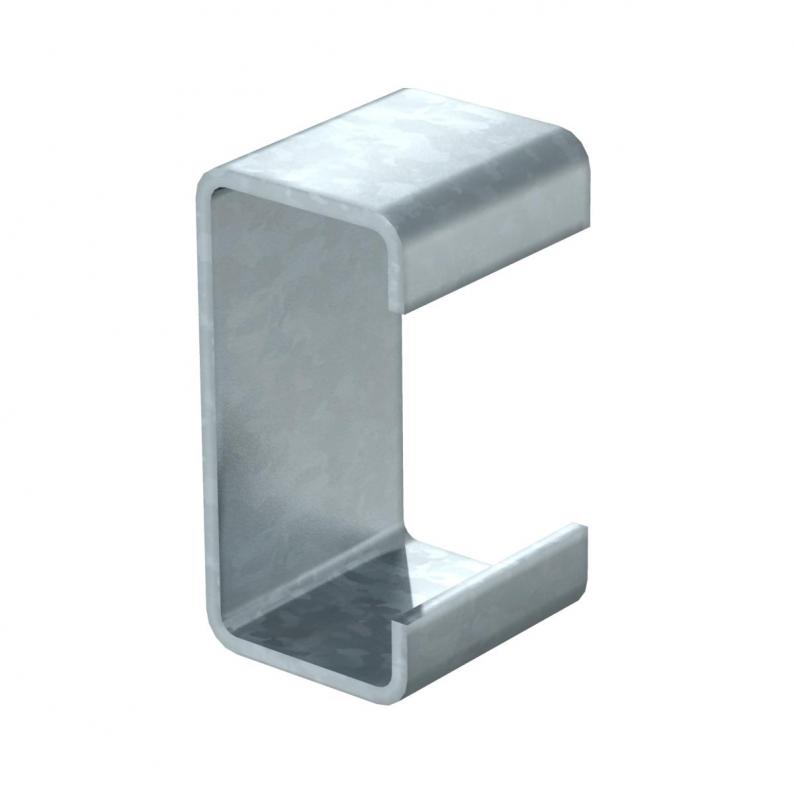

Spacer FT
Type DSK 45 FT | Item no. 6416500 | EAN 4012196202812
Item no. / Type
6416500 / DSK 45 FT
Colour
zinc
Smallest selling unit: 20 piece
20piece
Description
Spacer for use in US 5 support or in the head plate, type KU 7 VQP.
For static reasons, the spacer is always used to increase stability to prevent the support from deforming when the bracket is tightened with the hexagonal bolts.
Technical data

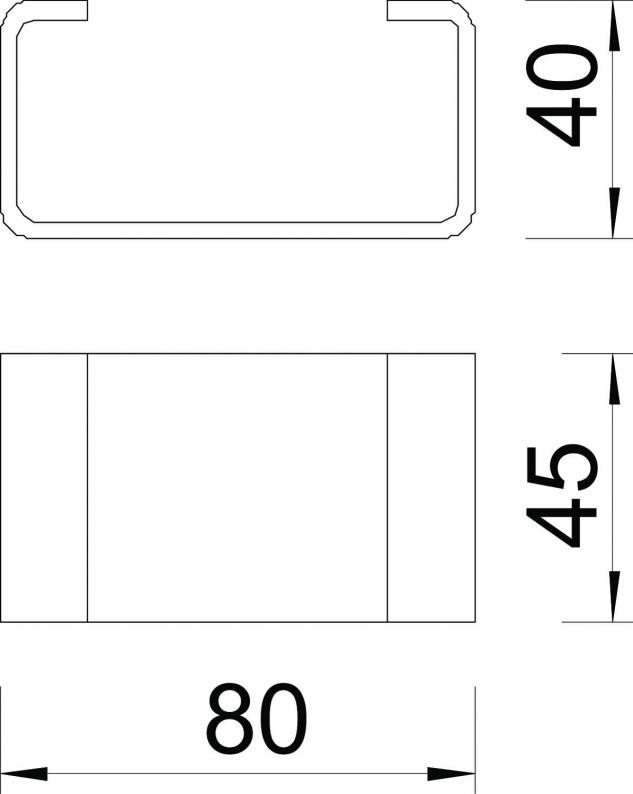

Dimensions
| Length | 80 mm |
|---|---|
| Width | 45 mm |
| Height | 40 mm |
Technical data
| With screw accessories | no |
|---|---|
| Dimension | 80 x 45 x 40 x 2,5 |
| Suitable for profile shapes | U profile |
| Dimension | 80x45x40 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4034 kg CO2e / 1 Piece |
