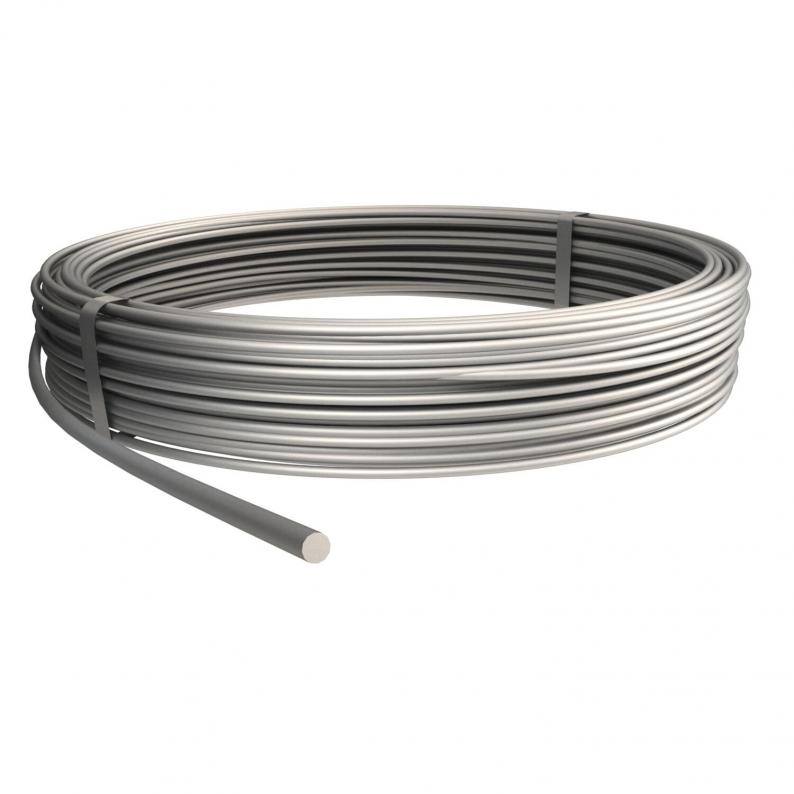

Round conductor, aluminium
Type RD 8-ALU-T | Item no. 5021294 | EAN 4012195901273
Item no. / Type
Diameter
Normal ring (ca. kg)
Cross-section
Nomal ring (approx. m)
Material
Aluminium
Smallest selling unit: 150 m
150m
Description
• Can be used as a conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 8 ALU: Semi-hard (E-AlMgSi0.5 corresponds to DIN 48801)
• RD 8 ALU-T: Can be subjected to torsion (E-AlMgSi0.5 corresponds to DIN 48801)
• RD 10 ALU: Pure aluminium (E-Al corresponds to DIN 48801)
• AL and ALMgSi may not be routed directly on, in or under plaster, mortar or concrete, nor routed in the earth
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 8 ALU: Semi-hard (E-AlMgSi0.5 corresponds to DIN 48801)
• RD 8 ALU-T: Can be subjected to torsion (E-AlMgSi0.5 corresponds to DIN 48801)
• RD 10 ALU: Pure aluminium (E-Al corresponds to DIN 48801)
• AL and ALMgSi may not be routed directly on, in or under plaster, mortar or concrete, nor routed in the earth
Technical data
Technical data
| Diameter | 8 mm |
|---|---|
| Normal ring (ca. kg) | 20 |
| High voltage-resistant, insulated version | no |
| Number of individual wires | 1 |
| Material property | Soft |
| Material jacket | Without |
| Cross-section | 50 mm² |
| Nomal ring (approx. m) | 150 |
| Dimension | 8mm |
| Material | Aluminium |
| Length tolerance ± | 5 % |

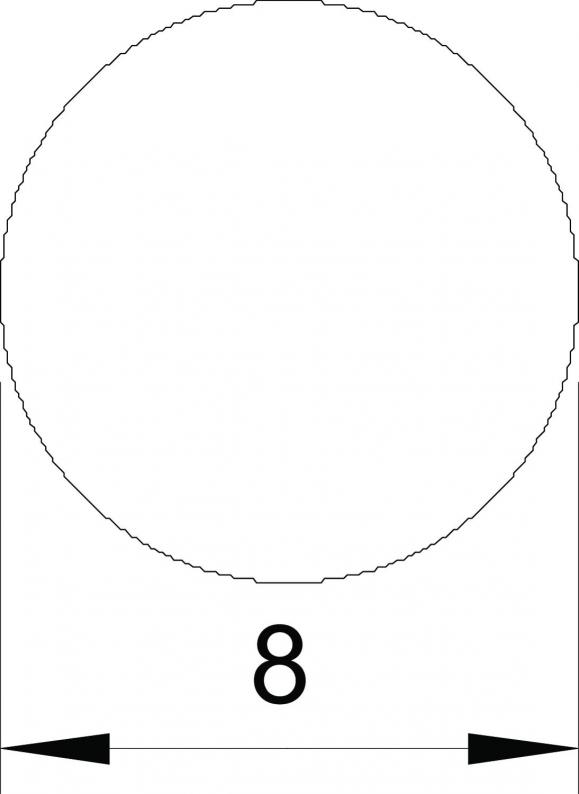

Dimensions
| Dimension D | 8 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
165 MBG-8-10
5218700
Smallest selling unit: 12 piece
12piece
Type
165 MBG-8-10
Smallest selling unit: 12 piece
12piece
Item no. 5317512
Folding and construction clampType
RSF 177 20 VA M8
Smallest selling unit: 50 piece
50piece
Variants
Type
Diameter
Normal ring (ca. kg)
Cross-section
Nomal ring (approx. m)
Material
Item no.
RD 8-ALU-T
8
20
50
150
Aluminium
5021294
RD 8-ALU-T 75
8
10
50
75
Aluminium
5021296
Normal ring
(ca. kg)
Nomal ring
(approx. m)
RD 8-ALU-T
Item no.
5021294
Diameter
8
Normal ring (ca. kg)
20
Cross-section
50
Nomal ring (approx. m)
150
Material
Aluminium
RD 8-ALU-T 75
Item no.
5021296
Diameter
8
Normal ring (ca. kg)
10
Cross-section
50
Nomal ring (approx. m)
75
Material
Aluminium
