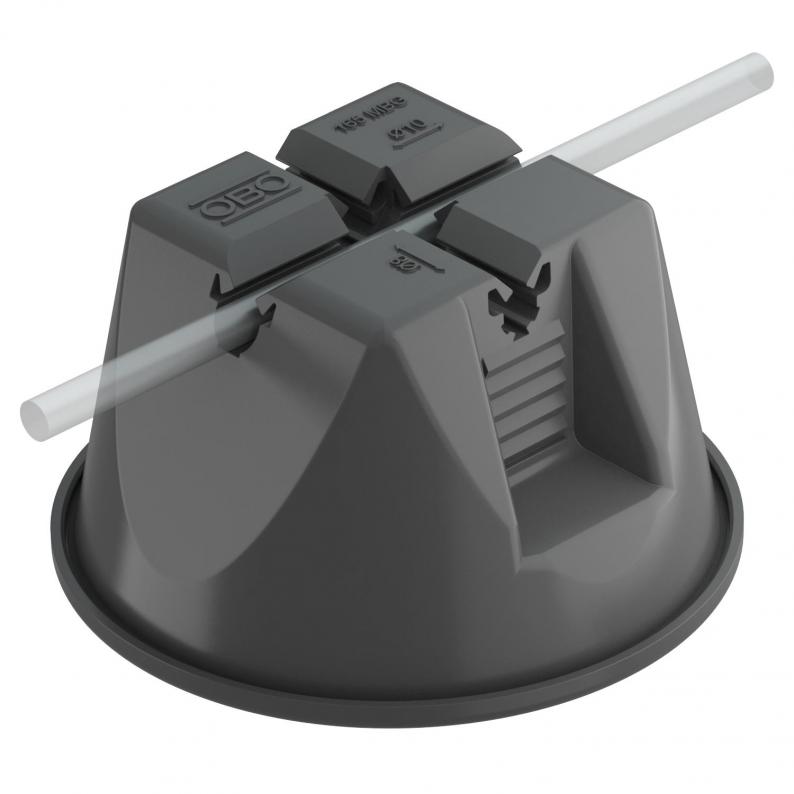

165 MBG... roof cable holder for flat roofs, black, with concrete
Type 165 MBG-8-10 | Item no. 5218700 | EAN 4012196648290
Item no. / Type
5218700 / 165 MBG-8-10
Smallest selling unit: 12 piece
12piece
Description
• Closed form with base
• With double conductor holder
• Filling weight 1 kg (frost-resistant concrete)
• Sleeve made of polyethylene, black, UV-resistant and weather-resistant
• Base made of polyamide PA 6, black, UV-resistant and weather-resistant
• Base can be used on almost all roofing felt systems (bitumen, PVC)
• Types 165 MBG...FO: Packed in foil bag
• With double conductor holder
• Filling weight 1 kg (frost-resistant concrete)
• Sleeve made of polyethylene, black, UV-resistant and weather-resistant
• Base made of polyamide PA 6, black, UV-resistant and weather-resistant
• Base can be used on almost all roofing felt systems (bitumen, PVC)
• Types 165 MBG...FO: Packed in foil bag
Technical data

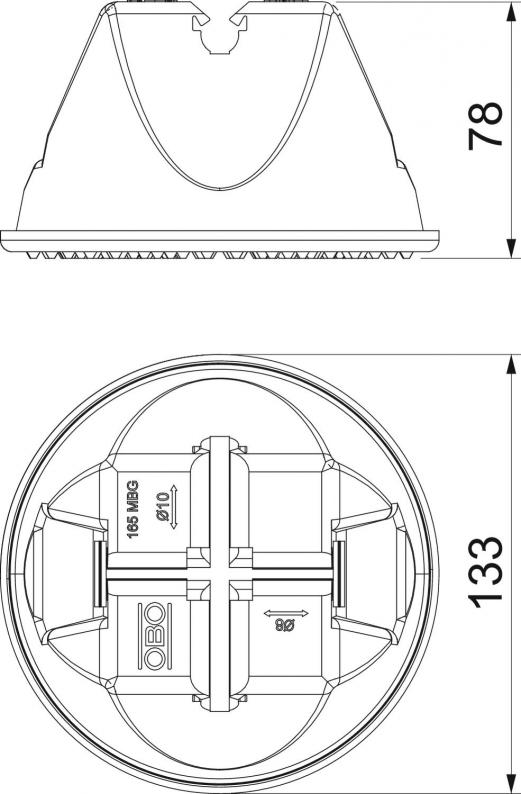

Dimensions
| Height | 78 mm |
|---|
Technical data
| Conductor diameter, max. | 10 |
|---|---|
| Conductor diameter, min. | 8 |
| Conductor fastening type | With clip |
| Application | Flat roof |
| Mounting type | Miscellaneous |
| Fit | Rd 8-10 mm |
| Clamping range D, max. | 10 mm |
| Clamping range D, min. | 8 mm |
| Dimension | 8-10mm |
| Material | Polyamide/Polyethylene |
| Colour | Black |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4786 kg CO2e / 1 Piece |
