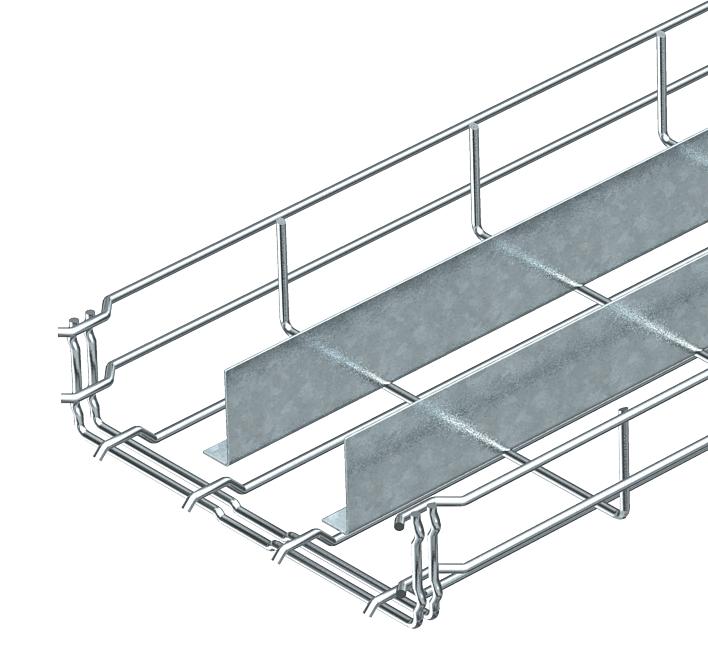

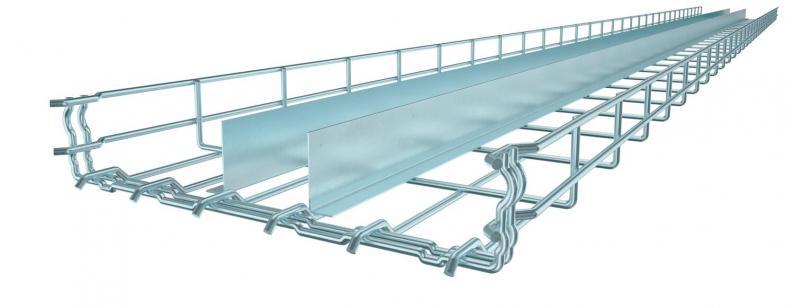

Mesh cable tray GR-Magic® 55 with 2 barrier strip
Type GRM-2T 55 200 G | Item no. 6006395 | EAN 4012195438649
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no
Smallest selling unit: 3 m
3m
Description
Mesh cable tray with shaped connector and two welded barrier strips of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 200 mm |
| Height | 55 mm |
| Dimension A | 69 mm |
| Dimension B | 200 mm |
| Dimension l1 | 69 mm |
| Dimension L2 (mm) | 69 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 87 cm² |
| Rustproof steel, pickled | no |
| Usable cross-section | 8700 mm² |
| Integrated partition | Two |
| Screwless connector | yes |
| Profile shape | U-shaped |
| Wire diameter | 3,9 mm |
| Dimension | 55x200x3000 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Click fastening |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,4531 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 0,4 kN/m |
|---|---|
| Support spacing 1.0 m | 2 kN/m |
| Support spacing 1.5 m | 1 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
