Mesh cable tray GR-Magic® 105 FT

Mesh cable tray GR-Magic® 105 FT

Type GRM 105 100 FT | Item no. 6002431 | EAN 4012196021239

Show all variants
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

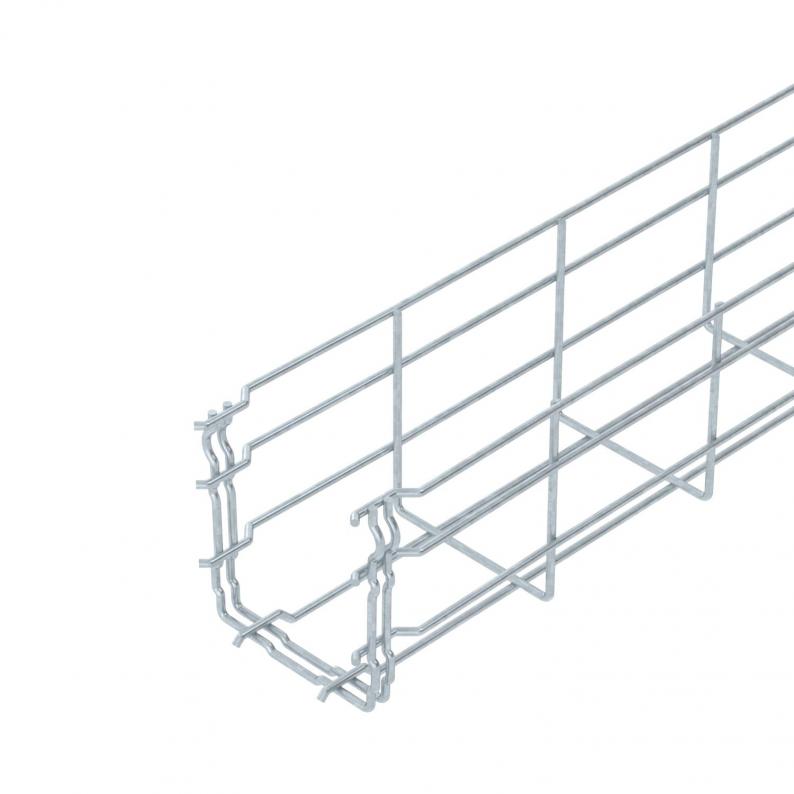

Mesh cable tray with shaped connector of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Underwriters Laboratories Inc., USA
  • Underwriters Laboratories Inc., USA
  • RINA 1861, Ship Classification, Certification and Services
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

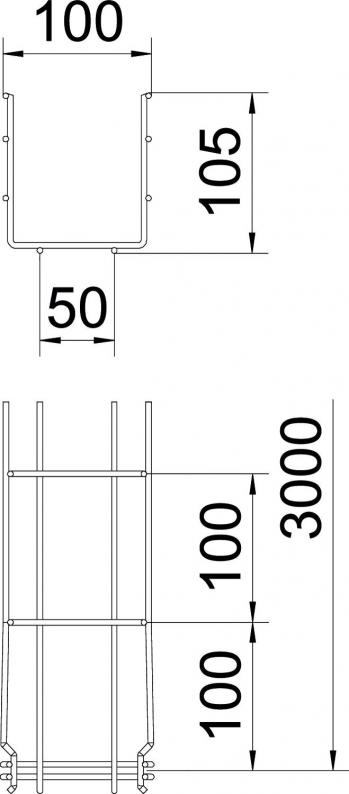

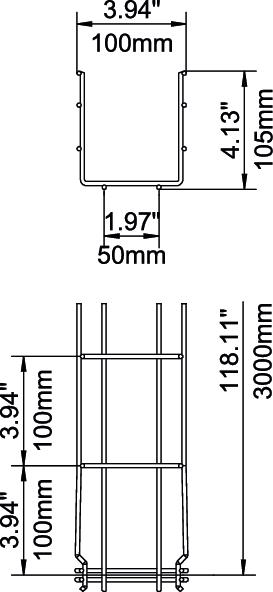

Dimensions

Length3000 mm
Width100 mm
Height105 mm
Dimension B100 mm
Dimension H108 mm

Technical data

Maintain electrical functionsno
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section82 cm²
Rustproof steel, pickledno
Usable cross-section8200 mm²
Integrated partitionWithout
Screwless connectoryes
Profile shapeU-shaped
Wire diameter3,9 mm
Dimension105x100x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate2,1665 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m0,37 kN/m
Support spacing 2.5 m0,27 kN/m
Support spacing 1.0 m0,8 kN/m
Support spacing 3.0 m0,25 kN/m
Support spacing 1.5 m0,55 kN/m
Load diagram, mesh cable tray, type GRM 105

Support width in m

Rail bend in mm at permitted kN/m

Permitted cable tray/ladder load in kN/m without man load

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (4)
Certificates (5)
Instructions and Aid (4)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories
Mounting accessories
Type
DGRR 100 FT

Smallest selling unit: 3 m

Item no. 6016723

Corner connector FT
Type
GEV 36 FT

Smallest selling unit: 20 piece

Variants

Width
Usable cross-section
Wire diameter
GRM 105 100 FT
Item no.
6002431
Length
3000
Width
100
Height
105
Maintain electrical functions
no
Usable cross-section
82
Wire diameter
3,9
GRM 105 200 FT
Item no.
6002435
Length
3000
Width
200
Height
105
Maintain electrical functions
no
Usable cross-section
175
Wire diameter
4,8
GRM 105 300 FT
Item no.
6002437
Length
3000
Width
300
Height
105
Maintain electrical functions
no
Usable cross-section
268
Wire diameter
4,8
GRM 105 400 FT
Item no.
6002439
Length
3000
Width
400
Height
105
Maintain electrical functions
no
Usable cross-section
363
Wire diameter
4,8
GRM 105 450 FT
Item no.
6002441
Length
3000
Width
450
Height
105
Maintain electrical functions
no
Usable cross-section
411
Wire diameter
4,8
GRM 105 500 FT
Item no.
6002443
Length
3000
Width
500
Height
105
Maintain electrical functions
no
Usable cross-section
459
Wire diameter
4,8
GRM 105 600 FT
Item no.
6002445
Length
3000
Width
600
Height
105
Maintain electrical functions
no
Usable cross-section
554
Wire diameter
4,8
