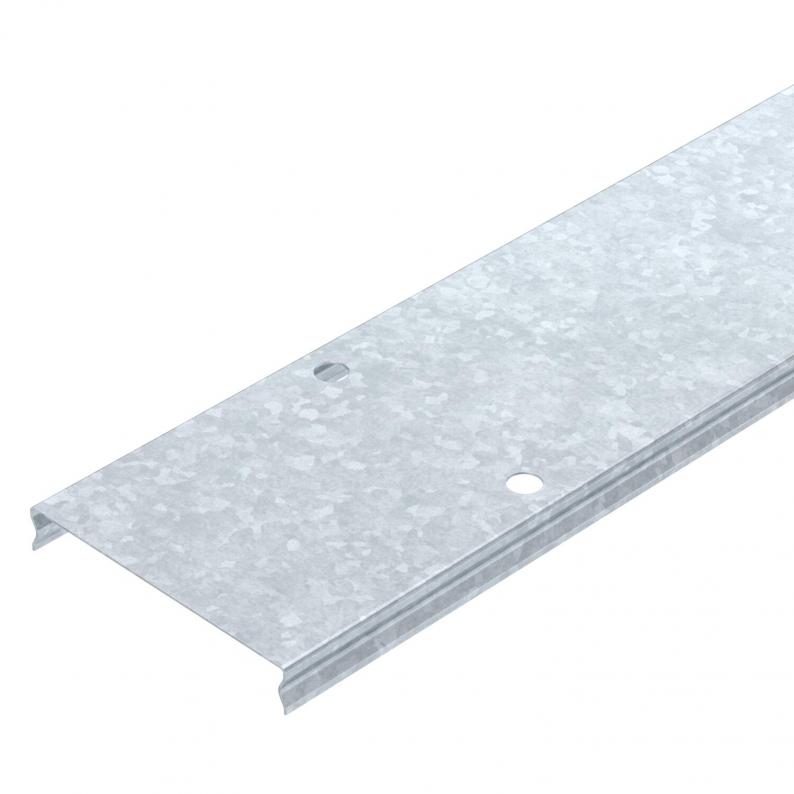

Cover for mesh cable tray, latchable FT

Cover for mesh cable tray, latchable FT

Type DGRR 100 FT | Item no. 6001822 | EAN 4012196687268

Show all variants
Item no. / Type
Length
Width
Plate thickness

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Lockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for industrial areas such as mechanical engineering.
When using covers outdoors, additional measures against the influence of wind may need to be taken.

With transverse bead from 400 mm width.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width98 mm
Height15 mm
Dimension B98 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness0,75 mm
Suitable for mesh cable trayyes
Suitable for cable ladderno
Suitable for cable trayno
Fastening typeLocking
Dimension100x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate2,1745 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Instructions and Aid (4)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Accessories

Mounting accessories
Type
DKU A2

Smallest selling unit: 20 piece

Variants

Width
DGRR 50 FT
Item no.
6001820
Length
3000
Width
50
Plate thickness
0,75
DGRR 100 FT
Item no.
6001822
Length
3000
Width
98
Plate thickness
0,75
DGRR 150 FT
Item no.
6001824
Length
3000
Width
148
Plate thickness
0,75
DGRR 200 FT
Item no.
6001826
Length
3000
Width
198
Plate thickness
0,75
DGRR 300 FT
Item no.
6001828
Length
3000
Width
298
Plate thickness
0,75
DGRR 400 FT
Item no.
6001830
Length
3000
Width
398
Plate thickness
0,75
DGRR 500 FT
Item no.
6001832
Length
3000
Width
498
Plate thickness
0,75
DGRR 600 FT
Item no.
6001834
Length
3000
Width
598
Plate thickness
0,75
