Magic add-on tee 60 FS
Type RAAM 610 FS | Item no. 6041230 | EAN 4012195878568
Item no. / Type
Width
Colour
zinc
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

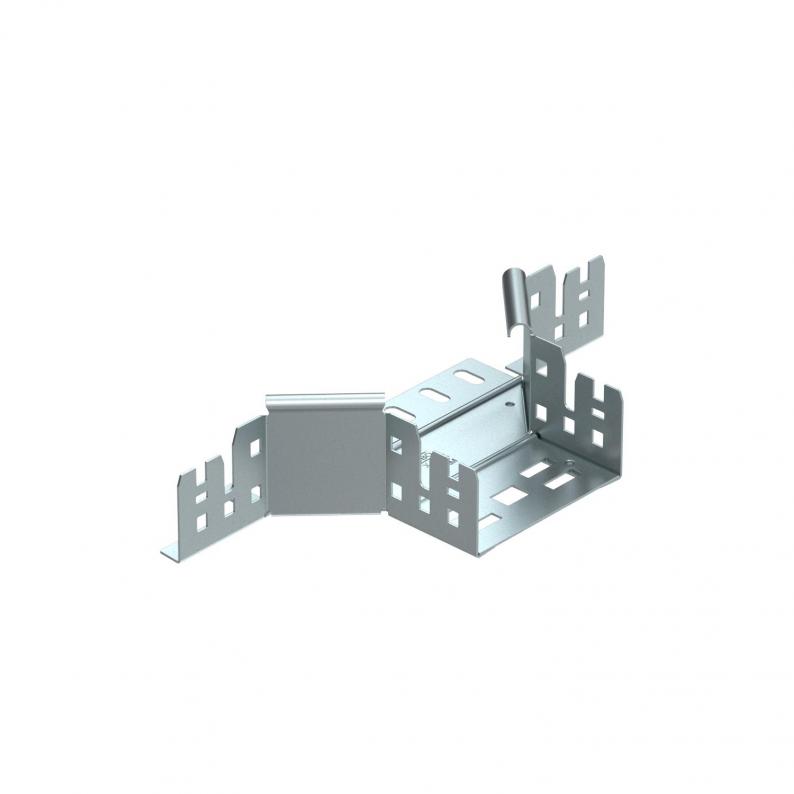

Magic add-on tee with quick connector system. For all cable tray types of 60 mm side height.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| NATO hole pattern | no |
| Material thickness, floor plate | 1,25 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Departing width | 100 mm |
| Dimension | 60x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Fire protection | Use of fire protection ceilings |
| Type of connector, cable support system | Click fastening |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,3374 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Colour
Item no.
RAAM 610 FS
100
zinc
6041230
RAAM 620 FS
200
zinc
6041234
RAAM 630 FS
300
zinc
6041236
RAAM 640 FS
400
zinc
6041238
RAAM 650 FS
500
zinc
6041240
RAAM 660 FS
600
6041242
Width
RAAM 610 FS
Item no.
6041230
Width
100
Colour
zinc
RAAM 620 FS
Item no.
6041234
Width
200
Colour
zinc
RAAM 630 FS
Item no.
6041236
Width
300
Colour
zinc
RAAM 640 FS
Item no.
6041238
Width
400
Colour
zinc
RAAM 650 FS
Item no.
6041240
Width
500
Colour
zinc
RAAM 660 FS
Item no.
6041242
Width
600
