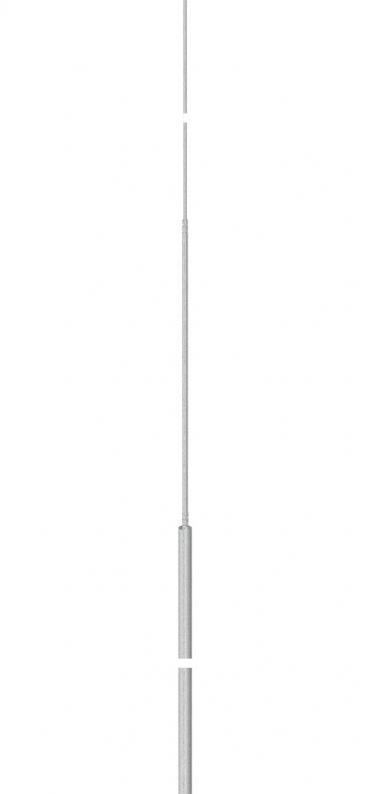

isFang air-termination rod
Type 101 3B-4000 | Item no. 5402864 | EAN 4012195674733
Item no. / Type
Length
Nominal size Ø
Smallest selling unit: 1 piece
1piece
Description
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Tapered air-termination rod
• Suitable for 40 mm isFang tripod stand and isFang support systems
• Tapered air-termination rod
• Suitable for 40 mm isFang tripod stand and isFang support systems
Technical data

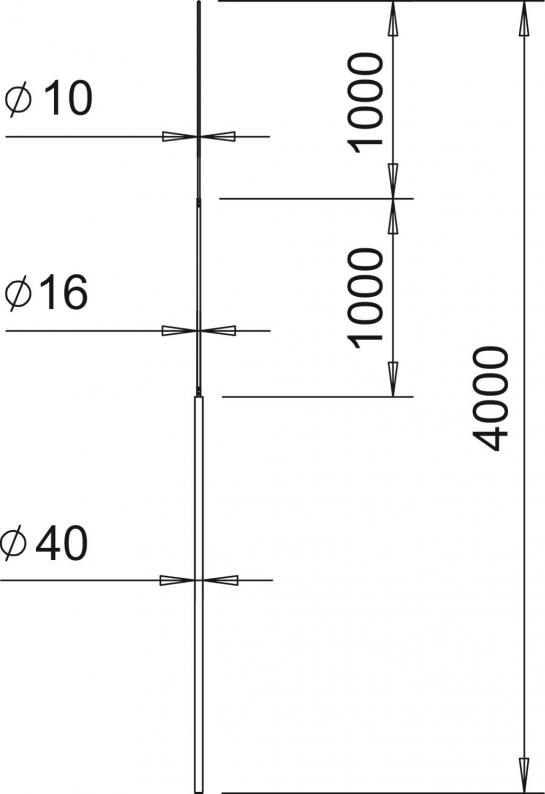

Dimensions
| Length | 4000 mm |
|---|---|
| Dimension B | 2000 mm |
| Dimension H | 1000 mm |
| Dimension D | 1000 mm |
Technical data
| Nominal size Ø | 40/ 16/ 10 mm |
|---|---|
| Diameter | 40 mm |
| High voltage-resistant, insulated version | no |
| Version for | Air-termination rod with stand |
| Dimension | 4000mm |
| Material | Aluminium |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (4)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 5403227
Concrete base for FangFix system, min. 16 kgType
F-FIX-S16
Smallest selling unit: 1 piece
1piece
Variants
Type
Length
Nominal size Ø
Item no.
101 3B-4000
4000
40/ 16/ 10
5402864
101 3B-4500
4500
40/ 16/ 10
5402866
101 3B-6000
6000
40/ 16/ 10
5402872
101 3B-6500
6500
40/ 16/ 10
5402874
101 3B-7000
7000
40/ 16/ 10
5402876
101 3B-8000
8000
40/ 16/ 10
5402880
Length
101 3B-4000
Item no.
5402864
Length
4000
Nominal size Ø
40/ 16/ 10
101 3B-4500
Item no.
5402866
Length
4500
Nominal size Ø
40/ 16/ 10
101 3B-6000
Item no.
5402872
Length
6000
Nominal size Ø
40/ 16/ 10
101 3B-6500
Item no.
5402874
Length
6500
Nominal size Ø
40/ 16/ 10
101 3B-7000
Item no.
5402876
Length
7000
Nominal size Ø
40/ 16/ 10
101 3B-8000
Item no.
5402880
Length
8000
Nominal size Ø
40/ 16/ 10
