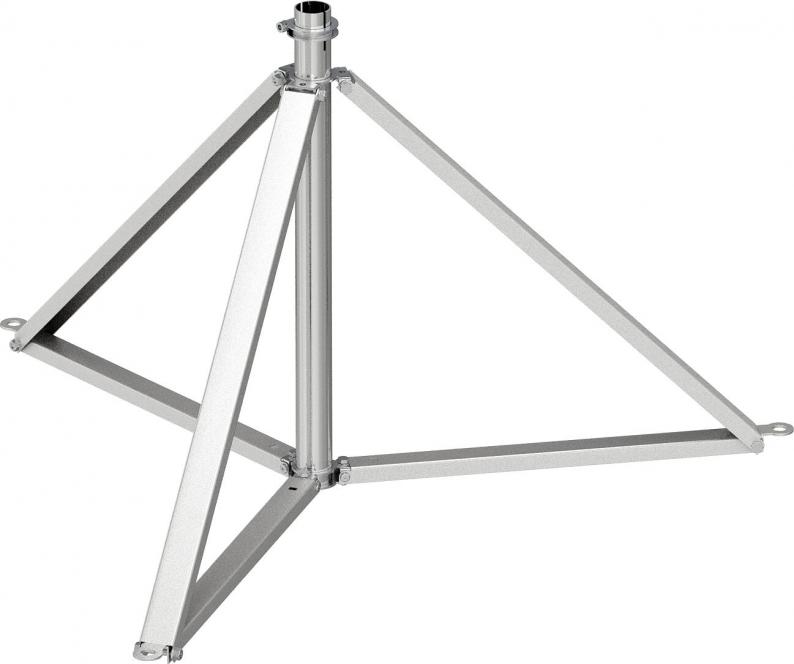

isFang tripod

isFang tripod

Type isFang 3B-100 AL | Item no. 5408966 | EAN 4012195802433

Show all variants
Item no. / Type
Dimension L
Dimension B
Dimension H
Dimension d min.
Material

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

• Installation of free-standing air-termination rods as well as insulated air-termination rods with 40 mm diameter
• Roof slope to max. 5 degrees
• Incl. Rd 8–10 crossbar for quick round conductor fastening
• Concrete base as well as threaded rods should be ordered separately
  • Lightning current-tested
  • CO₂ footprint (PCF)

Technical data

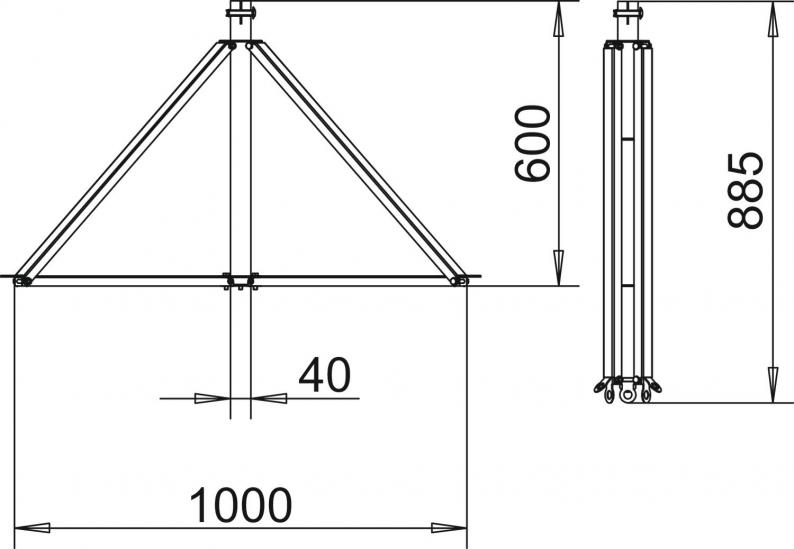

Dimensions

Length600 mm
Width1000 mm
Height885 mm
Dimension L600 mm
Dimension B1000 mm
Dimension H885 mm
Dimension d min.40 mm

Technical data

Diameter1000 mm
Air-termination rod holderScrewless
Version forStand
Dimension1,25x1,35m
MaterialAluminium
CO2 Footprint (GWP) Cradle-to-Gate18,7716 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (3)
Tender specifications (2)

Variants

Dimension L
Dimension B
Dimension H
Material
isFang 3B-100 AL
Item no.
5408966
Dimension L
600
Dimension B
1000
Dimension H
885
Dimension d min.
40
Material
Aluminium
isFang 3B-150 AL
Item no.
5408967
Dimension L
900
Dimension B
1500
Dimension H
1275
Dimension d min.
40
Material
Aluminium
isFang 3B-100
Item no.
5408968
Dimension L
600
Dimension B
1000
Dimension H
885
Dimension d min.
40
Material
Stainless steel 1.4301
isFang 3B-150
Item no.
5408969
Dimension L
900
Dimension B
1500
Dimension H
1275
Dimension d min.
40
Material
Stainless steel 1.4301
