Clamp clip, single, A2 plastic pressure trough
Type 2056U 64 A2
|Item no. 1178601
|EAN 4012195075134
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 15 piece
15piece
piece
Description
Suitable for all C profile rails with slot width 18 mm and 22 mm.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Technical data
Technical data
| For pipe diameter, min. | 63 mm |
|---|---|
| For pipe diameter, max. | 63 mm |
| for rail with slot width (with interval), min. | 18 mm |
| for rail with slot width (with interval), max. | 22 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 1 |
| Surface addition | Untreated |
| Material addition | Rustproof steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Profile rail |
| for 1 cable H | 97 mm |
| for 1 cable L | 38,5 |
| Clamping range D, min. | 58 mm |
| Clamping range D, max. | 64 mm |
| Dimension | 58-64mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |

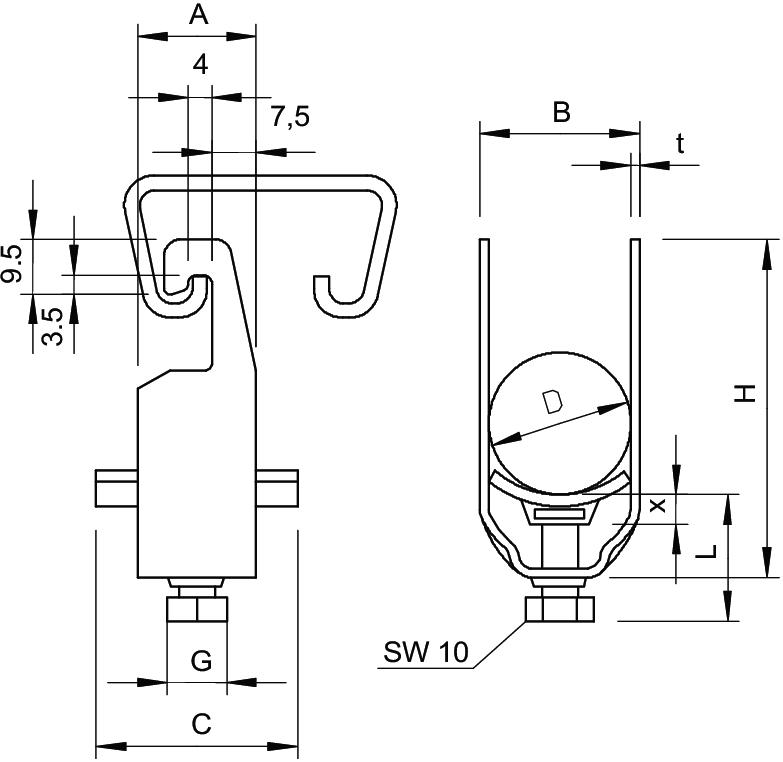

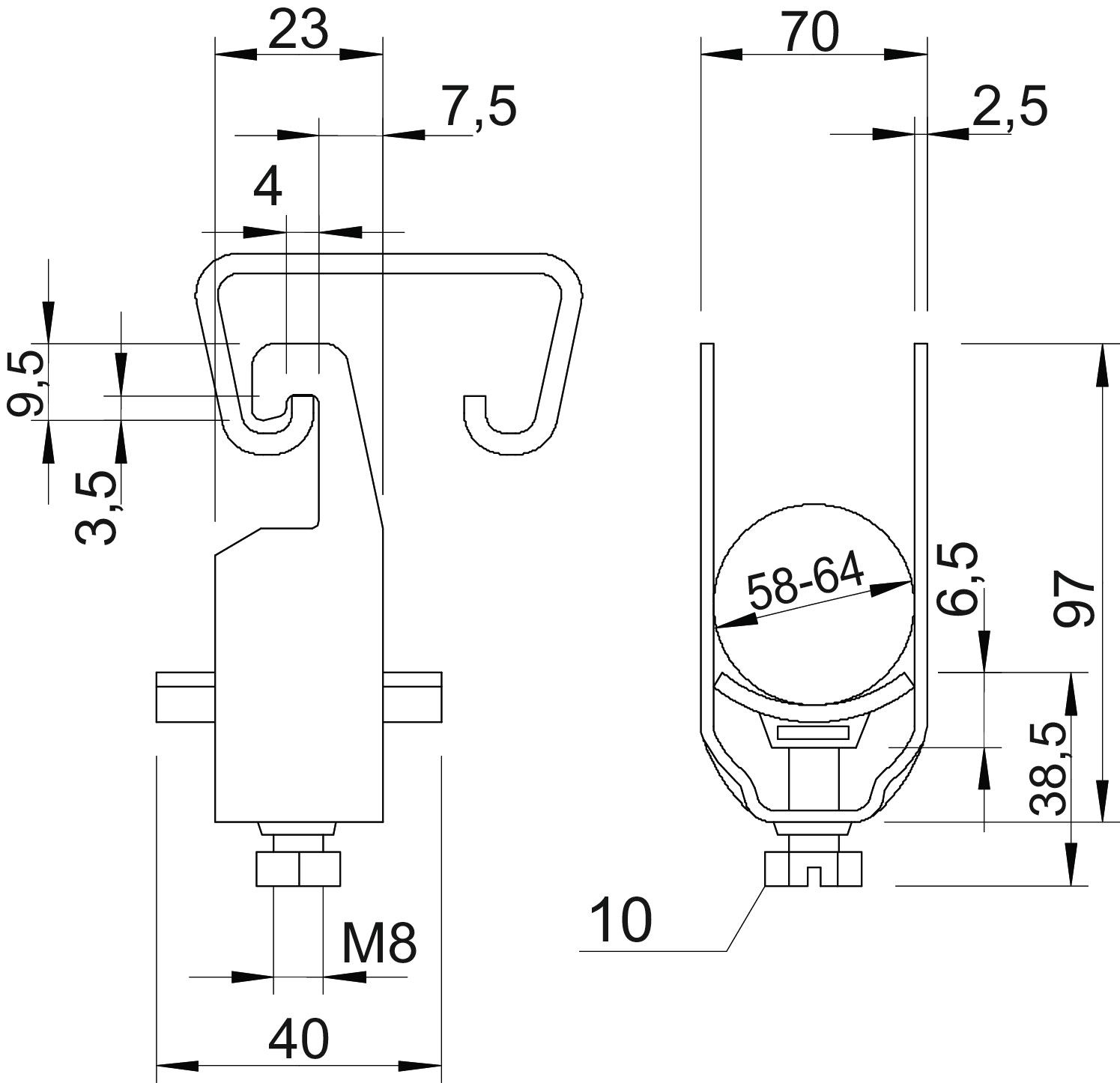

Dimensions
| Dimension L | 38,5 mm |
|---|---|
| Dimension A | 23 mm |
| Dimension B | 70 mm |
| Dimension H | 97 mm |
| Dimension t | 2,5 mm |
| Dimension C | 40 mm |
| Dimension x | 6,5 mm |
| Dimension G (mm) | M8 |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7009 kg CO₂e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056U 12 A2
3
8
12
1178504
2056U 16 A2
3
12
16
1178512
2056U 22 A2
3
16
22
1178520
2056U 28 A2
3
22
28
1178539
2056U 34 A2
5
28
34
1178547
2056U 40 A2
5
34
40
1178555
2056U 46 A2
5
40
46
1178563
2056U 52 A2
5
46
52
1178571
2056U 58 A2
5
52
58
1178598
2056U 64 A2
5
58
64
1178601
2056U 70 A2
5
64
70
1178628
2056U 76 A2
5
70
76
1178636
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056U 12 A2
Item no.
1178504
Max. Tightening torque
3
Clamping range D, min.
8
Clamping range D, max.
12
2056U 16 A2
Item no.
1178512
Max. Tightening torque
3
Clamping range D, min.
12
Clamping range D, max.
16
2056U 22 A2
Item no.
1178520
Max. Tightening torque
3
Clamping range D, min.
16
Clamping range D, max.
22
2056U 28 A2
Item no.
1178539
Max. Tightening torque
3
Clamping range D, min.
22
Clamping range D, max.
28
2056U 34 A2
Item no.
1178547
Max. Tightening torque
5
Clamping range D, min.
28
Clamping range D, max.
34
2056U 40 A2
Item no.
1178555
Max. Tightening torque
5
Clamping range D, min.
34
Clamping range D, max.
40
2056U 46 A2
Item no.
1178563
Max. Tightening torque
5
Clamping range D, min.
40
Clamping range D, max.
46
2056U 52 A2
Item no.
1178571
Max. Tightening torque
5
Clamping range D, min.
46
Clamping range D, max.
52
2056U 58 A2
Item no.
1178598
Max. Tightening torque
5
Clamping range D, min.
52
Clamping range D, max.
58
2056U 64 A2
Item no.
1178601
Max. Tightening torque
5
Clamping range D, min.
58
Clamping range D, max.
64
2056U 70 A2
Item no.
1178628
Max. Tightening torque
5
Clamping range D, min.
64
Clamping range D, max.
70
2056U 76 A2
Item no.
1178636
Max. Tightening torque
5
Clamping range D, min.
70
Clamping range D, max.
76
